For Smaller Wire Barrel Terminals
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Insulated Terminal Crimpers |
| Cable Type | Insulated Terminals And Lugs |
| Connection | Solid Or Stranded Wire, 26 - 14 AWG (0.100 - 2.500 SQ-MM) |
| Crimp Size | <ul><li>16-14 AWG (1.500 - 2.500 SQ-MM) Blue</li><li> 22-18 AWG (0.340 - 0.750 SQ-MM) Red</li><li> 22-26 AWG (0.340 - 0.100 SQ-MM) Yellow</li></ul> |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA2029 CrimpALL Insulated Terminal Crimping Die

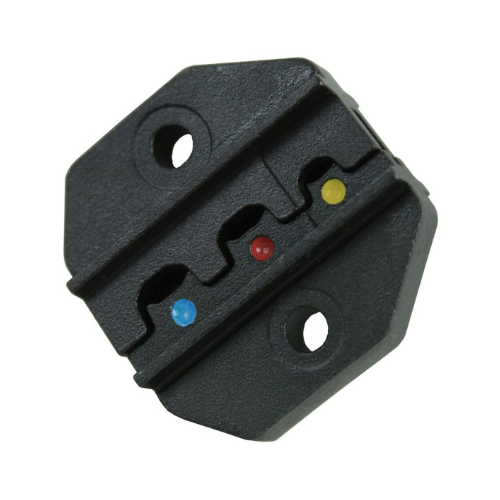

What is the Tempo PA2029 CrimpALL Crimping Die used for?
The Tempo PA2029 is an interchangeable crimping die designed for smaller wire barrel insulated terminals and lugs. It provides precise crimping capabilities for electrical wiring, telecommunications, and other applications requiring secure insulated terminal connections.
What wire sizes and terminals are compatible with the Tempo PA2029?
The PA2029 accommodates 26 to 14 AWG solid or stranded wire, equivalent to approximately 0.10 to 2.5 mm². It is designed for insulated terminals and lugs, making it suitable for technicians working with smaller wire barrel connections.
What crimp sizes does the Tempo PA2029 support?
The PA2029 features three crimping ranges: 16 to 14 AWG (blue), 22 to 18 AWG (red), and 26 to 22 AWG (yellow). As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools for different insulated terminal applications.
At a Glance
• Interchangeable CrimpALL die designed for smaller wire barrel insulated terminals and lugs
• Accommodates 26 to 14 AWG solid and stranded wire (0.10 to 2.5 mm²)
• Blue crimping range supports 16 to 14 AWG wire (1.5 to 2.5 mm²)
• Red crimping range supports 22 to 18 AWG wire (0.34 to 0.75 mm²)
• Yellow crimping range supports 26 to 22 AWG wire (0.10 to 0.34 mm²)
• Blister-packaged die for use with compatible Tempo CrimpALL crimping tools
