For Standard Commercial Terminals
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Open Barrel, Box And Terminal Systems |
| Cable Type | Open Barrel Non-Insulated Terminals, Wide Lugs And Power Contacts |
| Connection | Solid Or Stranded Wire, 22 - 14 AWG (0.340 - 2.500 SQ-MM), F Type |
| Crimp Size | 16-14/22-18 AWG (1.500 - 2.500/0.340 - 0.750 SQ-MM) |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |

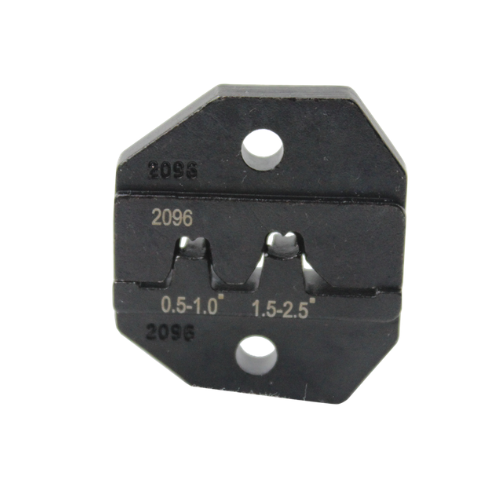

Common Questions About the Tempo PA2096 CrimpALL Open Barrel Crimping Die
What is the Tempo PA2096 CrimpALL Crimping Die used for?
The Tempo PA2096 is an interchangeable crimping die designed for standard commercial open barrel terminals, box and terminal systems, wide lugs, and power contacts. It provides crimping capabilities for electrical wiring and terminal connection applications using compatible CrimpALL crimping tools.
What wire sizes and terminals are compatible with the Tempo PA2096?
The PA2096 accommodates 22 to 14 AWG solid or stranded wire, equivalent to approximately 0.34 to 2.5 mm². It features crimping ranges of 22 to 18 AWG and 16 to 14 AWG for non-insulated open barrel terminals and compatible F-type connections.
Can the Tempo PA2096 Crimping Die be used with CrimpALL tools?
Yes. The PA2096 is part of the Tempo CrimpALL interchangeable die system, allowing technicians to change crimping dies for different terminal and connector applications. Its interchangeable design provides versatility when working with multiple wire sizes and terminal types.
At a Glance
• Interchangeable CrimpALL die for standard commercial open barrel terminals
• Accommodates 22 to 14 AWG solid and stranded wire (0.34 to 2.5 mm²)
• Crimping ranges include 22 to 18 AWG and 16 to 14 AWG
• Designed for non-insulated open barrel terminals, wide lugs, and power contacts
• Suitable for compatible F-type connections and box and terminal systems
• Blister-packaged replacement die for compatible Tempo CrimpALL crimping tools
