For Standard Commercial Terminals
| Attribute name | Attribute Value |
|---|---|
| Application | For Open Barrel, Box And Terminal Systems |
| Cable Type | Open Barrel Non-Insulated Terminals, Narrow Lugs And Power Contacts |
| Connection | Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM), F Type |
| Crimp Size | 22-18 AWG (0.340 - 0.750 SQ-MM), 16-14 AWG (1.500 - 2.500 SQ-MM), 12-10 AWG (4.000 - 6.000 SQ-MM) |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |

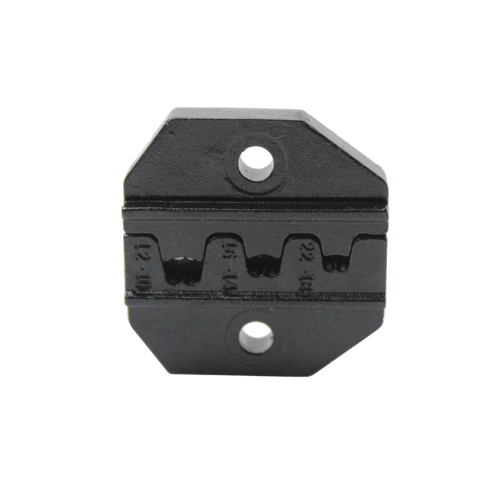

Common Questions About the Tempo PA2033 CrimpALL Open Barrel Crimping Die
What is the Tempo PA2033 CrimpALL Crimping Die used for?
The Tempo PA2033 is an interchangeable crimping die designed for standard commercial open barrel terminals, narrow lugs, and power contacts. It provides precise crimping capabilities for electrical wiring, telecommunications, and other applications requiring secure, non-insulated terminal connections.
What wire sizes and terminals are compatible with the Tempo PA2033?
The PA2033 accommodates 22 to 10 AWG solid or stranded wire, equivalent to approximately 0.34 to 6.0 mm². It is designed for non-insulated open barrel terminals, narrow lugs, power contacts, and compatible F-type terminal connections.
What crimp sizes does the Tempo PA2033 support?
The PA2033 features three crimping ranges: 22 to 18 AWG (0.34 to 0.75 mm²), 16 to 14 AWG (1.5 to 2.5 mm²), and 12 to 10 AWG (4.0 to 6.0 mm²). As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools for different terminal applications.
At a Glance
• Interchangeable CrimpALL die designed for standard commercial open barrel terminals
• Accommodates 22 to 10 AWG solid and stranded wire (0.34 to 6.0 mm²)
• Supports non-insulated open barrel terminals, narrow lugs, and power contacts
• Compatible with applicable F-type terminal connections and box and terminal systems
• Features three crimping ranges: 22–18, 16–14, and 12–10 AWG
• Blister-packaged die for use with compatible Tempo CrimpALL crimping tools
