Kings, ADC, B&L, Trompeter, Amphenol, Switcraft
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Coaxial Connectors |
| Cable Type | Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, 179DT |
| Connection | HDYV BNC/TNC True 75-ohm |
| Crimp Size | 0.178 IN (4.500 MM), 0.255 IN (6.500 MM), 0.278 IN (7.000 MM), 0.068 IN (1.700 MM), 0.041IN (1.000 MM) HEX |
| Sub Brand | CrimpALL® |
| Type | Interchangeable, 1300/8000 HDTV Universal |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA2699 CrimpALL Universal HDTV Coaxial Crimping Die
What is the Tempo PA2699 CrimpALL Crimping Die used for?

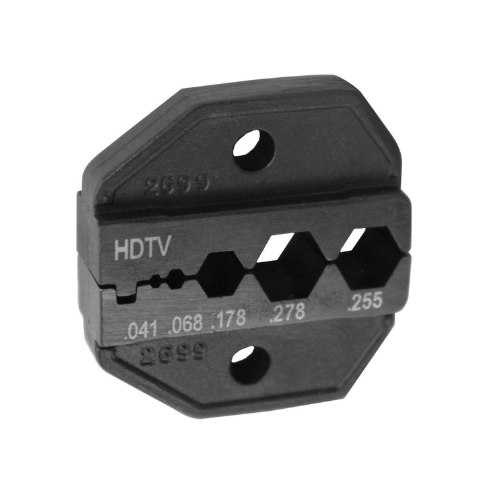

The Tempo PA2699 is an interchangeable universal HDTV crimping die designed for installing true 75-ohm BNC and TNC coaxial connectors. It supports professional broadcast, HDTV, telecommunications, and video cable installations requiring precise, consistent connector crimping.
What cable types and connectors are compatible with the Tempo PA2699?
The PA2699 is designed for Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, and 179DT coaxial cables. It supports compatible true 75-ohm HDTV BNC/TNC connectors from manufacturers including Kings, ADC, B&L, Trompeter, Amphenol, and Switchcraft.
What crimp sizes and crimping tools are compatible with the Tempo PA2699?
The PA2699 features five hexagonal crimp sizes: 0.178 inch (4.5 mm), 0.255 inch (6.5 mm), 0.278 inch (7.0 mm), 0.068 inch (1.7 mm), and 0.041 inch (1.0 mm). Its interchangeable design is intended for compatible Tempo 1300 Series and CrimpALL 8000 Series crimping frames.
At a Glance
• Universal HDTV crimping die for true 75-ohm BNC and TNC coaxial connectors
• Compatible with Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, and 179DT cables
• Supports compatible connectors from Kings, ADC, B&L, Trompeter, Amphenol, and Switchcraft
• Features five hexagonal crimp sizes: 0.178, 0.255, 0.278, 0.068, and 0.041 inch
• Interchangeable design for compatible Tempo 1300 and CrimpALL 8000 Series crimping frames
• Ideal for professional HDTV, broadcast video, telecommunications, and coaxial cable installations
