TEMPO | CST Vario Coax Stripper | #PA3240
TEMPO COMMUNICATIONS | PART #PA3240

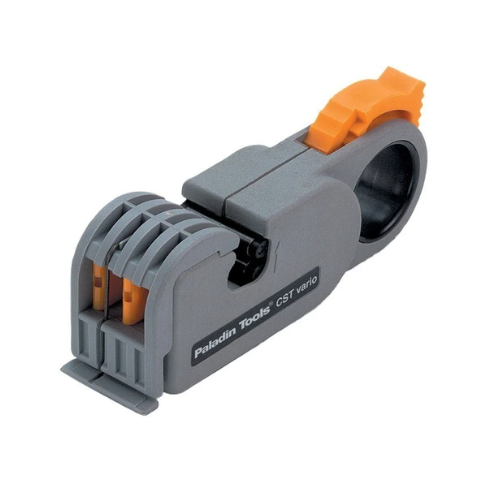

CST Vario Coax Stripper
DESCRIPTION
- Most flexible coax stripping tool on the market
- Easy to set up and adjust
- Two- and three-level stripping
- Minimum center-to-center strip length is 0.13 IN (3.2 mm)
- Maximum total strip lengthis 0.67 IN (17 mm)
- Adjustable blade positioning in 0.04 IN (1 mm) increments
- Lifetime warranty on frame only
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | Most Flexible Coax Stripping Tool On The Market |
| Blade Type | Adjustable |
| Overall Length | 4.570 IN (116.000 MM) |
| Replacement Part | PA3242 Replacement Blade Holder, Blades And Allen Hex Key |
| Stripping Length | 0.130 IN (3.200 MM) Minimum Center-To-Center, 0.670 IN (17.000 MM) Maximum |
| Type | CST Vario |
| Weight | 2.800 OZ (79.000 G) |
| Item Status Date | 01012009 |
| Country of Origin | DE |
| UNSPSC | 43223312 |
| International Harmonize Code | 8205595510 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA3240 CST Vario Coax Stripper
What is the Tempo PA3240 CST Vario Coax Stripper used for?
The Tempo PA3240 is designed for flexible, precise preparation of coaxial cable, with adjustable settings that support both two and three level stripping applications.
How adjustable is the Tempo PA3240 CST Vario Coax Stripper?
The PA3240 allows blade positioning in 0.04 inch, or 1 mm, increments, giving technicians precise control over the stripping configuration for different applications.
What strip lengths can the Tempo PA3240 accommodate?
The PA3240 supports a minimum center to center strip length of 0.13 inches, or 3.2 mm, and a maximum total strip length of 0.67 inches, or 17 mm.
At a Glance
• Adjustable CST Vario tool for precise coaxial cable stripping
• Supports both two and three level stripping configurations
• Blade positioning adjusts in 0.04 inch, or 1 mm, increments
• Minimum center to center strip length of 0.13 inches
• Maximum total strip length of 0.67 inches
• Easy to set up and adjust for different coax stripping applications
