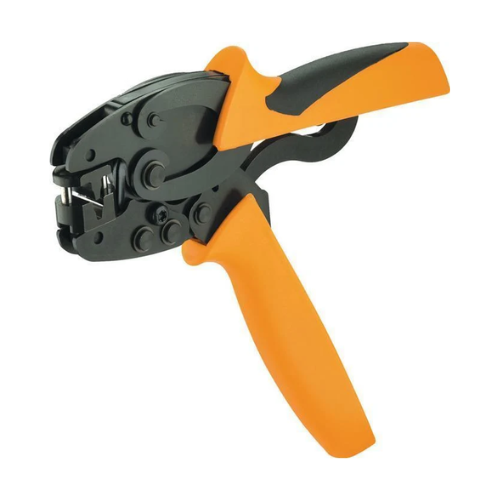

TEMPO | Crimper PZ6 Roto | #PA901435
TEMPO COMMUNICATIONS | PART #PA901435
Crimper PZ6 Roto
DESCRIPTION
- Professional-quality rotary crimping tool for insulated and non-insulated wire ferrules with a wire range of 24-10 AWG (0.25-6.0 mm2)
- Rotating die for front or side ferrule insertion
- Crimps conform to EN 60947-1 & DIN 46228 Pt. 1 and 4
- Hardened steel die system for long life
- Single tool for entire wire range (no additional dies are required)
- Durable steel construction for long life
- Ergonomic handles for low-effort operation
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Insulated And Non-Insulated Wire Ferrules With A Wire Range Of 24-10 AWG (0.250 - 6.000 SQ-MM) |
| Crimping Range | 24-10 AWG |
| Handle Type | Ergonomic |
| Material | Durable Steel |
| Standard | DIN, EN |
| Type | PZ 6 ROTO Wire Ferrule |
| Weight | 13.000 OZ (368.000 GM) |
| Item Status Date | 04302010 |
| Country of Origin | DE |
| UNSPSC | 43223313 |
| International Harmonize Code | 8203206060 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA901435 PZ6 Roto Crimper
What is the Tempo PA901435 PZ6 Roto Crimper used for?
The Tempo PA901435 is a professional crimping tool designed for insulated and non-insulated wire ferrules ranging from 24 to 10 AWG.
What is the advantage of the rotating die on the PZ6 Roto Crimper?
The rotating die allows ferrules to be inserted from either the front or side, giving technicians greater flexibility when working in tight or difficult spaces.
Does the Tempo PA901435 require additional crimping dies?
No. The PZ6 Roto handles the full 24 to 10 AWG wire range with a single die system, eliminating the need to purchase or change additional dies.
At a Glance
• Professional crimping tool for insulated and non-insulated wire ferrules
• Crimping range from 24 to 10 AWG, or 0.25 to 6.0 mm²
• Rotating die allows front or side ferrule insertion
• Single tool covers the entire wire range with no additional dies required
• Hardened steel die system and durable steel construction for long service life
• Ergonomic handles provide comfortable, low effort operation
