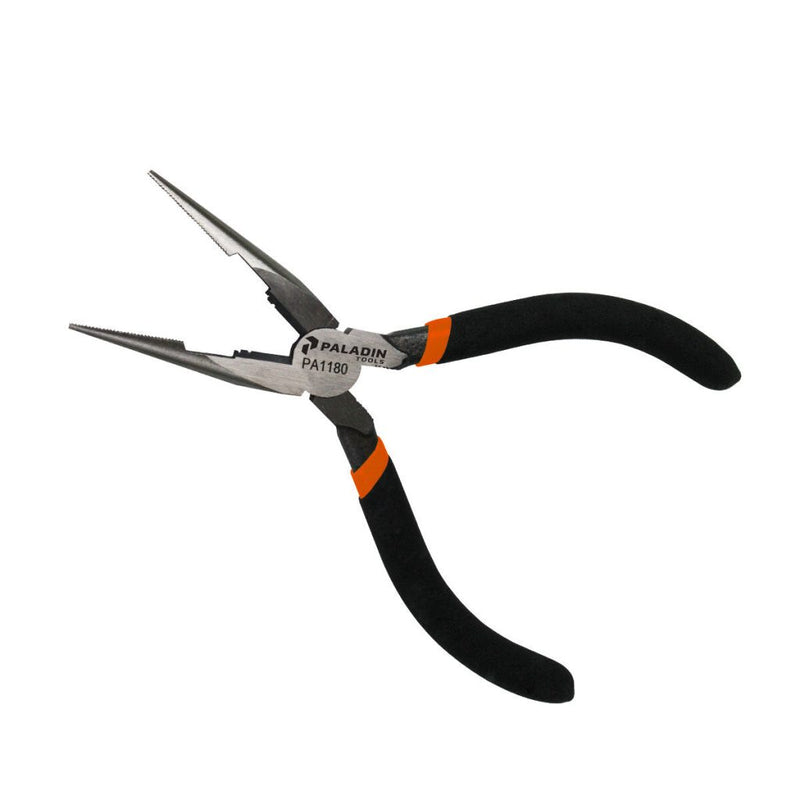

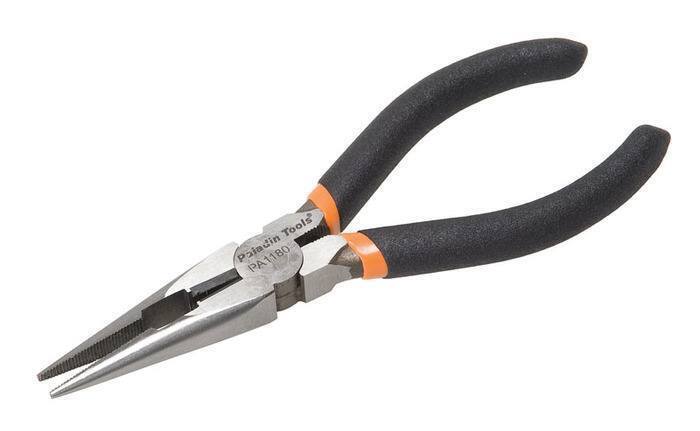

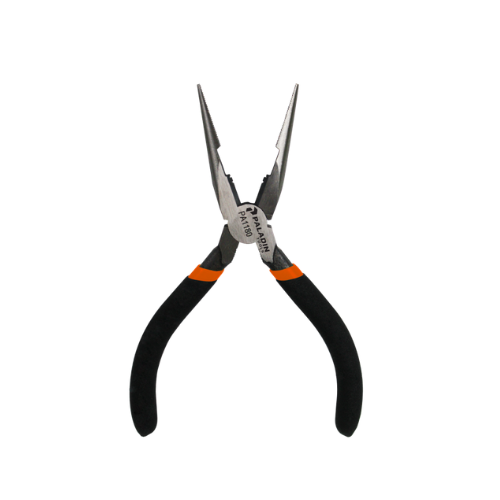

TEMPO | CRIMPER, NEEDLE NOSE, BUTTON SPLICE | #PA1180
TEMPO COMMUNICATIONS | PART #PA1180
CRIMPER, NEEDLE NOSE, BUTTON SPLICE
DESCRIPTION
- Side cutter for AWG 19-26 copper
- Non-slip grips for precision control
- Crimp capacity
- UR: AWG 19-26
- UY: AWG 22-26
- UG: AWG 19-26
- Stripping cavity for AWG 22 wire
- Needle-nose with knurled surface for gripping, wrapping and looping
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For AWG 19-26 Copper, AWG 22 Wire |
| Construction | Needle-nose with knurled surface for gripping, wrapping and looping |
| Crimping Range | UR: 19-26 AWG, UY: 22-26 AWG, UG: 19-26 AWG |
| Handle Type | Non-Slip |
| Type | 4-in-1 Telecom Splice |
| Item Status Date | 04282010 |
| Country of Origin | TW |
| UNSPSC | 43223313 |
| International Harmonize Code | 8203206030 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA1180 Needle Nose Telecom Splice Crimper
What is the Tempo PA1180 Needle Nose Telecom Splice Crimper used for?
The Tempo PA1180 is a 4-in-1 telecom splice crimper designed for crimping UR, UY, and UG button splice connectors used in copper telecommunications wiring. It combines crimping, cutting, stripping, and gripping functions in one versatile tool for telecom installation and maintenance.
What wire sizes and splice connectors are compatible with the Tempo PA1180?
The PA1180 supports 19 to 26 AWG copper wire with UR and UG connectors and 22 to 26 AWG wire with UY connectors. It also includes a dedicated stripping cavity for 22 AWG wire and an integrated side cutter for 19 to 26 AWG copper conductors.
Does the Tempo PA1180 include needle nose pliers for gripping and wire preparation?
Yes. The PA1180 features needle nose jaws with a knurled gripping surface designed for gripping, wrapping, and looping wire. Its non-slip handles provide additional comfort and control during telecommunications wiring and splice preparation.
At a Glance
• Professional 4-in-1 telecom splice crimper for UR, UY, and UG button splice connectors
• Crimps UR and UG connectors on 19 to 26 AWG copper wire
• Crimps UY connectors on 22 to 26 AWG copper wire
• Integrated side cutter for 19 to 26 AWG copper wire and stripping cavity for 22 AWG wire
• Knurled needle nose jaws provide secure gripping, wrapping, and looping
• Non-slip grips offer precise control during telecom installation and maintenance
