TEMPO | Crimper 1300 Mini-Coaxial | #PA1363
TEMPO COMMUNICATIONS | PART #PA1363

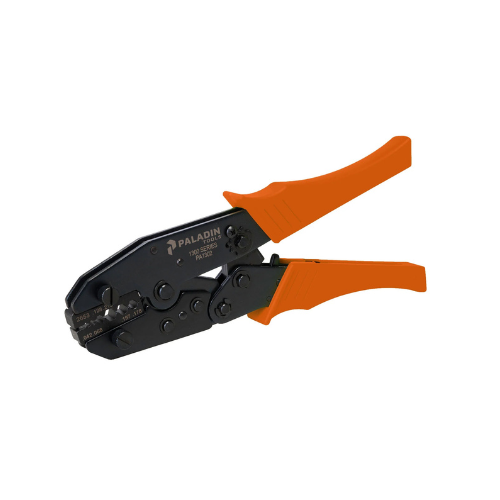

Crimper 1300 Mini-Coaxial
DESCRIPTION
TOOL WITH DIE
| Attribute name | Attribute Value |
|---|---|
| Cable Type | RG58, Mini-59, RG-174, Small Coaxial |
| Connection | SMA, SMB, Mini-59 BNC/TNC, Mini-UHF |
| Crimping Range | 0.128 IN (3.200 MM), 0.213 IN (5.400 MM), 0.197 IN (5.000 MM), 0.178 IN (4.500 MM), 0.068 IN (1.700 MM) Hex And 0.042 IN (1.000 MM) SQ |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223313 |
| International Harmonize Code | 8203206060 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA1363 CrimpALL 1300 Series Mini-Coaxial Crimper
What is the Tempo PA1363 Mini-Coaxial Crimper used for?
The Tempo PA1363 is a professional crimping tool designed for terminating connectors on miniature and small-diameter coaxial cables. It is suitable for telecommunications, RF connections, video equipment, and electronic applications that require precise crimp terminations on compact coaxial connectors.
What cable types and connectors are compatible with the Tempo PA1363?
The PA1363 supports RG58, Mini-59, RG-174, and other compatible small coaxial cables. It is designed for use with compatible SMA, SMB, Mini-59 BNC/TNC, and Mini-UHF connectors, providing versatility for technicians working with different coaxial cable and connector configurations.
What crimp sizes are supported by the Tempo PA1363 Mini-Coaxial Crimper?
The PA1363 includes a crimping die with five hex crimp sizes: 0.128 inches (3.2 mm), 0.213 inches (5.4 mm), 0.197 inches (5.0 mm), 0.178 inches (4.5 mm), and 0.068 inches (1.7 mm). It also provides a 0.042-inch (1.0 mm) square crimp cavity for compatible connector contacts, allowing technicians to perform multiple crimping applications with one tool.
At a Glance
• Professional CrimpALL 1300 Series crimping tool for miniature coaxial connectors
• Compatible with RG58, Mini-59, RG-174, and other supported small coaxial cables
• Supports compatible SMA, SMB, Mini-59 BNC/TNC, and Mini-UHF connectors
• Five hex crimp sizes: 0.128, 0.213, 0.197, 0.178, and 0.068 inches
• Includes a 0.042-inch square crimp cavity for compatible connector contacts
• Complete crimping tool with die included for telecommunications, RF, and video cable applications
