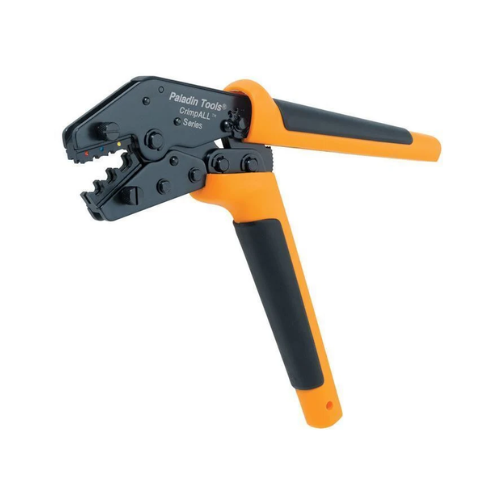

TEMPO | Crimpall Insul Term AWG 22-12 Clamshell | #PA8022
TEMPO COMMUNICATIONS | PART #PA8022
Crimpall Insul Term AWG 22-12 Clamshell
DESCRIPTION
TOOL WITH DIE
Patented - Patent #6807728
| Attribute name | Attribute Value |
|---|---|
| Cable Type | Insulated Terminals And Lugs |
| Connection | Solid Or Stranded Wire, 22-12 AWG (0.340 - 4.000 SQ-MM) |
| Crimping Range | 12-10 AWG (Yellow), 16-14 AWG (Blue), 22-18 AWG (Red), (4.000/1.500 - 2.500/0.340 - 0.750SQ-MM) |
| Package | Clamshell Pack |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223313 |
| International Harmonize Code | 8205595560 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA8022 CrimpALL Insulated Terminal Crimper
What is the Tempo PA8022 CrimpALL Insulated Terminal Crimper used for?
The Tempo PA8022 is a professional crimping tool designed for terminating insulated electrical terminals and lugs. It provides secure crimp connections for compatible solid and stranded wires, making it suitable for electrical installations, equipment maintenance, and general wiring applications.
What wire sizes and insulated terminals are compatible with the Tempo PA8022?
The PA8022 is specified for solid and stranded wire from 22 to 12 AWG (0.34 to 4.0 mm²). Its included die features color-coded crimping ranges for red (22–18 AWG), blue (16–14 AWG), and yellow (12–10 AWG) insulated terminals. Technicians should verify terminal and wire compatibility before crimping, particularly for 10 AWG applications.
Does the Tempo PA8022 include a crimping die?
Yes. The PA8022 is supplied as a complete CrimpALL crimping tool with a die set included. The die is designed for compatible insulated terminals and lugs, providing multiple color-coded crimping cavities in one tool. The PA8022 is packaged in a clamshell pack.
At a Glance
• Professional CrimpALL crimping tool for insulated electrical terminals and lugs
• Specified for solid and stranded wire from 22 to 12 AWG (0.34 to 4.0 mm²)
• Color-coded crimping cavities: red 22–18 AWG, blue 16–14 AWG, and yellow 12–10 AWG
• Complete crimping tool with compatible insulated terminal die set included
• Patented design (U.S. Patent No. 6807728) for electrical terminal crimping applications
• Supplied in clamshell packaging for convenient storage and handling
