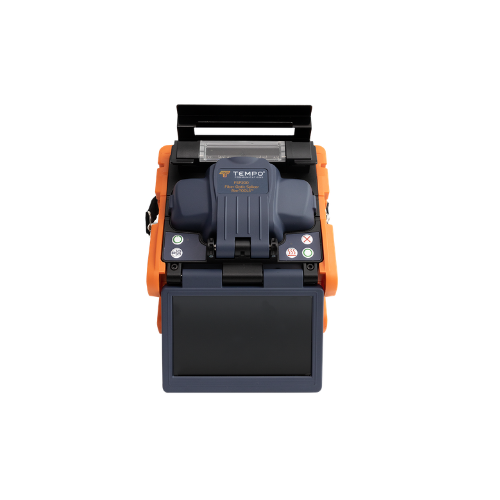

TEMPO | Core Alignment Splicer | #FSP200
TEMPO COMMUNICATIONS | PART #FSP200
Core Alignment Splicer
DESCRIPTION
The FSP200 touchscreen optical fusion splicer uses core alignment technology, which allows the technician to reliably fuse fiber optic cables with low splice losses in as little time as seven seconds. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTT(x), P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The FSP200 uses the Tempo Communications Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure-prone mechanical connector. Splice-on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice-on connector is pre-cleaved and also eliminates the need for a splice tray.
Other manufacturers’ splice-on connectors are compatible with the Tempo Communications fusion splicers with the use of an optional splice-on connector adapter.
- AFL
- Belden (contact Belden for adapter FXFSSHFM3)
- Corning
- FIS
- Hubbell
- Sumitomo
OVERVIEW
- Core alignment six motor technology
- Lowest insertion loss splicing technology
- Seven seconds splicing
- Five-second boot time
- 200 complete cycles per battery charge
- Compact and light weight for the most demanding jobs
- Compatible with loose tube fibers
- Screen shot capable
- Drop tested to 76cm
- Eighteen second shrink time
- 5,000 burns electrode life
- Attenuation mode capable
- Password protection for anti-theft
- Compatible with splice on connectors, SC, LC, FC and ST
- IP52 compliant
- On-board instruction manual
- 5.0” Color LCD touchscreen
- 3-year warranty
TC FSP200 Touchscreen Datasheet 02 2025FSP200 - Legacy Datasheet
FSP200 - Legacy Instruction_Manual.pdf
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Applicable Fibers | SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF |
| Fiber Cleaved Length | 10mm |
| Cladding Diameter | 100 to 1000µm |
| Fiber Count | Single |
| Fiber Aligning Method | Core Alignment |
| Splice Loss | (Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF) |
| Splicing Mode | 60 Preset / User Definable Modes |
| Splice Time | 7 seconds |
| Boot Time | 5 seconds |
| Number of Splices Per Battery Charge | 200 (including 60mm heat shrink cycle) |
| Splice Connector | SC, LC, FC, ST |
| Arc Calibration Mode | Automatic & Manual |
| Protection Sleeve Length | 60mm, 40mm, Micro Sleeves |
| Ingress Protection | IP5X (Dust); IPX2 (Water) |
| Storage of Splice Results | 5,000 Results, 100 screenshots |
| Drop Test | 76cm on five axis |
| Tension Test | 2N |
| Fiber Display Magnification | 200x |
| Tube Heating Time | 18 seconds |
| Attenuator Mode | 0.1 to 15 dB |
| Electrode Life | 5,000 Splices |
| Display | 5" Color LCD Touchscreen |
| Connectivity | USB |
| Storage Temperature | -40 to +158F (-40 to +70C) |
| Operating Conditions | Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level Humidity: 0 to 95% Temperature: -4 to +131F (-20 to +55C) |
| Power Supply | 100 to 240V AC Adapter; Li-ion Battery (4400 mAh) |
| Weight | 3.74lbs (1.7kg) with battery |
| Dimensions | 4.9” x 4.9” x 5.3” (125 x 125 x 135mm) |
| Vibration Resistance | 10Hz – 500Hz with a spectral density of 0.03 g2/Hz |
| Password Protection | Yes |
Common Questions About the Tempo FSP200 Core Alignment Fusion Splicer
What is the Tempo FSP200 used for?
The Tempo FSP200 is a core alignment fusion splicer used to splice singlemode, multimode, DS, NZDS, bend insensitive, and EDF fiber for fiber optic installation, repair, and maintenance applications.
How fast does the FSP200 splice fiber?
The FSP200 completes a fiber splice in as little as 7 seconds and has an 18 second heat shrink cycle, helping technicians complete splicing work quickly in the field.
Does the Tempo FSP200 work with splice on connectors?
Yes. The FSP200 supports SC, LC, FC, and ST splice on connectors. It can also work with compatible splice on connectors from several other manufacturers when the appropriate optional adapter is used.
At a Glance
• Six motor core alignment fusion splicer
• Fast 7 second splice time and 5 second boot time
• Up to 200 splice and heat cycles per battery charge
• 5 inch color LCD touchscreen
• Stores up to 5,000 splice results and 100 screenshots
• Compatible with SC, LC, FC, and ST splice on connectors
