TEMPO | AirScout Residential Wi-Fi Tester 4 Client Kit | #ASK304-LP
TEMPO COMMUNICATIONS | PART #ASK304-LP
AirScout Residential Wi-Fi Tester 4 Client Kit
DESCRIPTION
The ASK304LP AirScout® Residential Wi-Fi® Tester 4 Client Kit helps technicians identify the optimum location and settings for the access point of a Wi-Fi broadband router or access point within a home or small business.
Service providers have found that simply looking at signal strength measurements and using a single instrument is not a true measure of the Wi-Fi user experience in the home. Current workflows results in un-characterized Wi-Fi environment causing high amount of customer service calls and truck rolls.
AirScout provides an automated solution that surveys the residence from Layer 1 all the way through to the application layer. Providing technicians with a tool that makes complex measurements into easy to understand metrics; enabling technicians to convey to consumers whether their applications are supported where they need it.
Results are stored in a cloud system and are therefore available to other technicians or customer service representatives in the future.

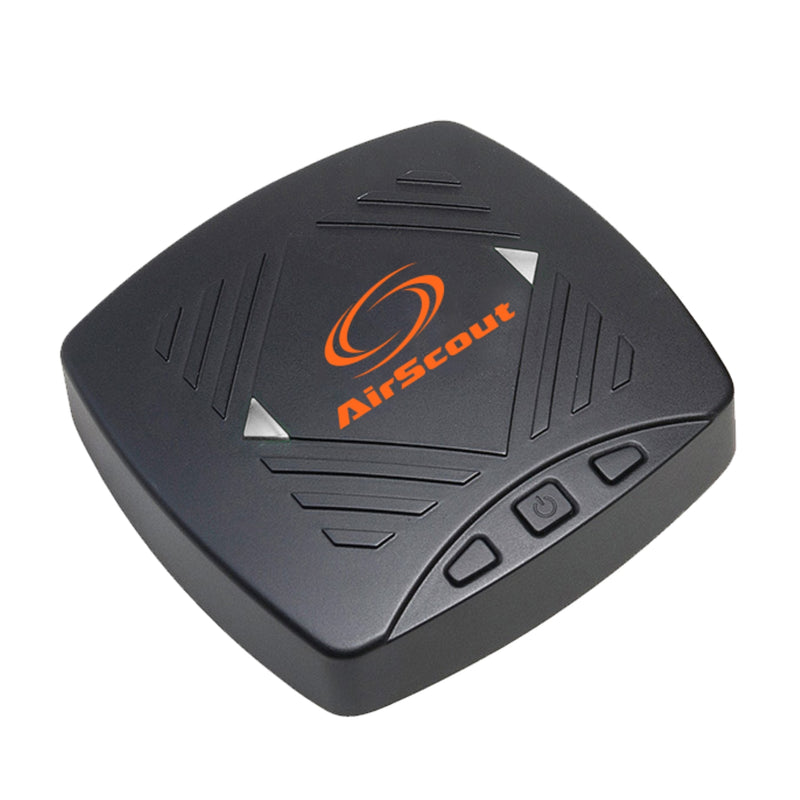

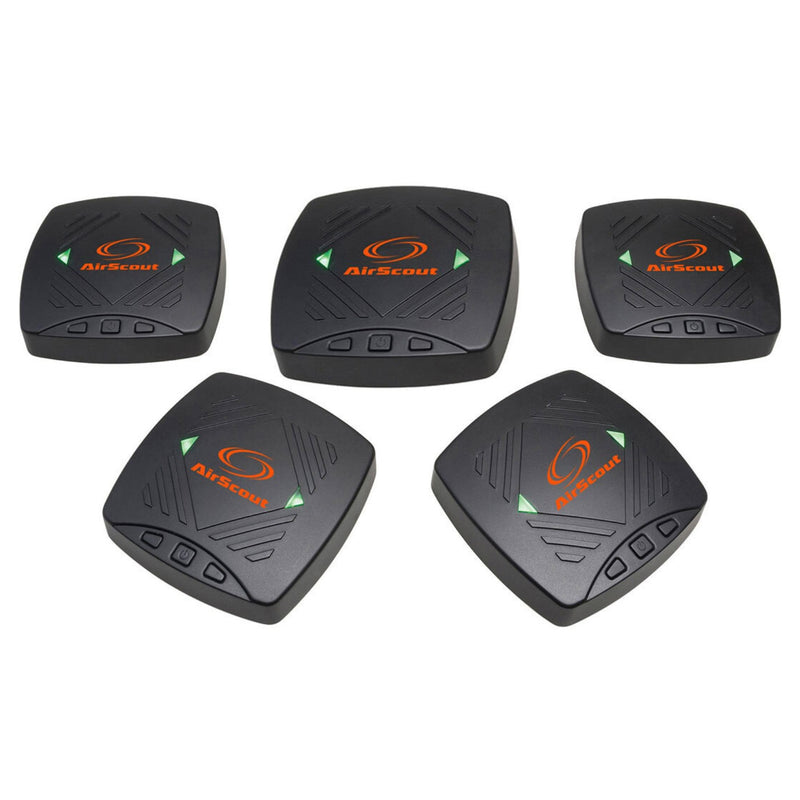

The AirScout ASK304-LP Kit consists of an AirScout Master Controller, four (4) AirScout client devices and accessories all stored in a tough and handy hard carry case in which they all charge from ac mains or 12 V dc vehicle supply.
AirScout Live Pro capability is included in the ASK306-LP. The AirScout Live PRO is an easy to use, engineering grade troubleshooting tool that helps you identify Wi-Fi and non-WiFi interference on your network. It also provides a real-time view of how your network is being utilized and by what, down to the client. The simple, easy to use interface means there is no need for expensive training – users can quickly and easily get to the root of the problem without being a Wi-Fi genius.
Patented – Patent # 9992690
OVERVIEW
- Multiple client devices (up to 8)
- “Hands-off” automated testing
- Simultaneous testing from multiple locations
- Layer 1 through Layer 7 Active testing and analysis
- Multi-dimensional mapping on things such as Applications (HD Video, 4k Video)
- Intelligent channel selection
- Identifies Optimal Access Point location
- Application Support on iOS & Droid Tablets
- Customer friendly on-screen report to explain the whole-home Wi-Fi readiness
- Automatic “over-the-air” software updates pushed from tablet to devices
- AirTime Analysis
- Spectrum Analysis
- Real-Time Congestion, Interference and Utilization Depiction
- 802.15.4 Optimization
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Standard | 802.11 |
| Type | Wi-Fi Quality Assurance Tool |
| Frequency | 2.4 GHz and 5 GHz |
| Battery | LiIon Polymer 15.5 Wh |
| Interface | Wired LAN 10/100/1000 Ethernet |
| Antenna | 2 x 2 MIMO (both master controller and all clients) |
| Area Network Type | WLAN |
| Enclosure | Hard Carry Case |
| Power Supply | 11 to 15 VDC, 2.5 A |
| Operating Temperature | 0 to +60 °C (+32 to +140 °F) |
| Length | 14.88 in (37.8 cm) |
| Width | 12.13 in (30.8 cm) |
| Height | 6.89 in (17.5 cm) |
AirScout Residential Datasheet
