For Large Professional Terminals (Panduit, T & B, etc.)

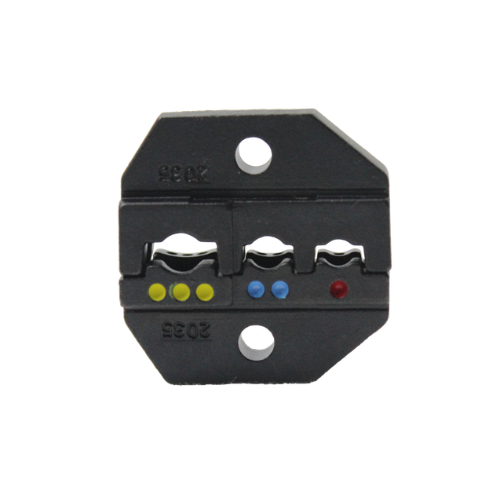

TEMPO | 22-10 AWG INSULATED-TERM. DIE | #PA2035
Original price
$35.61
-
Original price
$35.61
Original price
$35.61
$35.61
-
$35.61
Current price
$35.61
TEMPO COMMUNICATIONS | PART #PA2035
22-10 AWG INSULATED-TERM. DIE
DESCRIPTION
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Insulated Terminal Crimpers |
| Cable Type | Insulated Terminals And Lugs |
| Connection | Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM) |
| Crimp Size | 12-10 AWG (6.000 - 4.000 SQ-MM) Yellow, 16-14 AWG (2.500 - 1.500 SQ-MM) Blue, 22-18 AWG (0.340 - 0.750 SQ-MM) Red |
| Package | Blister |
| Sub Brand | CrimpALL® |
| Type | Interchangeable |
| Item Status Date | 04302010 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA2035 CrimpALL Insulated Terminal Crimping Die
What is the Tempo PA2035 CrimpALL Crimping Die used for?
The Tempo PA2035 is an interchangeable crimping die designed for installing large professional insulated terminals and lugs. It provides precise crimping capabilities for electrical wiring, telecommunications, industrial equipment, and other applications requiring secure insulated terminal connections.
What wire sizes and terminals are compatible with the Tempo PA2035?
The PA2035 accommodates 22 to 10 AWG solid or stranded wire, equivalent to approximately 0.34 to 6.0 mm². It is designed for larger professional insulated terminals and lugs, including compatible connector styles from manufacturers such as Panduit and Thomas & Betts (T&B).
What crimp sizes does the Tempo PA2035 support?
The PA2035 features three color-coded crimping ranges: 22 to 18 AWG (red), 16 to 14 AWG (blue), and 12 to 10 AWG (yellow). As part of the Tempo CrimpALL interchangeable die system, it can be installed in compatible CrimpALL crimping tools for professional insulated terminal applications.
At a Glance
• Interchangeable CrimpALL die designed for large professional insulated terminals and lugs
• Accommodates 22 to 10 AWG solid and stranded wire (0.34 to 6.0 mm²)
• Red crimping range supports 22 to 18 AWG wire (0.34 to 0.75 mm²)
• Blue crimping range supports 16 to 14 AWG wire (1.5 to 2.5 mm²)
• Yellow crimping range supports 12 to 10 AWG wire (4.0 to 6.0 mm²)
• Blister-packaged die for compatible Tempo CrimpALL crimping tools and professional terminal applications
