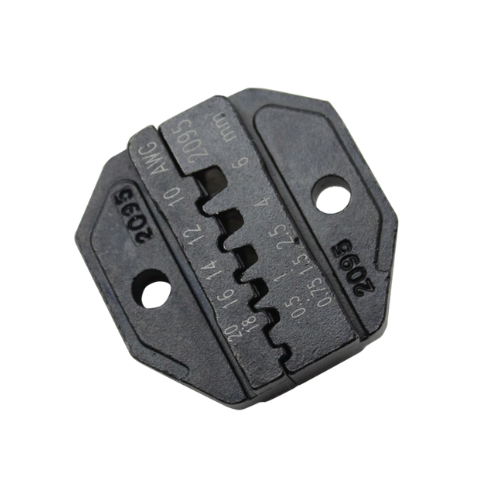

Die set for 20-10 AWG (.51-6.0 mm²) insulated and non-insulated wire ferrules.
OVERVIEW
- 20-10 AWG stranded wire
- Crimp size 20/18-16/14-12/10
- Insulated & non-insulated wire ferrules for DIN or US types
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Wire Ferrules |
| Cable Type | Insulated And Non-Insulated Wire Ferruls |
| Connection | Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM) |
| Crimp Size | 22-20 AWG (0.340 - 0.550 SQ-MM), 18-16 AWG (0.750 - 1.500 SQ-MM), 14-12 AWG (2.500 - 4.000 SQ-MM), 10 AWG (6.000 SQ-MM) |
| Package | Blister |
| Sub Brand | CrimpALL |
| Type | Interchangeable |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223334 |
| International Harmonize Code | 8207306092 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo PA2095 CrimpALL Wire Ferrule Crimping Die
What is the Tempo PA2095 CrimpALL Wire Ferrule Die used for?
The Tempo PA2095 is an interchangeable crimping die designed for installing insulated and non-insulated wire ferrules. It helps technicians create secure, consistent ferrule crimps for electrical wiring, control panels, industrial equipment, and other applications requiring reliable wire terminations.
What wire sizes and ferrule types are compatible with the Tempo PA2095?
The PA2095 accommodates wire ferrules ranging from 22 to 10 AWG (0.34 to 6.0 mm²). It supports insulated and non-insulated DIN and US-style ferrules, with crimping ranges for 22–20 AWG, 18–16 AWG, 14–12 AWG, and 10 AWG wire.
Can the Tempo PA2095 be used with CrimpALL crimping tools?
Yes. The PA2095 is part of the Tempo CrimpALL interchangeable die system and is designed for use with compatible CrimpALL crimping frames. Its interchangeable design allows technicians to switch between different crimping dies for various terminal and connector applications.
At a Glance
• Interchangeable CrimpALL die designed for insulated and non-insulated wire ferrules
• Accommodates 22 to 10 AWG wire ferrules (0.34 to 6.0 mm²)
• Supports compatible DIN and US-style wire ferrules
• Crimping ranges include 22–20, 18–16, 14–12, and 10 AWG
• Ideal for electrical wiring, control panels, and industrial wire termination applications
• Blister-packaged die for use with compatible Tempo CrimpALL crimping tools
