SMG TRAILERS | 7X12 Fiber Splicing Trailer | #FST-7X12

7X12 Fiber Optic Splicing Trailer

Upgrade your fiber splicing with the SMG 7X12 Fiber Splicing Trailer! These rugged trailers feature a durable frame, 13.5 BTU AC/Heat unit, and a well-designed interior with LED lighting and USB-C outlets. With customizable add-ons and unmatched efficiency, SMG Trailers are built to enhance your on-site operations and keep you ahead of the curve. Large Fiber Entry Doors - 20" x 20"

Due to varying options, add-ons, and lead times, fiber splicing trailers cannot be purchased directly through our online store. For a customized quote, please contact us directly via phone or email.

PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us

When emailing, please provide the following details for quicker processing:

• First & Last Name:
• Company Name:
• Shipping Address or specify pickup
• Trailer Size:
• Any add ons?

This fiber splicing trailer is built for performance and comfort, featuring 3,500 lb straight tandem axles with 15" tires, 84" interior height, recessed strobe lights, multiple splicing doors with brush guards, a solid generator box, and powerful AC with heat strip. Includes overhead and under-counter cabinets, lockable drawers, CO2 detector, fire extinguisher, and a 5-year warranty. Comes with Straight Axles raising the body 4" for extra ground clearance.

7X12 Fiber Splicing Trailer Spec Sheet

STANDARD SPECIFICATIONS

• 3,500 lb STRAIGHT Tandem Axles, 15" Tires
• 84" (7') Interior Height
• 12" Rear Step Well (built into the frame)
• Exterior Recessed Strobe Lights
• (2) 30 "x 30" Windows (Passenger Side and Driver Side)
• Spare Tire Mounted on the passenger side
• SOLID Generator Box mounted on the driver’s side
• Emergency Directional Bar on Rear
• Powerful 13.5 BTU AC/ Heat strip (low heat output)
• Side entry door w/ 30 X 30 window and screen.

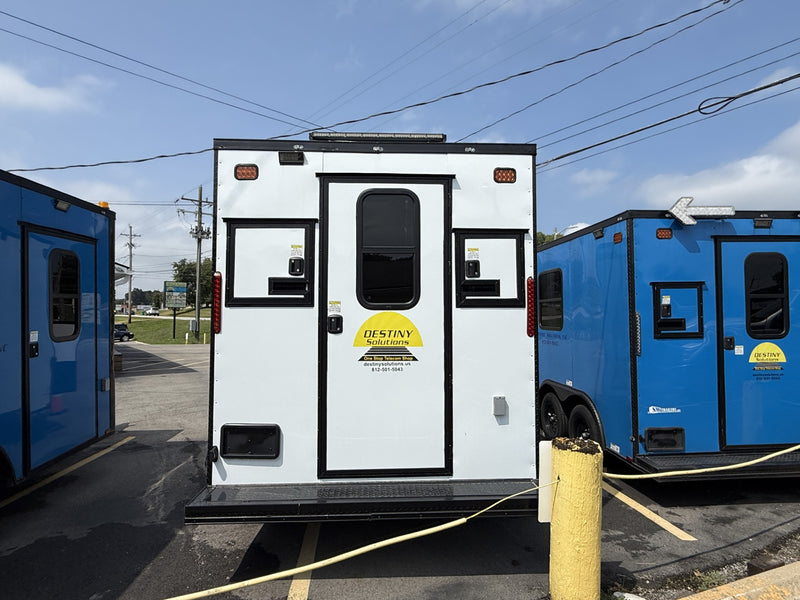

• 30"x78" Rear Entry Door With 30X30 Window and Screen
• (1) Rear Splicing Door with Brush Guard (20 "x 20")
• (1) Rear Splicing Door with Brush Guard (16 X 18)
• (1) Pass. Side Splicing Door with Brush Guard (20 "x 20")

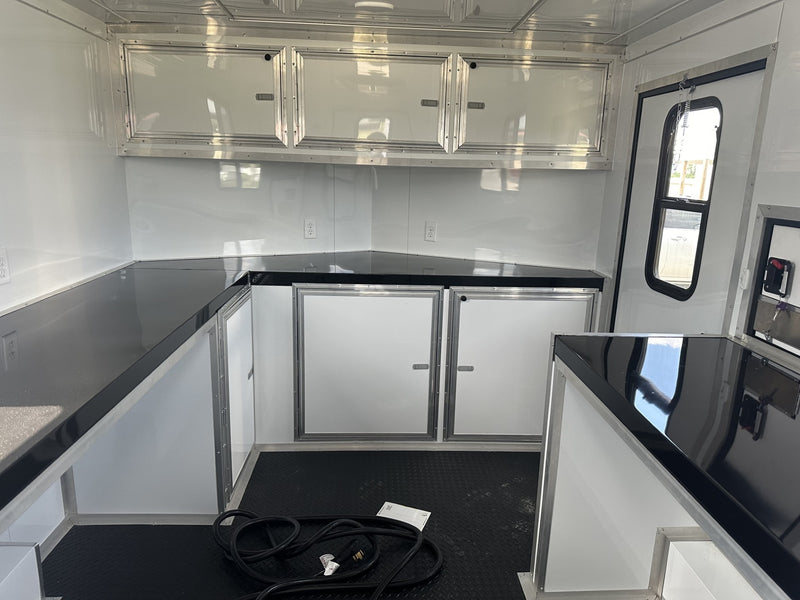

• Latched Overhead Cabinets in the V-Nose
• Latched Cabinets Under the Counter in the V-Nose
• (4) Latched & Lockable Finished Drawers
• CO2 Detector, Kidde/AID BC Fire Extinguisher.
• 5 Year warranty!

• Fold-Down Stabilizer Jacks
• Jenson Bluetooth Radios with 2 Speakers
• E-Track
• Mounted or Recessed Spare Tire
• Commercial NPS 6000 Generator with Remote Start and 20-Gallon Fuel Cell
• Electric Baseboard Heater with Thermostat (36" or 48") Recommended for mid to northern states
• TV-Style Pull-Out Step
