SHINEWAYTECH | OLTS Intelligent Optical Loss Tester | #OLT-55A-HR
SHINEWAYTECH | PART #OLT-55A-HR

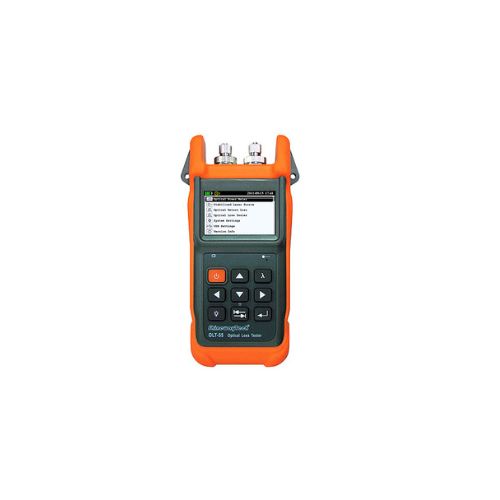

OLTS Intelligent Optical Loss Tester
DESCRIPTION
Shineway OLT-55A-HR Intelligent Optical Loss Tester, Color Display, Laser Source: 1310/1550nm, = -4dBm; Power Meter: 850,1300,1310,1490,1550,1625nm, -50~ +27dBm; Bidirectional Loss Testing, Auto Wavelength Recognition and with Optical Return Loss module, ORL Range: 0~60dB; ORL Accuracy:±0.75dB@(0~50dB), ±1.5dB@(50~60dB); ORL Uncertainty:±0.5dB@20dB. Includes: Rechargeable battery. USB port, PC software, Power Monitoring, Optional return loss test function. 1 Year Factory Warranty
ShinewayTech® OLT-55 Intelligent Optical Loss Tester is a all-in-one loss tester integrated with Stabilized Laser Source, Optical Power Meter, Optical Loss Tester, ORL Tester and Length Testing functions.
It can perform automatic bidirectional loss test on single fiber with Pass/Fail assessment. With rich functions, flexible configuration and excellent user friendly design, OLT-55 is the ideal optical loss tester to completely evaluate the optical fiber link condition in FTTx, LAN and CATV network.
FEATURES
- All-in-one: SLS + OPM + OLT + ORL + Length test
- Optical power monitoring (Auto power trace)
- Bidirectional loss test on single fiber
- ORL test
- Pass/Fail assessment
- Automatic wavelength identification/switch (AutoID)
- Remote reference value setting
- Internal clock & fiber S/N editable
- 1000 test records (CSV) storage & management
- Data transfer to PC via USB (Driver-free)
- Auto test records save in local unit/remote unit/both units
- USB power charging
- Over 35 hours continuous operation
- Multilanguage support
- No warm-up, quick start
- High resolution color LCD
- Pocketsize, lightweight and easy-to-use
Automatic Bidirectional Loss and Return Loss Test on Single Fiber
Two OLT-55 at both ends of a single optical fiber can perform bidirectional loss test by just pressing one button and can automatically measure and display the entire fiber attenuation and total length to help users acquire complete and accurate optical fiber loss information.
Automatic Wavelength Switch /Identification
Optical Power Monitoring
Common Questions About the ShinewayTech OLT-55A-HR Optical Loss Tester
What is the ShinewayTech OLT-55A-HR used for?
The OLT-55A-HR is used to perform bidirectional optical loss testing, optical return loss (ORL) testing, and fiber length measurement on single-mode fiber links in FTTx, LAN, and CATV networks.
Does the OLT-55A-HR support bidirectional testing?
Yes. When two OLT-55 units are placed at each end of a fiber, the tester performs automatic bidirectional loss measurements with a single button press and provides pass or fail results.
What wavelengths does the OLT-55A-HR support?
The stabilized laser source operates at 1310 and 1550 nm, while the power meter supports 850, 1300, 1310, 1490, 1550, and 1625 nm with automatic wavelength identification.
Does the OLT-55A-HR measure optical return loss?
Yes. The built-in ORL module measures optical return loss from 0 to 60 dB, helping technicians evaluate connector quality and reflection issues.
Why the OLT-55A-HR Is Ideal for Fiber Certification and Troubleshooting
The OLT-55A-HR combines a stabilized laser source, optical power meter, loss tester, ORL tester, and fiber length testing into one compact device. Automatic wavelength recognition, bidirectional testing, and pass or fail assessment reduce setup time and eliminate manual calculations. With over 35 hours of battery life, CSV data storage, and USB data transfer, it is well suited for field technicians validating fiber links quickly and accurately.
At a Glance
• All in one optical loss and return loss tester
• Bidirectional loss testing on single fiber
• Optical return loss measurement up to 60 dB
• Automatic wavelength identification and switching
• Pass or fail fiber link assessment
• Fiber length measurement
• USB data transfer and CSV record storage
• Over 35 hours of continuous operation
• Compact, lightweight, and field ready
