SHINEWAYTECH | OLTS Intelligent Optical Loss Tester | #OLT-55A-H
SHINEWAYTECH | PART #OLT-55A-H

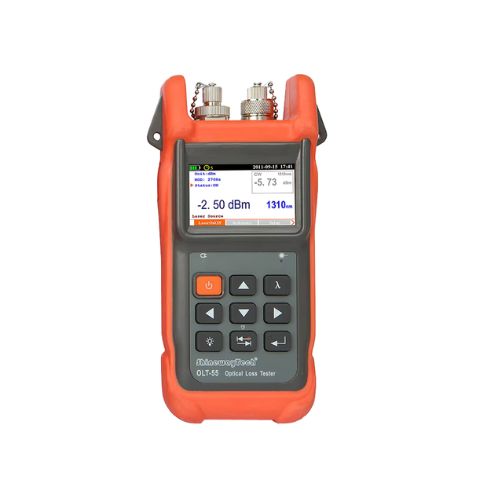

OLTS Intelligent Optical Loss Tester
DESCRIPTION
Shineway OLT-55A-H, Intelligent Optical Loss Tester, Color Display, Laser Source: 1310/1550nm, = -4dBm; Power Meter: 850,1300,1310,1490,1550,1625nm, -50~ +27dBm; Bidirectional Loss Testing, Auto Wavelength Recognition. Includes: Rechargeable battery. USB port, PC software, Power Monitoring. Note: A companion tester with ORL Module is required for Bidirectional loss on a single fiber. 1 Year Factory Warranty
ShinewayTech® OLT-55 Intelligent Optical Loss Tester is a all-in-one loss tester integrated with Stabilized Laser Source, Optical Power Meter, Optical Loss Tester, ORL Tester and Length Testing functions.
It can perform automatic bidirectional loss test on single fiber with Pass/Fail assessment. With rich functions, flexible configuration and excellent user friendly design, OLT-55 is the ideal optical loss tester to completely evaluate the optical fiber link condition in FTTx, LAN and CATV network.
FEATURES
- All-in-one: SLS + OPM + OLT + ORL + Length test
- Optical power monitoring (Auto power trace)
- Bidirectional loss test on single fiber
- ORL test
- Pass/Fail assessment
- Automatic wavelength identification/switch (AutoID)
- Remote reference value setting
- Internal clock & fiber S/N editable
- 1000 test records (CSV) storage & management
- Data transfer to PC via USB (Driver-free)
- Auto test records save in local unit/remote unit/both units
- USB power charging
- Over 35 hours continuous operation
- Multilanguage support
- No warm-up, quick start
- High resolution color LCD
- Pocketsize, lightweight and easy-to-use
Automatic Bidirectional Loss and Return Loss Test on Single Fiber
Two OLT-55 at both ends of a single optical fiber can perform bidirectional loss test by just pressing one button and can automatically measure and display the entire fiber attenuation and total length to help users acquire complete and accurate optical fiber loss information.
Automatic Wavelength Switch /Identification
Optical Power Monitoring
