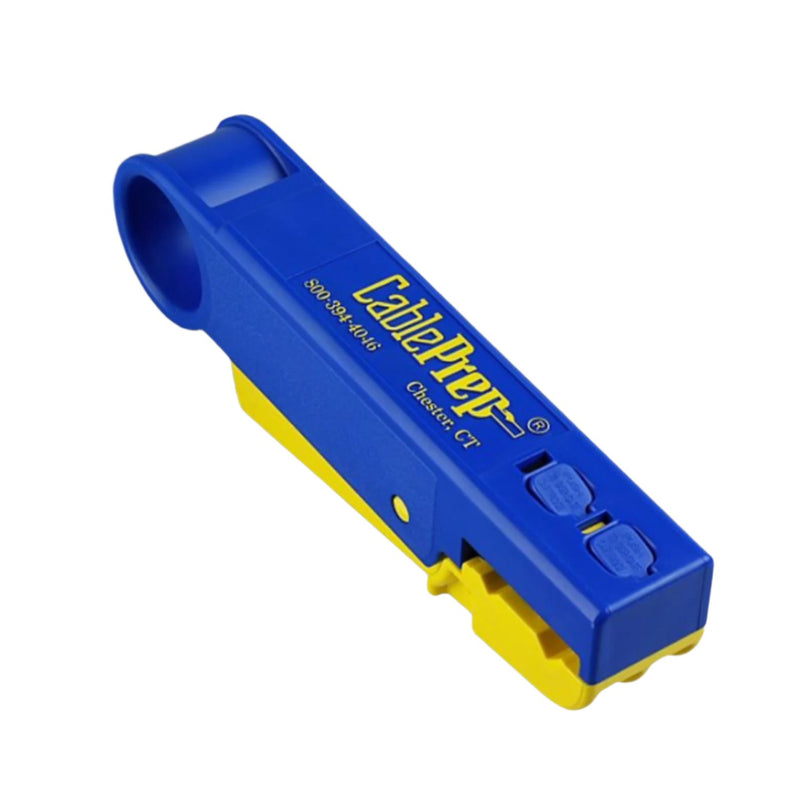

CABLE PREP | Cable Stripping Tool | #SCPT-TXFF
CABLE PREP | PART #SCPT-TXFF
Cable Stripping Tool
DESCRIPTION
The Super CPT tool is a coax cable stripper specifically designed to remove the cable jacket, cut the braid and dielectric, and expose the center conductor on large and small diameter braided cables, all in one smooth operation. This coax cable stripper facilitates working on multiple cable types because it holds two cartridges, eliminating the need for multiple cable strippers. The Super CPT prepares Flexible Feeder drop cable 1/4" braid exposure.
FEATURES
- Connector insertion sockets provides all the leverage needed to push the connector onto the cable, eliminating the need for a separate insertion tool
- Wide jaws easily accommodate the bulk of large-diameter cables
- Made of durable plastic, the lightweight SCPT tool offers consistent, precision performance even under harsh conditions
- Slots for holding two different sized cartridges make it convenient to use the SCPT tool when working on multiple cable types
- Body is comfortable to hold and easy to operate with either hand
- Jacket, braid, and dielectric are cut with one simple motion, cables can be prepared quickly and easily
- Pre-calibrated dimensions for different applications help to ensure that jackets are stripped and braid and dielectric are cut back properly
- Quick-release mechanism makes changing a cartridge in either slot a quick, easy, and safe operation
- Made of the highest quality steel, SCPT blades ensure optimum performance over a long life
- Cartridges can prepare 2,500 - 5,000 cables, depending on braid coverage
- The patented cleanout feature of the Super CPT tool automatically removes excess jacket, braid, and dielectric from the tool after stripping
SPECIFICATIONS
- Braid Exposure (inches/mm): 0.250 / 6.4
- Center Conductor Exposure (inches/mm): Adjustable
- Cartridge Color: Yellow
- Weight: .02 lbs
- Made in the USA
Common Questions About the Cable Prep Super CPT Cable Stripping Tool
What is the Super CPT cable stripping tool used for
The Super CPT cable stripping tool is used to strip coaxial cables by removing the jacket, cutting the braid and dielectric, and exposing the center conductor in a single operation.
What types of cables can this stripping tool handle
This tool is designed to work with both large and small diameter braided coax cables, making it suitable for a wide range of cable installation tasks.
What makes the Super CPT different from standard coax strippers
The Super CPT features factory calibrated stripping dimensions for consistent results and includes an insertion feature that helps push connectors onto the cable with added leverage.
Can this tool be used with different cartridge sizes
Yes. The tool includes two slots that allow users to hold and switch between two different sized stripping cartridges as needed.
How the Super CPT Cable Stripping Tool Supports Clean Cable Prep
The Cable Prep Super CPT cable stripping tool is designed to deliver precise, repeatable cable prep with minimal effort. Its calibrated stripping dimensions and all in one operation help technicians work faster while maintaining clean, professional cable terminations.
At a Glance
• Coax cable stripping tool for braided cables
• Removes jacket, braid, and dielectric in one operation
• Factory calibrated for consistent strip lengths
• Built in insertion feature for easier connector installation
• Supports multiple cartridge sizes
