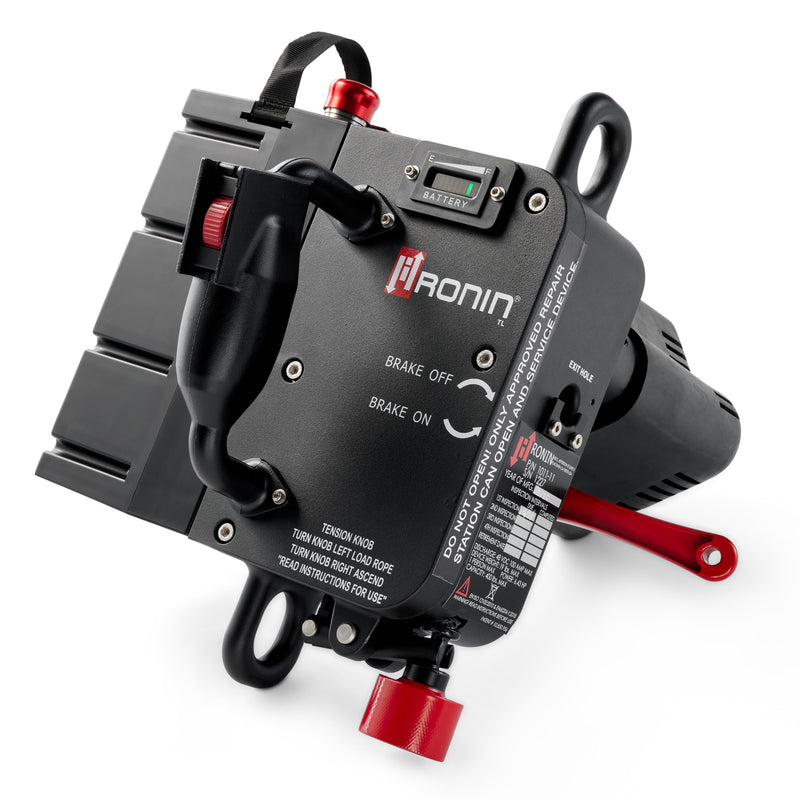

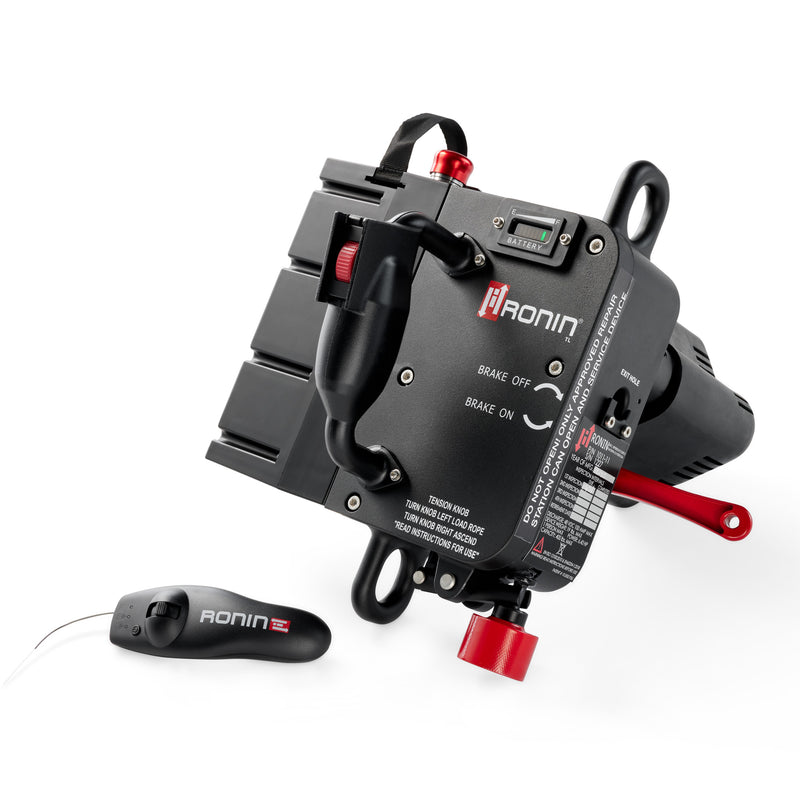

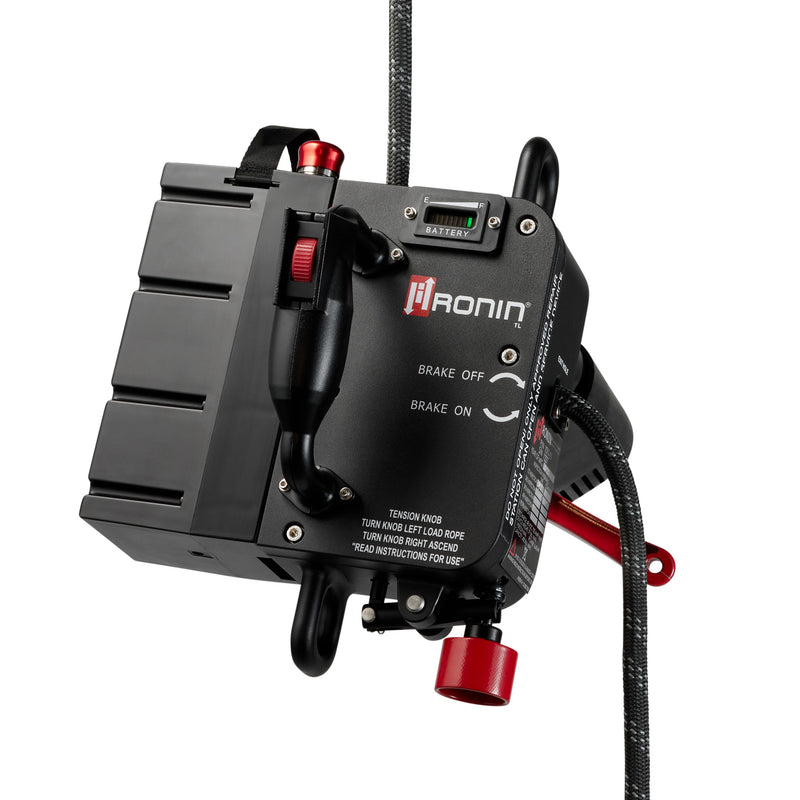

Ronin | Titan Lift (TL) Kit – Includes Ascender, 48V Battery, Charger, Wireless Remote, Rope Brush, Rubber Motor Protector, Perfect Burn Tip, and Hard Case | #KIT1011-11
RONIN | PART #KIT1011-11
Titan Lift (TL) Kit – Includes Ascender, 48V Battery, Charger, Wireless Remote, Rope Brush, Rubber Motor Protector, Perfect Burn Tip, and Hard Case
DESCRIPTION
The Ronin TL is changing AT-HEIGHT Work. It helps prevent injury caused by fatigue and increases efficiency. It can even help extend AT-HEIGHT working careers. Despite its compact size, this powerful tool was developed to manage heavy loads in harsh environments. The automatic in-feed rope system protects against detachment while providing operational capabilities not present in other ascender options.
INCLUDES
1 Ronin Lift Ascender (1 Wireless Remote, 1 Anti-Panic Handle, 1 Reverse Function), 1 Battery, 1 Charger, 1 Charger Cable – Type A, B or C, 1 Hard Case w/Custom Foam, 1 Rope Brush, 1 Rubber Motor Protector, 1 Perfect Burn Tip
USE APPROVED ROPES ONLY - LEARN MORE
APPLICATIONS
- Search and Rescue
- Extraction/Evacuation
- Winching/Hauling
- Infrastructure Maintenance
- Cargo Loading
- Inspections
- Rope Access Training
FEATURES
- 400 lbs. (181 kg) Safe Working Load
- Variable Speed Control (0.5 – 1.5 ft./sec)
- Hands-Free Braking System
- Gravity Feed Descent
- Automatic End Feed Rope Loading
- Safely Secures Rope inside the Lift & Prevents Accidental Detachment
- Allows for Angled Ascents
- Hot-Swappable Lithium Battery w/charge reading
- Water Resistant IP54 Rating
- Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
- Battery Indicator Power Selector Switch
- Allows for Battery Indicator Reading to be On or Off
SPECIFICATIONS
- Width (W): 11.25 in. | (28.58 cm)
- Depth (D): 13.50 in. | (34.29 cm)
- Height (H): 11.75 in. | (29.85 cm)
- Weight: approx. 20 lbs. including battery | (9 kg)
- Construction: Aluminum, Stainless Steel and Bronze
- Finish: Powder Coat Black
- Operating Temperature Range: -4 ºF – 120 ºF | (-20 ºC – +49 ºC)
- Ingress Protection: IP54
- Battery Type: 48 VDC Lithium Ion Rechargeable
- Battery Life Ascent: 350 ft. of rope @ 400 lbs. | (107 m of rope @ 181.43 kg)
- Standard Battery: 700 ft. of rope @ 200 lbs. | (213 m of rope @ 90.71 kg)
- Battery Re-Charge Time: Approximately 2 hours
- Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope
- Rope Loading: End Feed
- Ascent Speed: Variable (0.5 – 1.5 ft./per second) | (0.15 – 0.46 m/per second)
- Descent Method: Gravity Feed with Manual Brake
- Descent Speed: 2.8 ft./sec. max @ 400 lbs. | (1.06 m/sec. max @ 181 kg)
- Secondary Safety: Secondary Lock-Out Feature (Hands-Free)
- Max Working Load: 400 lbs. | (181 kg)
- Product Certifications: CE Certified & ANSI Certified
- Reverse Functionality: For Angled Ascents, winching applications, removing rope from the system.
PRODUCT DOCUMENTS
Common Questions About the Titan Lift Kit (48V)
What is the Titan Lift Kit used for?
The Titan Lift Kit is used for powered rope ascents, hauling, and winching during at height operations, helping reduce fatigue while safely lifting personnel and loads.
Who is this kit designed for?
This kit is designed for search and rescue teams, infrastructure maintenance crews, rope access trainers, inspectors, and industrial professionals performing demanding vertical access work.
What makes the Titan Lift different from other powered ascenders?
The Titan Lift uses a 48V power system with automatic end feed rope loading, hands free braking, reverse functionality, and a wireless remote, delivering higher performance and control in harsh environments.
How the Titan Lift Kit Supports At Height Workflows
The Titan Lift Kit improves safety and efficiency by combining variable speed control, gravity feed descent, and hot swappable batteries. Its automatic rope in feed system helps prevent accidental detachment while supporting angled ascents and winching applications.
At a Glance
• 48V powered rope ascender kit with wireless remote
• 400 lb safe working load for lifting and hauling
• Automatic end feed rope loading with hands free braking
• Variable ascent speed with gravity feed descent
• Hot swappable lithium battery with charge indicator
• Designed for rescue, training, hauling, and inspections
