Ronin | Titan Lift (TL) Battery w/Charger (48V) | #KIT1011-232

RONIN | PART #KIT1011-232

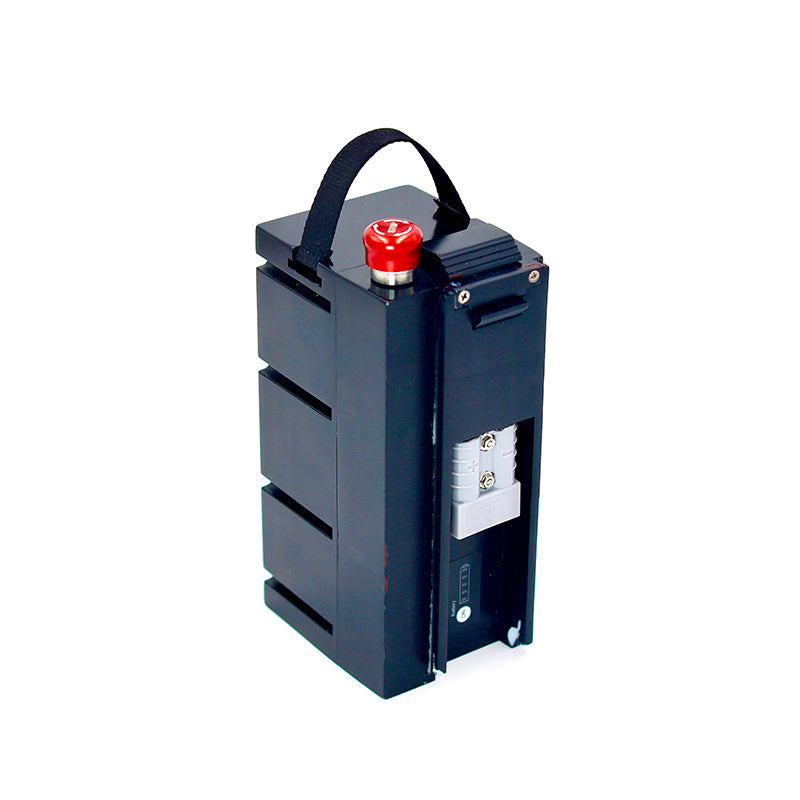

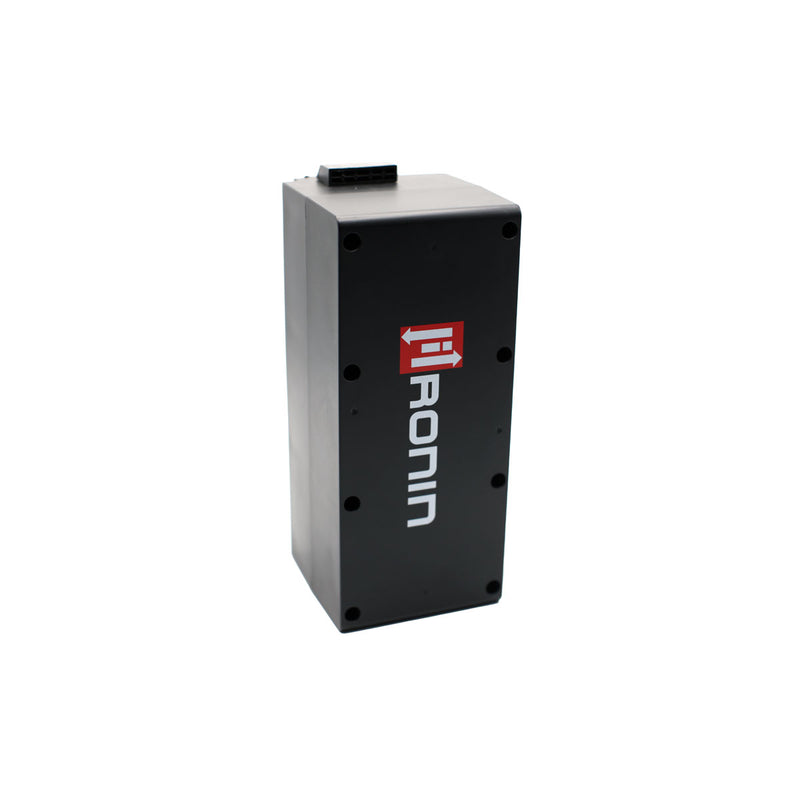

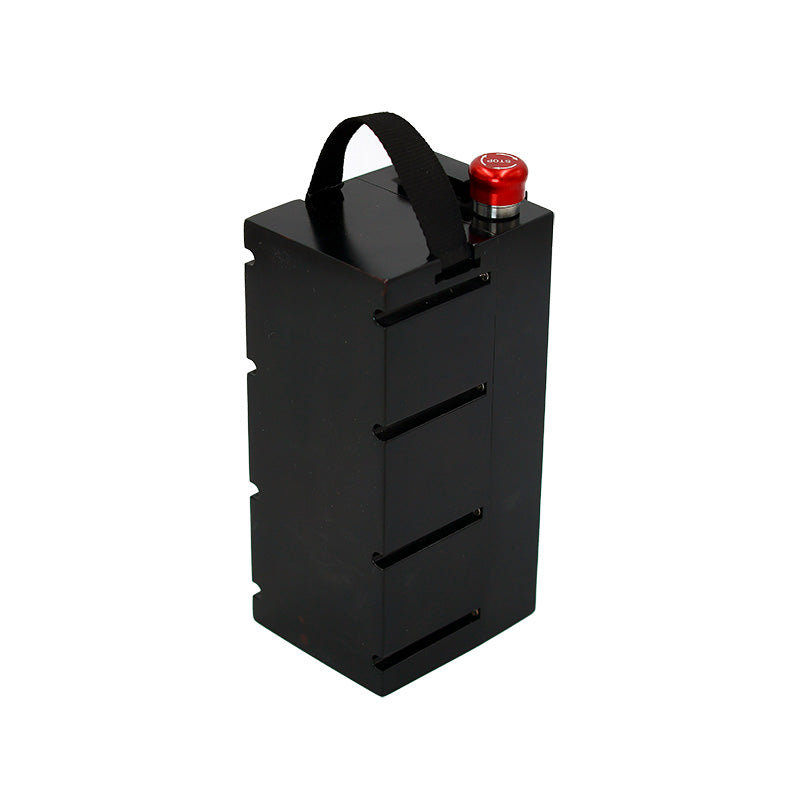

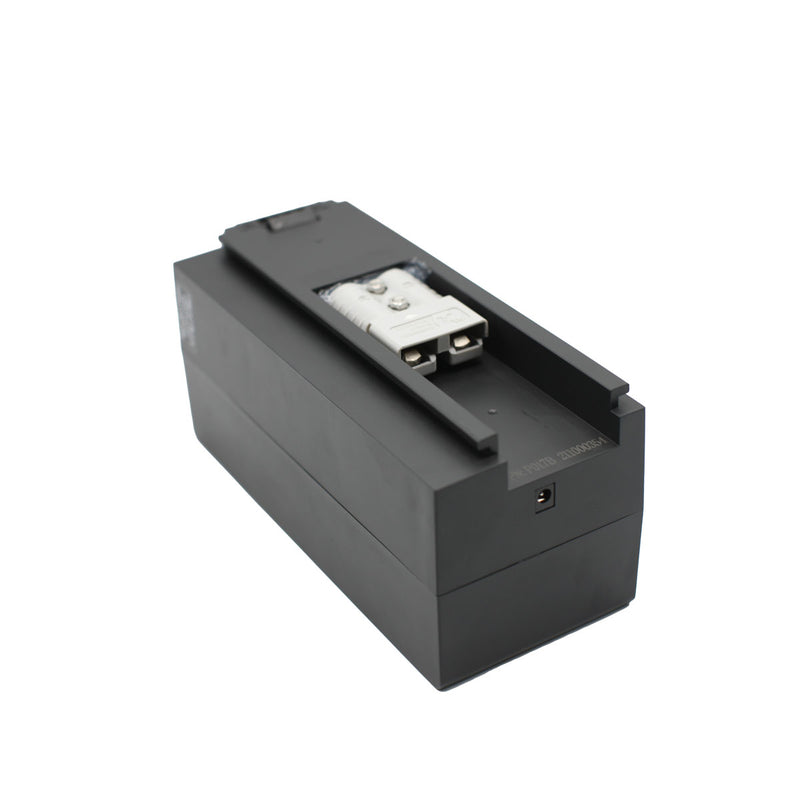

Titan Lift (TL) Battery w/Charger (48V)

DESCRIPTION

Why put limits on your operations? The Ronin Lift fully supports battery change outs to keep up with an increasing at-height workload. With an extra battery your work with the ascender will be more efficient and always ready to go. Batteries easily install on and off the Ronin Lift and can be switched out mid-line. If you run out of battery power on the way up, no problem, the Ronin Lift gravity descent system will get you down for a quick battery change out. All batteries come with their own charger.

FEATURES

• Battery Type: Lithium-Ion
• Hi-impact PC/ABS case
• Retaining mechanism for upside-down operations
• Quick charge time, approximately 2.5 hrs.
• IP64 weatherproofing


INCLUDED

• 1 Titan Lift (TL) Battery

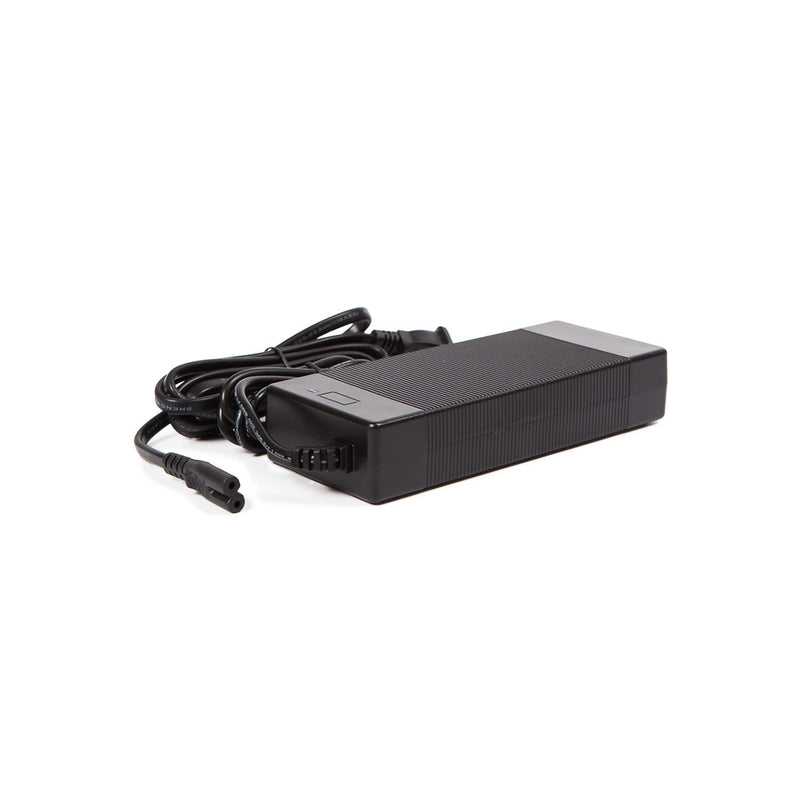

• 1 Charger (Type A, C or G)
• 1 Charger Cable (48V)

SPECIFICATIONS

Length of life for battery with a load of 200 lbs (91 kg) and 400 lbs (181 kg) respectively:

• Temp Range 68°F – 104°F (20°C – 40°C)
  – Battery Life Ascent 200 lbs. (91 kg) 700ft – (213) m
  – Battery Life Ascent 400 lbs. (181 kg) 350ft – (107) m

• Temp Range 32°F – 68°F (O°C – 20°C)
  – Battery Life Ascent 200 lbs. (91 kg) – 500ft – (152) m
  – Battery Life Ascent 400 lbs. (181 kg) – 250ft – (76)m

• Temp Range -4°F -32 °F (-20°C – O°C)
  – Battery Life Ascent 200 lbs. (91 kg) – 250ft – (76) m
  – Battery Life Ascent 400 lbs. (181 kg) – 177ft – (54) m

User Manual
