Ronin | Lift Kit (Non-HEC) - Includes Ascender, 28V Battery, Charger, Wireless Remote, Rope Brush, Rubber Motor Protector, Perfect Burn Tip, and Hard Case | #KIT2805-11APWR-W
RONIN | PART #KIT2805-11APWR-W
Lift Kit (Non-HEC) - Includes Ascender, 28V Battery, Charger, Wireless Remote, Rope Brush, Rubber Motor Protector, Perfect Burn Tip, and Hard Case
DESCRIPTION

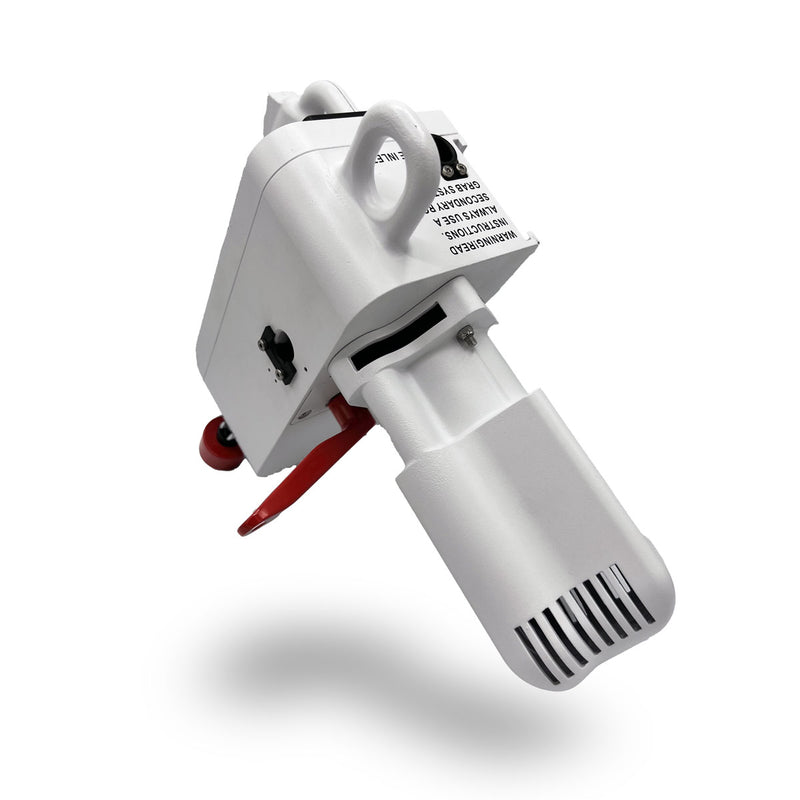

The Non-HEC Lift is a dedicated Lift that will handle any material hauling needs you have. The safe working load 400 lbs. (181 kg) but you can add mechanical advantages up to 4:1, which means loads of up to 1600 lbs. (726kg) can be accommodated. Both the Ronin Lift anchor points are rated at 5,000 lbs. for confident rigging.
With the wireless remote function your teams can raise or lower loads from a safe distance.The variable speed control is smooth and makes it easy to control the heaviest loads. Winch loads in complete confidence with the Ronin Non-HEC Lift. Pair up your Non-HEC Lift with one of our Pole Mounts, Hitch Mounts or Tripod Mounts.

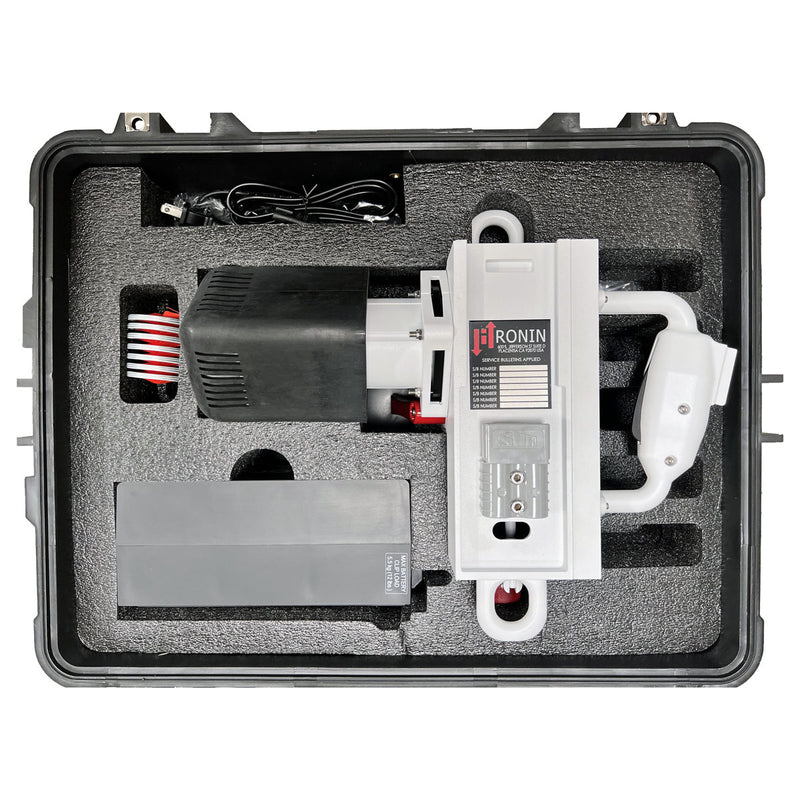

INCLUDES
- 1 Ronin Lift Ascender (Non-HEC; 1 Wireless Remote, 1 Anti-Panic Handle, 1 Reverse Function)
- 1 Battery
- 1 Charger
- 1 Charger Cable – Type A, B or C, 1 Hard Case w/Custom Foam
- 1 Rope Brush
- 1 Rubber Motor Protector
- 1 Perfect Burn Tip
USE APPROVED ROPES ONLY - LEARN MORE
APPLICATIONS
- Power Utilities, Oil & Gas
- Wind Tower Access
- Cell Tower Access
- Arborcare, Entertainment Rigging
- Construction, Building Maintenance
- SPRAT/IRATA rope work support
- Confined Space
- Sports/Recreation
FEATURES
- 400 lbs. (181 kg) Safe Working Load
- Variable Speed Control (0.5 – 1.5 ft./sec)
- Hands-Free Braking System
- Gravity Feed Descent
- Automatic End Feed Rope Loading
- Safely Secures Rope inside the Lift & Prevents Accidental Detachment
- Allows for Angled Ascents
- Hot-Swappable Battery
- Lithium Rechargeable Battery
- Water Resistant IP54 Rating
- Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
- Mechanical Advantage Allowed up to 4:1 ratio to lift, up to 1600 lbs. (725 Kg)
- CE Certified (EC and EU Type Examination Cert)
SPECIFICATIONS
- Width (W): 11.35 in. | (28.82 cm)
- Depth (D): 15.39 in. | (39.09 cm)
- Height (H): 13.35 in. | (33.9 cm)
- Weight: approx. 19 lbs. including battery | (8.2 kg)
- Construction: Aluminum, Stainless Steel and Bronze
- Finish: Powder Coat Black
- Operating Temperature Range: -4 ºF – 120 ºF | (-20 ºC – +49 ºC)
- Ingress Protection: IP54
- Battery Type: 28 VDC Lithium Ion Rechargeable
- Battery Life Ascent: 3.0 min. continuous use 400 lbs. (325 ft. rope) | 3.0 min. continuous use 181 kg (99 m rope)
- Standard Battery: 6.0 min. continuous use 200 lbs. (650 ft. rope) | 6.0 min. continuous use 91 kg (198 m rope)
- Battery Re-Charge Time: ~2.0 hours
- Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope
- Rope Loading: Manual Rope Feed
- Ascent Speed: Variable (0.5 – 2.2 ft./per second) | (0.15 – 0.46 m/per second)
- Descent Method: Gravity Feed with Manual Brake
- Descent Speed: 3.8 ft./sec. max @ 400 lbs. | (1.16 m/sec. max @ 181 kg)
- Climbing Method: Single Rope Technique
- Secondary Safety: Secondary Lock-Out Feature (Hands-Free)
- Max Working Load: 400 lbs. | (181 kg)
