Ronin | Lift Kit - Includes Ascender, 28V Battery, Charger, Wireless Remote, Perfect Burn Tip, and Box with Foam Inserts | #KIT2805-11APWR-BX

RONIN | PART #KIT2805-11APWR-BX

Lift Kit - Includes Ascender, 28V Battery, Charger, Wireless Remote, Perfect Burn Tip, and Box with Foam Inserts

DESCRIPTION

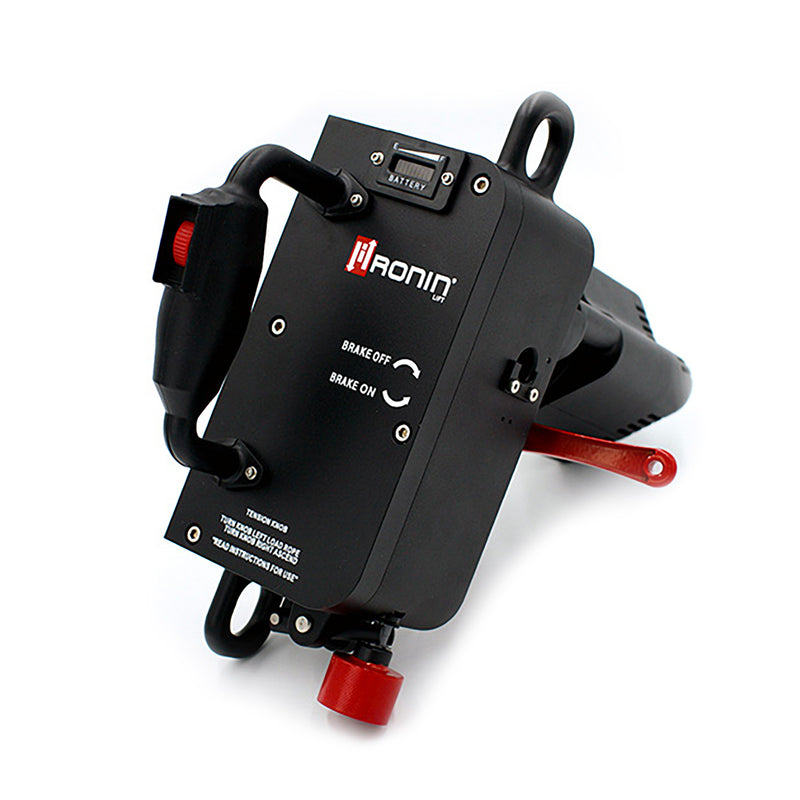

This powerful tool has revolutionized safety and injury prevention in the workplace, by removing the physical strain and fatigue of climbing. The Ronin Lift battery-powered power ascender is an affordable tool that every at-height worker should have in their tool kit.

Ronin Lift was developed to manage heavy loads in tough environments to help perform the task at hand. Even though it is one of the lightest machines on the market, it’s smooth, fast, and easy to use.

INCLUDES

• 1 Ronin Lift Ascender w/o Remote
• Battery & Charger (in Box; NO CASE)

USE APPROVED ROPES ONLY - LEARN MORE

APPLICATIONS

• Power Utilities
• Oil & Gas
• Wind Tower Access
• Cell Tower Access
• Arborcare
• Entertainment Rigging
• Construction, Building Maintenance
• SPRAT/IRATA rope work support
• Confined Space
• Sports/Recreation

FEATURES

• 400 lbs. (181 kg) Safe Working Load
• Variable Speed Control (0.5 – 1.5 ft./sec)
• Hands-Free Braking System
• Gravity Feed Descent
• Automatic End Feed Rope Loading
  • Safely Secures Rope inside the Lift & Prevents Accidental Detachment
  • Allows for Angled Ascents
• Hot-Swappable Battery
• Lithium Rechargeable Battery
• Water Resistant IP54 Rating
• Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
• Mechanical Advantage Allowed up to 4:1 ratio to lift, up to 1600 lbs. (725 Kg)
• CE Certified (EC and EU Type Examination Cert)


SPECIFICATIONS

• Width (W): 11.35 in. | (28.82 cm)
• Depth (D): 15.39 in. | (39.09 cm)
• Height (H): 13.35 in. | (33.9 cm)
• Weight: approx. 24 lbs. including battery | (10.9 kg)
• Construction: Aluminum, Stainless Steel and Bronze
• Finish: Powder Coat Black
• Operating Temperature Range: -4 ºF – 120 ºF | (-20 ºC – +49 ºC)
• Ingress Protection: IP54
• Battery Type: 28 VDC Lithium Ion Rechargeable
• Battery Life Ascent: 3.0 min. continuous use 400 lbs. (325 ft. rope) | 3.0 min. continuous use 181 kg (99 m rope)
• Standard Battery:  6.0 min. continuous use 200 lbs. (650 ft. rope) | 6.0 min. continuous use 91 kg (198 m rope)
• Battery Re-Charge Time: ~2.0 hours
• Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope
• Rope Loading: Manual Rope Feed
• Ascent Speed: Variable (0.5 – 1.5 ft./per second) | (0.15 – 0.46 m/per second)
• Descent Method: Gravity Feed with Manual Brake
• Descent Speed: 3.8 ft./sec. max @ 400 lbs. | (1.16 m/sec. max @ 181 kg)
• Climbing Method: Single Rope Technique
• Secondary Safety: Secondary Lock-Out Feature (Hands-Free)
• Max Working Load: 400 lbs. | (181 kg)

PRODUCT DOCUMENTS

User Manual
