RIPLEY CABLEMATIC | CST 21160TX Coring, Stripping & Chamfering Tool | #32380
RIPLEY CABLEMATIC | PART #32380

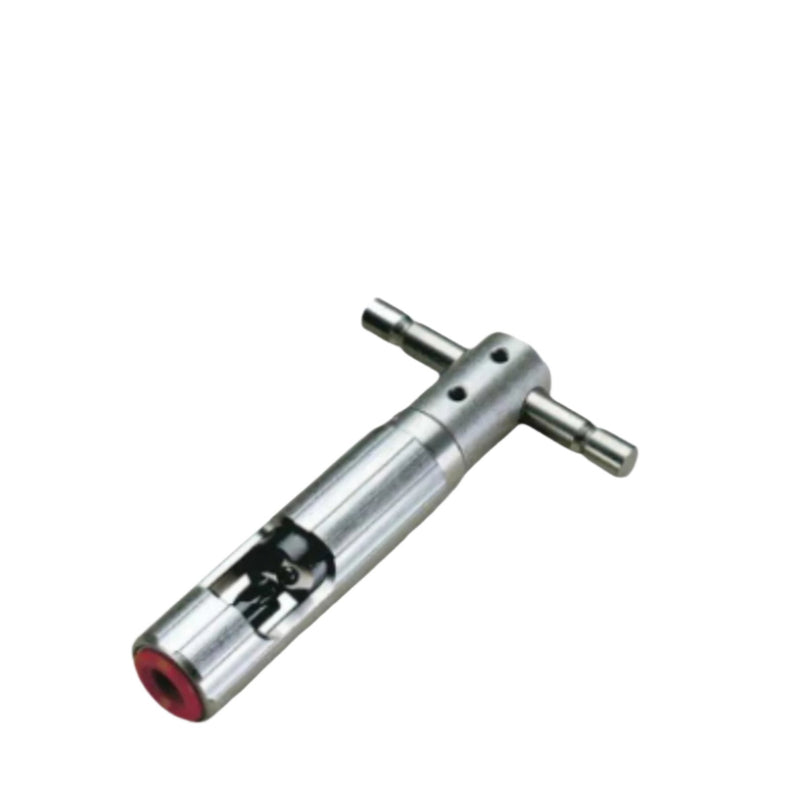

CST 21160TX Coring, Stripping & Chamfering Tool
DESCRIPTION
The Cablematic CST 700TX is a Standard Coring Strip Tool. It cores and strips in one fast and precise manual or drilling operation. Heat-treated sheath-cutting blade produces a smooth, beveled edge and can be replaced without the expense of replacing the entire coring bit. The tool features rugged, durable, all-metal construction and spiral-fluted, heat-treated steel coring bit
OVERVIEW
- Combination tool quickly strips the sheath & cores the dielectric on cables in one precise operation
- Durable, all-metal construction with color-coded guide sleeves provide easy identification
- Heat-treated sheath cutting blade produces a smooth, beveled edge & can be replaced
- Strip stops available for strip lengths of 0.5″ to 2″ (12.7 to 50.8 mm)
- Standard models feature a “T” handle with a built-in 3/8″ drill adapter & ratchet models feature a ratchet “T” handle with a separate 3/8″ drill adapter for manual or drill operations
SPECIFICATIONS
- Cable Size: 1160 kcmil
- Length: 6.88 in
- Weight: 13 oz
Cable Compatibility
- CommScope® P3 1160 Cable
- Times Fiber TX
Common Questions About the CST 21160TX Coring, Stripping and Chamfering Tool
What is the CST 21160TX used for?
The CST 21160TX is used to core and strip the dielectric and sheath on 1160 kcmil cables in one precise operation using manual or drill driven methods.
Who is this tool designed for?
This tool is designed for telecommunications technicians and cable installers working with large diameter coaxial and power feeder cables.
What makes the CST 21160TX different from standard coring and stripping tools?
The CST 21160TX combines coring and stripping in a single operation and features a replaceable heat treated sheath cutting blade that produces smooth, beveled edges without replacing the entire coring bit.
How the CST 21160TX Supports Cable Preparation Workflows
The CST 21160TX improves efficiency and consistency in cable preparation by delivering clean sheath stripping and precise dielectric coring. Its all metal construction and drill adapter support reliable performance in demanding field environments.
At a Glance
• Coring, stripping, and chamfering tool for 1160 kcmil cables
• Supports manual or drill driven operation
• Heat treated, replaceable sheath cutting blade
• All metal construction with color coded guide sleeves
• Strip stops available for multiple strip lengths
• Compatible with CommScope P3 1160 and Times Fiber TX cables
