Handheld Singlemode OTDR (Wavelength 1310/1550)
DESCRIPTION

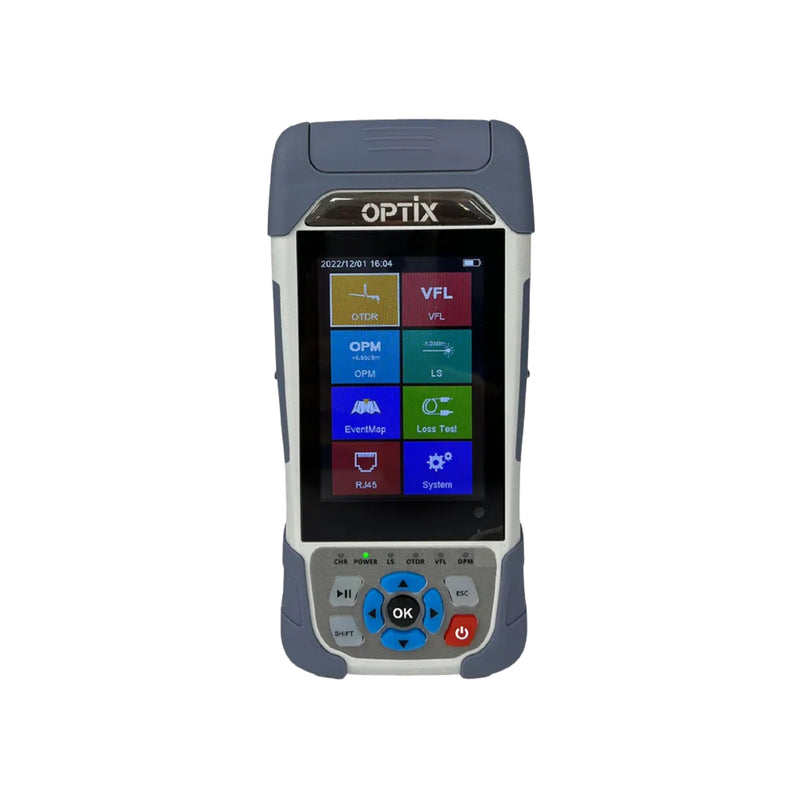

The WRX1000H series handheld optical time domain reflectometer (OTDR) offers preciseĀ measurement of fiber length, splice loss, and the location of fiber faults. It features a 3.5-inchĀ capacitive touch screen and integrates multiple functions, including OTDR, event map, OPM, LS,Ā VFL, RJ45 Sequence Test, optical loss test, and a flashlight. The touchscreen allows for simple andĀ efficient operation through single parameter setting and intelligent measurement.
Key specifications of the WRX1000H include a dynamic range of 24dB, an event dead zone of lessĀ than 2.5m, and an attenuation dead zone of less than 8.0m, ensuring accuracy and reliability inĀ field use. With a high sampling rate of 128k, it can detect defects as small as 1 meter. It supportsĀ external USB storage, capable of storing up to 1000 test curves, and is equipped with a 4000mAhĀ high-density polymer lithium battery that provides up to ten hours of testing time and twenty hoursĀ of standby time with intelligent power saving management. Additionally, the filter model supportsĀ online testing with a maximum online power of -2dB.
FEATURES
- WRX1000H series handheld optical time domain reflectometer (OTDR) offers precise measurement of fiber length, splice loss, and fiber fault location
- 3.5ā capacitive touch screen with zoom in/out curve functionality
- 2.5m Event Dead Zone
- Maximum dynamic range of 24 dB and a high sampling rate of 128k, enabling detection of defects as small as 1 meter.
- Supports external USB storage devices, with a capacity of up to 1000 test curves.
- Supports Single Mode 1310/1550nm, 1310nm, 1550nm, 1610nm, 1625nm, and 1650nm wavelengths.

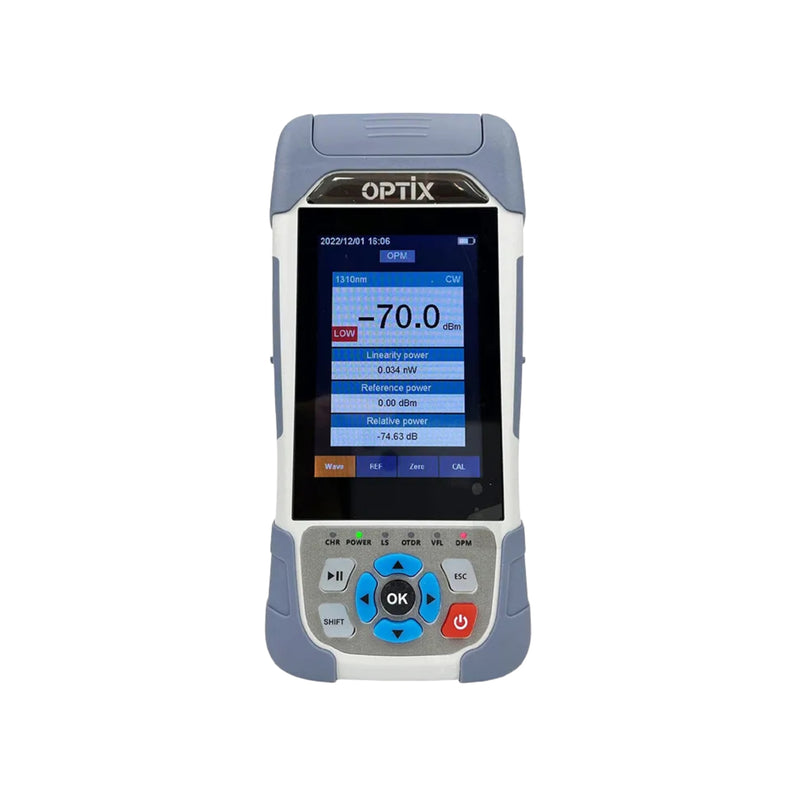

- Includes OTDR, Event Map, OPM, LS, VFL, RJ45 Sequence Test, Optical Loss Test, and Flashlight.
- 4000mAh lithium battery, providing ten hours of testing.

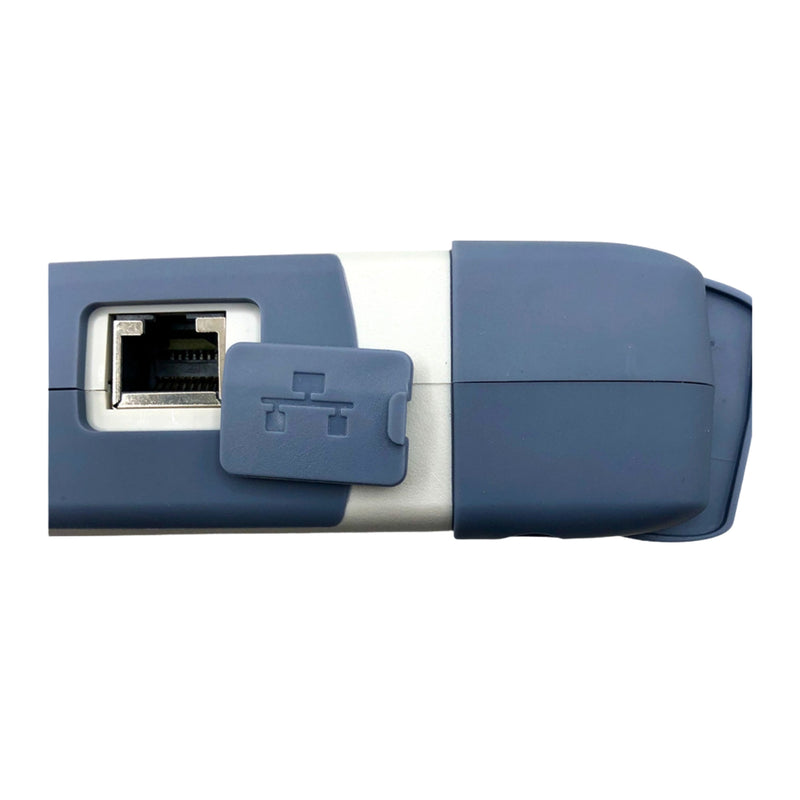

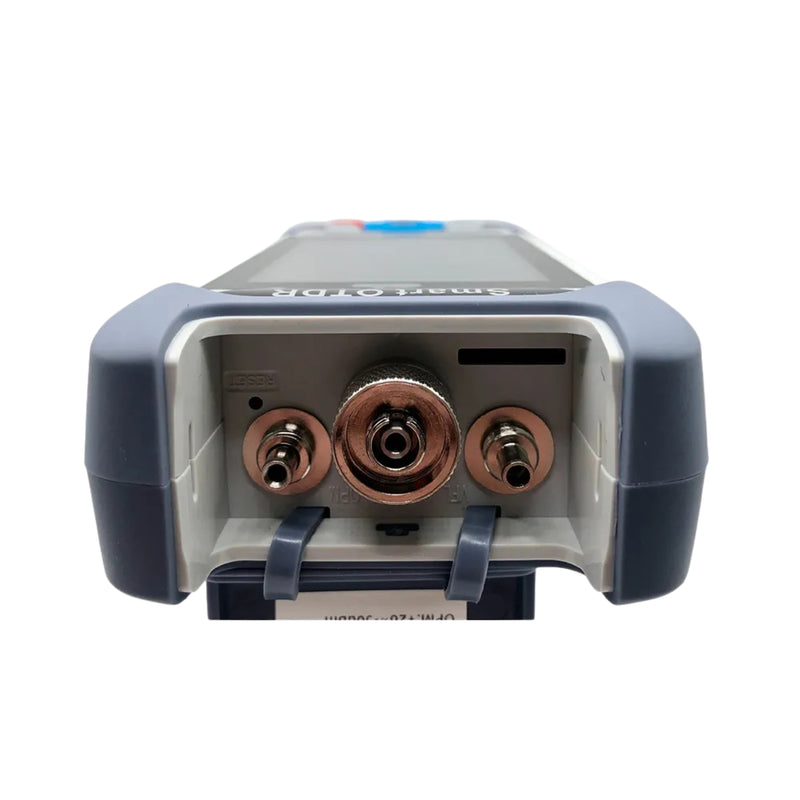

- Ports include Type C USB interface, OTDR/LS interface, VFL interface, OPM interface, and RJ45 Line Sequence interface.
- High-resolution color LCD display for easy and accurate viewing of test results.
- Automatic analysis of results.
PORTS
SPECIFICATIONS
Common Questions About Handheld Singlemode OTDR WRX1000H-D
A handheld OTDR is used to measure fiber length, splice loss, attenuation, and to locate faults along a fiber optic link without disconnecting the network.
What wavelengths does the WRX1000H-D support?
The WRX1000H-D supports single mode testing at 1310nm and 1550nm, making it suitable for access and distribution fiber networks.
What makes this OTDR suitable for field use?
Its compact handheld design, 3.5 inch touchscreen, automatic analysis, and long battery life make it ideal for field technicians.
What types of tests can this unit perform?
The WRX1000H-D performs OTDR testing, event mapping, optical power measurement, light source testing, visual fault location, optical loss testing, and RJ45 sequence testing.
At a Glance
ā¢ Handheld singlemode OTDR with touchscreen display
ā¢ Supports 1310nm and 1550nm wavelengths
ā¢ 24 dB dynamic range for accurate fault detection
ā¢ Event dead zone under 2.5 meters
ā¢ Stores up to 1000 test curves via USB
ā¢ Up to ten hours of testing per charge
