OPTIX AMERICA | Mini Optical Fiber Identifier for 250µm, 900µm, 2mm, and 3mm | #OFI-28M
OPTIX AMERICA | PART #OFI-28M

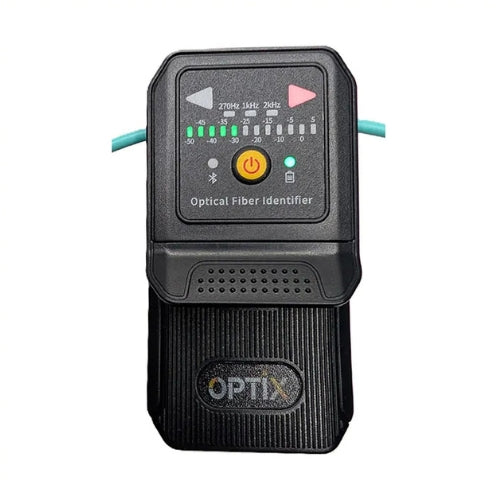

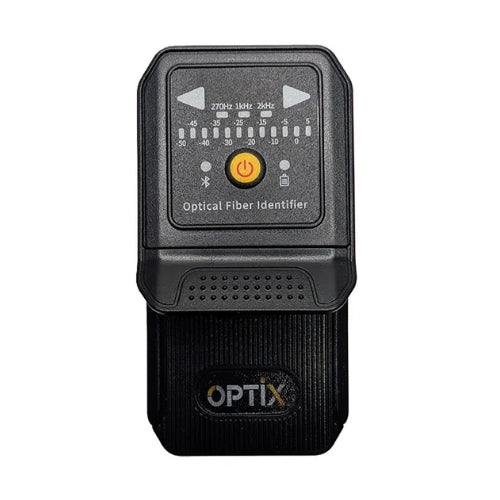

Mini Optical Fiber Identifier for 250µm, 900µm, 2mm, and 3mm
DESCRIPTION
The OPTIX America mini optical fiber identifier features a compact, convenient design ideal for field use. It accurately detects attenuation, signal direction, and approximate optical power through macrobending measurement on 250µm, 900µm, 2mm, and 3mm diameter fiber cables. The unit supports tone identification at fixed frequencies of 270Hz, 1kHz, and 2 kHz, and detects both the direction and intensity of optical signals with insertion loss of less than 1dB at 1310nm and 1550nm. A bell-shaped groove fiber clamp ensures low insertion loss while preventing damage to the fiber. The identifier is powered by a built-in 500mAh lithium battery that provides up to 24 hours of operation and recharges conveniently via a Type-C interface. A universal adapter accommodates multiple fiber diameters without the need to change blocks, and the unit is supplied with a protective soft carrying case.
FEATURES
- Mini optical fiber identifier with a compact, convenient design for field use
- Detects attenuation, signal direction, and approximate optical power using
macrobending measurement - Compatible with 250 µm, 900 µm, 2 mm, and 3 mm diameter fiber cables
- Tone identification at fixed frequencies of 270 Hz, 1 kHz, and 2 kHz
- Detects optical signal direction and intensity with insertion loss less than 1 dB at 1310 nm and 1550 nm
- Bell-shaped groove fiber clamp ensures low insertion loss and prevents fiber damage
- Universal adapter supports multiple fiber diameters without changing blocks
- Built-in 500 mAh lithium battery provides up to 24 hours of operation
- Type-C charging interface for convenient recharging
- Includes a protective soft carrying case
SPECIFICATIONS
Common Questions About the OPTIX America Mini Optical Fiber Identifier
What is the OPTIX America Mini Optical Fiber Identifier used for?
The OPTIX America Mini Optical Fiber Identifier is used to detect signal presence, direction, and optical power in live fiber without interrupting service.
Who is this optical fiber identifier designed for?
This tool is designed for fiber technicians, network installers, and maintenance crews working with singlemode and multimode fiber systems.
What makes this fiber identifier different from standard test tools?
This unit uses macrobending measurement to detect signals without disconnecting fiber, supports multiple fiber sizes with a universal adapter, and provides tone detection for quick identification.
At a Glance
• Optical fiber identifier for live fiber signal detection
• Detects signal direction, attenuation, and optical power
• Compatible with multiple fiber sizes using universal adapter
• Rechargeable battery with up to 24 hours of operation
