VIAVI | High Split Meter for Spectrum Contractors | #ONX-620D31-4220-1012-BAS

VIAVI | PART #ONX-620D31-4220-1012-BAS

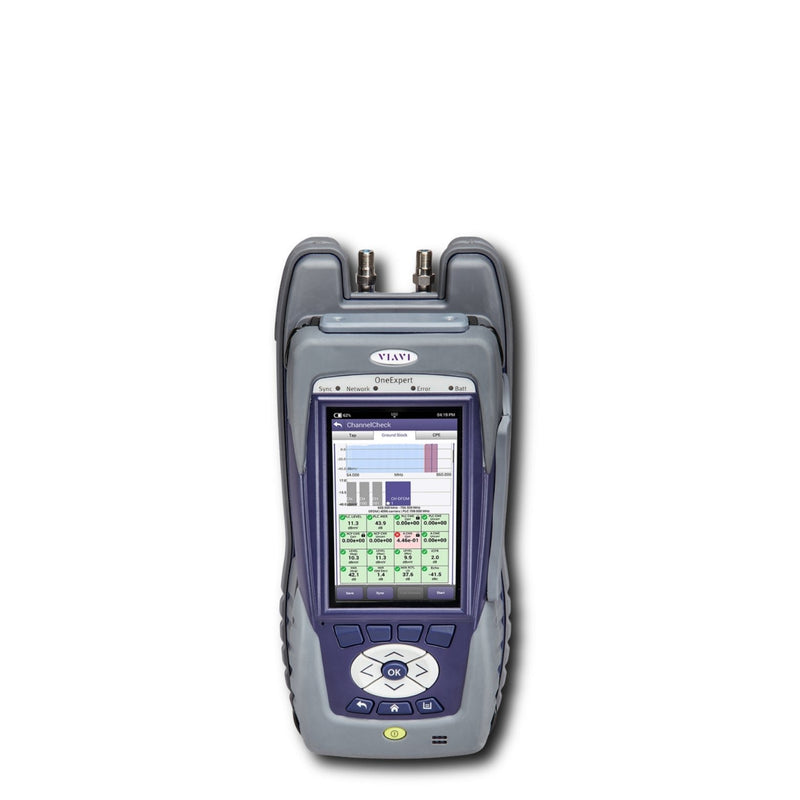

High Split Meter for Spectrum Contractors

DESCRIPTION

High Split Meter (204 MHz) for Spectrum-Charter Contractors, including case. This instrument is highly advanced for reading fiber optics and taking measurements.  Choose the VIAVI ONX-620 CATV High Split Meter by VIAVI for commercial cable television and home network repair and services. Troubleshooting time is reduced by a fraction thanks to the speed and efficiency of this meter. The VIAVI ONX-620 CATV Meter is also fully deployable for automated testing to reduce human error.

PLEASE NOTE: Meters are for use by SPECTRUM CONTRACTORS ONLY. The information below MUST be submitted before the product can be shipped.

______________________________________________________

• Company Name:
• Company Address Street:
• Company Address City:
• Company Address State:
• Company Address Zip:
• Company phone:
• Company email:

** IF YOU ARE NOT THE MAIN/PRIMARY COMPANY ANSWER BELOW

• Main/Primary Company Name here
• Primary Contact Name:
• Primary Contact Phone:
• Primary Contact Email:

Submit your completed form to orders@destinysolutions.us. Please allow 48–72 hours for contractor verification.

OVERVIEW

• Fix problems right—the first time. The OneExpert CATV signal analysis meter  platform makes every technician/contractor an expert by verifying network performance and making troubleshooting simpler, faster, and more powerful than ever
• A multi-touch, user-friendly interface and OneCheck™ automated tests ease complex tasks with a simple dashboard with clear pass/fail results. And, its future-proof modularity ensure years of use supporting cable television and home networks.
• The OneExpert platform empowers techs for quick, accurate testing and troubleshooting, with models/packages designed to address the specific needs of different work groups.
• As technology evolves, the future-proof platform adapts easily and capably with thorough state-of-the-art tests. Service providers must be able to adapt, quickly deploy new services and operate at high efficiency in order to maintain the highest levels of reliability and customer satisfaction.

View Data Sheet

HIGHLIGHTS

• Simple – Every technician is an expert

• Channel Plans automatically built by the meter

• Dashboard simplifies and identifies RF issues

• Expertise is built in – Session Expert™  helps technicians identify issues and fix them

• Connects to the cloud – quickly and easily – ensuring consistency via StrataSync™

• Fast – Testing and troubleshooting is faster than ever

• Downstream scan including MER/BER in about 60 seconds

• Ingress and Downstream testing performed simultaneously

• 15x more Downstream coverage in half the time of current generation meters

• Powerful – Get the most from your investment

• DOCSIS 3.1 physical and service performance testing

• DOCSIS 3.0, 32x8 DOCSIS, Wi-Fi, Ethernet 1Gbps capable

• Add-on module capable to support future needs

• Field exchangeable DOCSIS and RF unit reduces cost of ownership

• Network expansion-ready with dual diplexers to support 42 and 85 or 65 and 85 MHz networks

APPLICATIONS

• Troubleshoot service issues between the TAP, Ground Block and CPE

• Identify and fix intermittent issues related to QAM carriers and the home network

• Verify WiFi signal strength and availability in 2.4GHz and 5GHz networks

• Business Service turn-up and troubleshooting

• Gigabit service testing with TrueSpeed^™

• PON and RFOG installation and troubleshooting including inspection, power levels, and RF performance

KEY FEATURES

• DuoPort^™ design with PosiScan™  -- a VIAVI Exclusive -- ensures proper connection and testing of Ingress Scan and Downstream tests, helping techs do the job right the first time

• AutoChannel^™ - Automatically identifies channel plan

• Cloud Enabled via StrataSync™ to track test results and compliance

• OneCheck dashboard clearly displays summarized results of the entire lineup, including MER/BER in about 60 seconds, with simple identification of faults needing attention

• Expertise Built In – Session Expert -- offers background analysis that identifies issues consistently between technicians, suggests actions that help technicians fix problems, and provides VIAVI expertise and algorithms built into a simple test

• Built in Usage Guide – learn to use the meter on the job

• Advanced capabilities:

  • DOCSIS 3.1 physical and service performance

  • 32x8 DOCSIS for Gigabit speeds

  • WiFi 2.4GHz and 5GHz, wireless personal area network

  • Dual GigE Ethernet with optional TrueSpeed™ for testing at ONT or CM

  • Optional Fiber Scope and Power Meter

• This product is StrataSync-enabled

Common Questions About the VIAVI ONX 620 High Split Meter for Spectrum Contractors

What is the VIAVI ONX 620 High Split meter used for

The VIAVI ONX 620 High Split meter is used for installation, service activation, and advanced troubleshooting of DOCSIS cable networks that operate with expanded upstream frequencies up to 204 MHz. It is commonly required by Spectrum Charter contractors working on upgraded cable plant.

What does high split 204 MHz mean

High split expands the upstream return path from traditional ranges to 204 MHz, allowing significantly more upstream capacity. This meter is designed to properly test, certify, and troubleshoot networks that have been upgraded for high split DOCSIS performance.

Who should use the ONX 620 High Split BAS package

This meter is ideal for Spectrum Charter contractors, cable technicians, and service providers responsible for residential and commercial cable installs, maintenance, and troubleshooting on high split networks.

What makes the ONX 620 different from basic CATV meters

The ONX 620 combines DOCSIS 3.1 testing, automated workflows, cloud connectivity, and simultaneous ingress and downstream analysis. It reduces testing time, minimizes human error, and delivers consistent pass or fail results across technicians.

How the ONX 620 Supports High Split DOCSIS Network Testing

The VIAVI ONX 620 OneExpert CATV Signal Analysis Meter is built to support modern cable plant upgrades and contractor workflows. Automated OneCheck testing simplifies complex RF and DOCSIS measurements into a clear dashboard, allowing technicians to quickly verify network performance and isolate issues.

With high speed downstream scans that include MER and BER in about 60 seconds, dual port testing for ingress and downstream, and Session Expert guidance built directly into the meter, technicians can troubleshoot faster and with greater confidence.

StrataSync cloud connectivity ensures test results, configurations, and assets remain consistent across crews, supporting compliance and long term network reliability as technology evolves.

At a Glance

• High split CATV signal analysis meter with upstream support to 204 MHz
• Designed for Spectrum Charter contractors and DOCSIS network upgrades
• Supports DOCSIS 3.1 physical and service performance testing
• Simultaneous ingress and downstream testing with DuoPort and PosiScan
• Automated OneCheck workflows with clear pass or fail results
• Fast downstream scans with MER and BER in about 60 seconds
• Cloud enabled via StrataSync for reporting, asset tracking, and compliance
