JONARD | Mid Span Slit & Ring Tool (5 mm-10 mm) | #MS-326
JONARD TOOLSÂ | PART #MS-326
Mid Span Slit & Ring Tool (5 mm-10 mm)
DESCRIPTION
Designed to remove jackets from fiber optic cables specifically designed for cables used with microducts. The tool has both slitting and ringing blades allowing easy mid span access. This tool features the following:

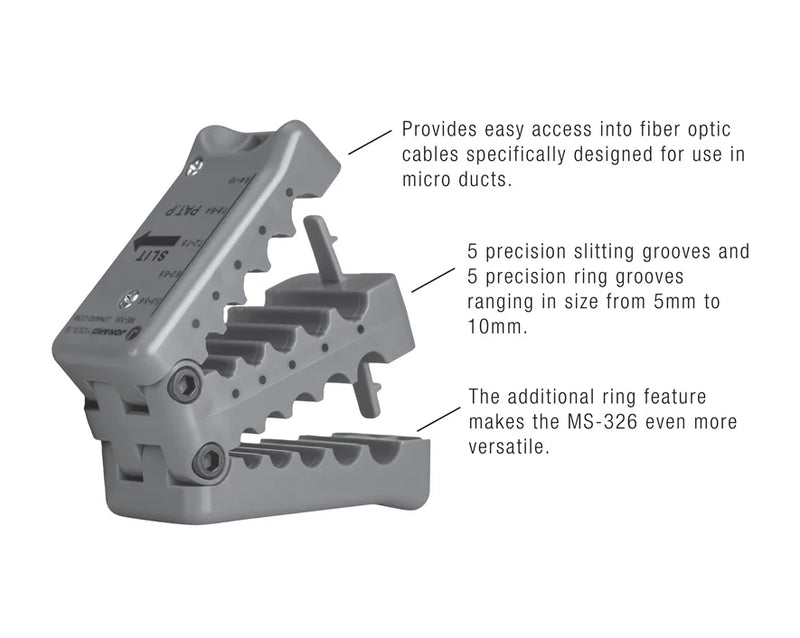

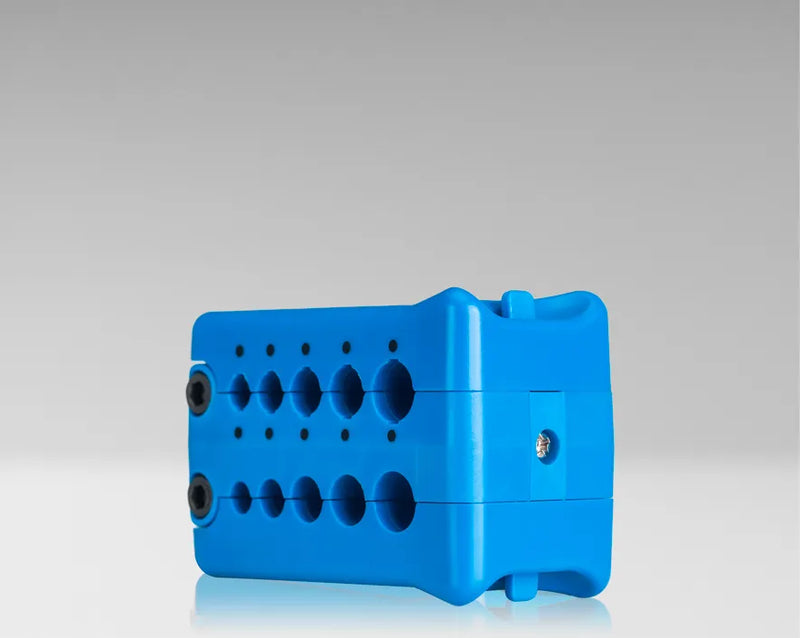

- Consists of 5 precision slitting grooves and 5 precision ring grooves ranging in size from 5 mm to 10 mm

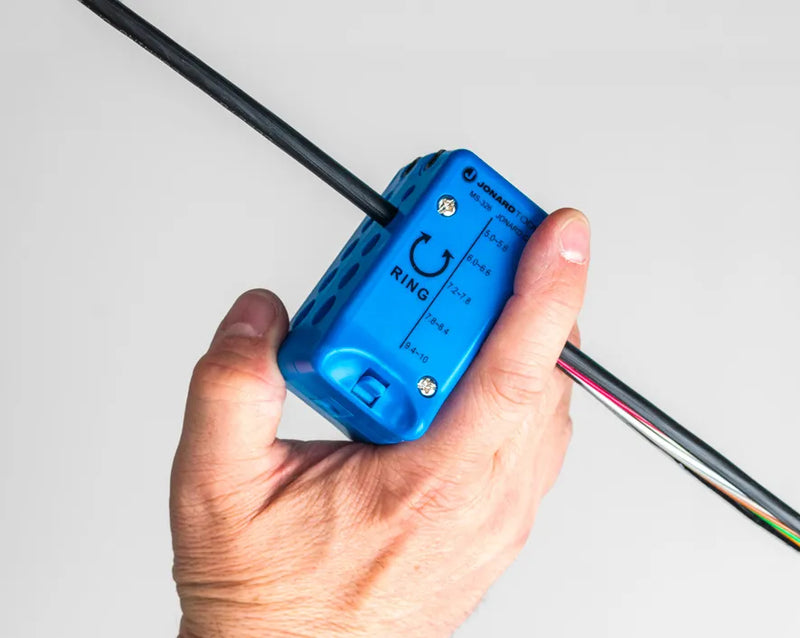

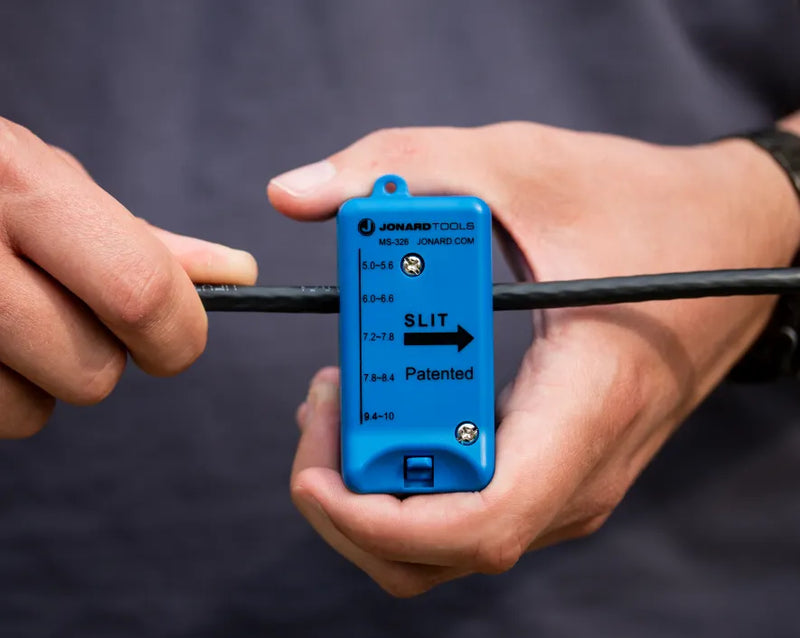

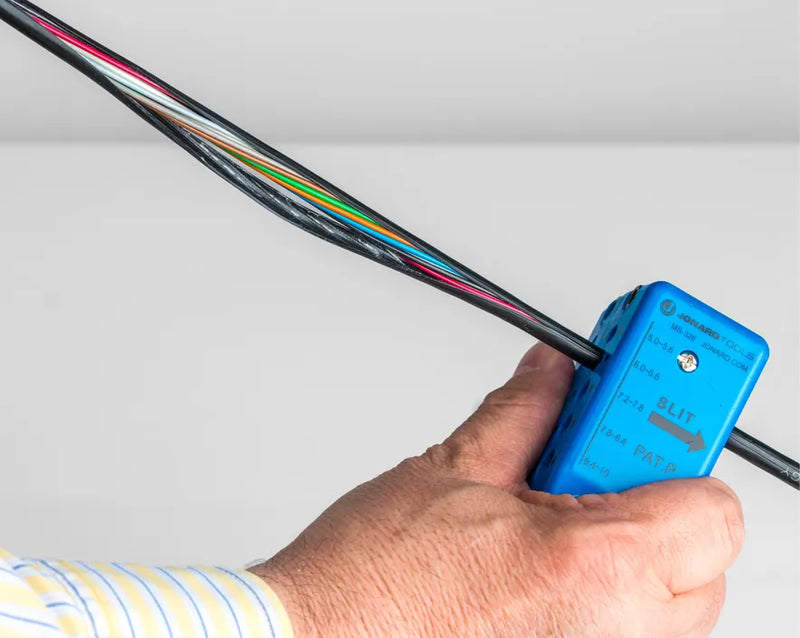

- One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
- Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for use on Corning fiber cables such as MiniXtend® binderless FastAccess®, HD MiniXtend®, and other similar style cables
- Lifetime Warranty
Groove Sizes: 5.0-5.6 mm | 6.0-6.6 mm | 7.2-7.8 mm | 7.8-8.4 mm | 9.4-10 mm
Data Sheet - Mid Span Slit & Ring Tools
SPECIFICATIONS
| Cut Type |
Slit, Ring |
|---|---|
| Number of Slitting Grooves |
5 |
| Number of Ringing Grooves |
5 |
| Cable Type |
Thin-walled Jackets |
| Cable Diameter |
5 mm-10 mm |
| Dimensions | 3.14 in x 1.53 in x 2.07 in (7.96 cm x 3.87 cm x 5.26 cm) |
| Weight | 0.22 lb (98.064 g) |
| UPC # | 811490019263 |
Â
Common Questions About the MS 326 Mid Span Slit and Ring Tool
What is the MS 326 Mid Span Slit and Ring Tool used for?
The MS 326 is used to slit and ring thin walled fiber optic cable jackets to access fibers during mid span installation and maintenance.
Who is this tool designed for?
This tool is designed for fiber technicians and telecommunications crews working with Corning MiniXtend binderless FastAccess, HD MiniXtend, and similar thin walled fiber cables.
What makes the MS 326 different from standard mid span slitting tools?
The MS 326 combines precision slitting and ring cutting in one compact tool, allowing controlled longitudinal and radial cuts without damaging fibers.
At a Glance
• Mid span slit and ring tool for 5 mm to 10 mm thin walled fiber cable jackets
• Designed for Corning MiniXtend and similar fiber cable types
• Combines slitting and ring cutting in one lightweight tool
• Compact design with precision grooves for controlled fiber access
