JONARD | MagneTriever® | #MRS-24

JONARD TOOLS | PART #MRS-24

MagneTriever®

DESCRIPTION

The MRS-24 - MagneTriever® is the ideal tool to effortlessly fish wires through walls. The system features the following

• 10’ long ball chain can navigate through the wall with ease

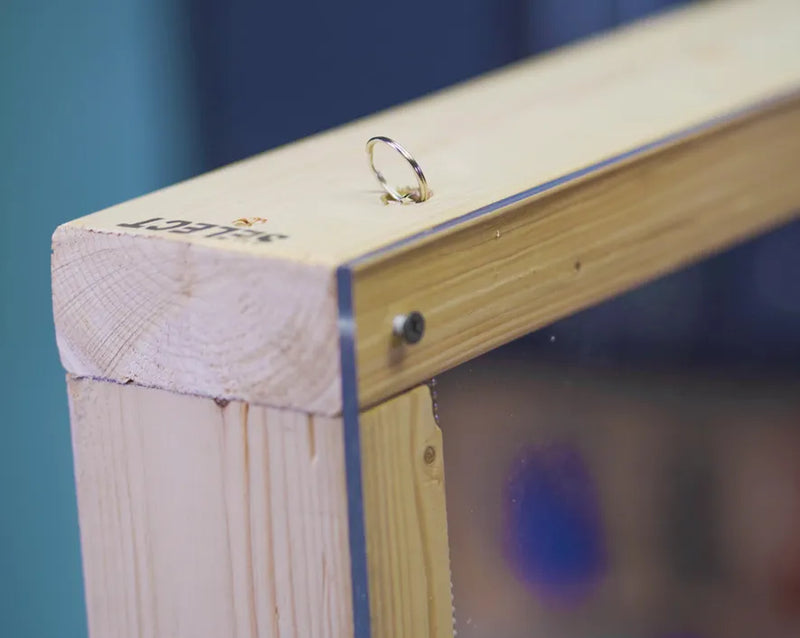

• Eyelet on the ball chain connects to most wires and 3/4" stop ring prevents it from falling into the wall

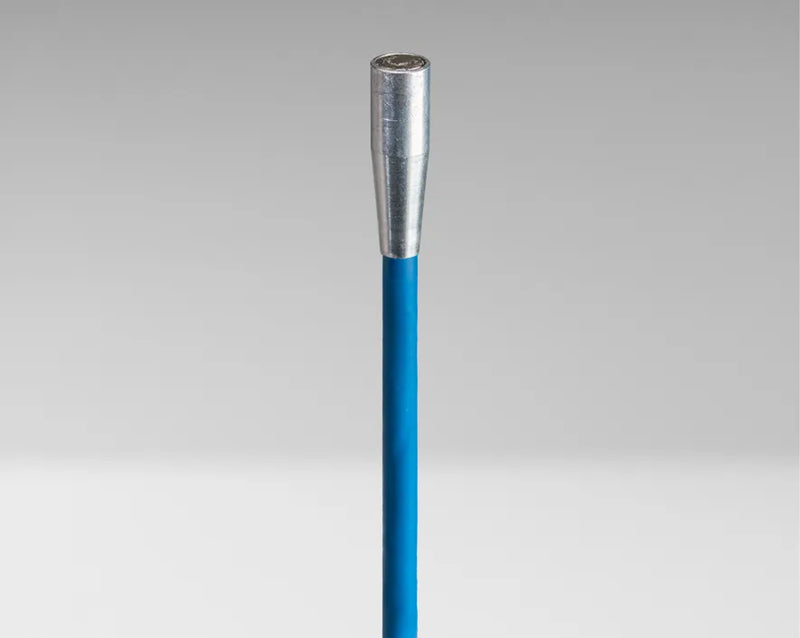

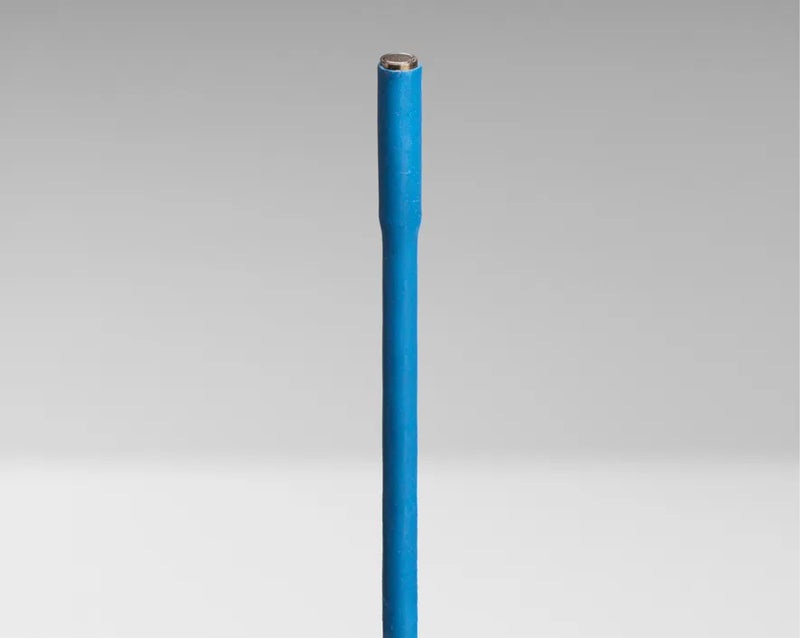

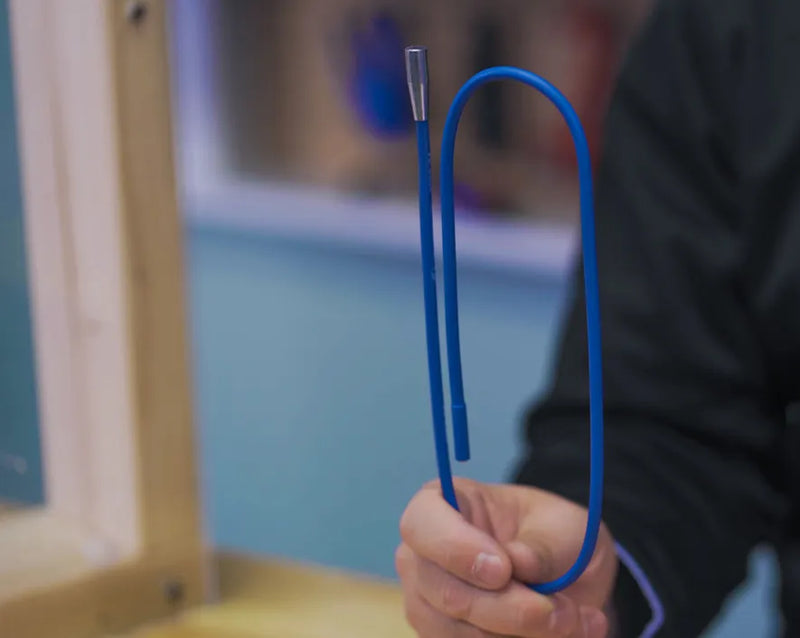

• 24” flexible magnetic retriever has high strength neodymium magnets and can be bent into any shape to retrieve ball chain

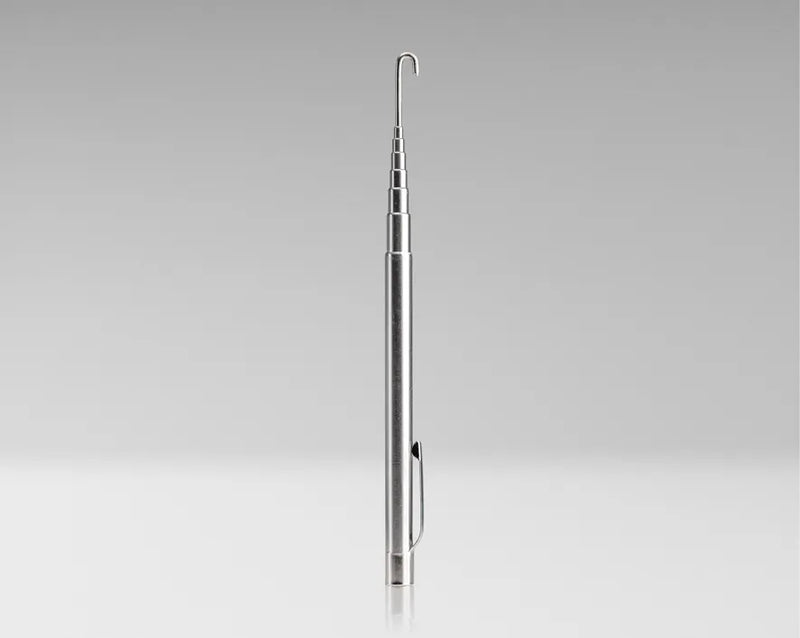

• Expandable retriever hook can extend up to 18” to grab the ball chain with ease

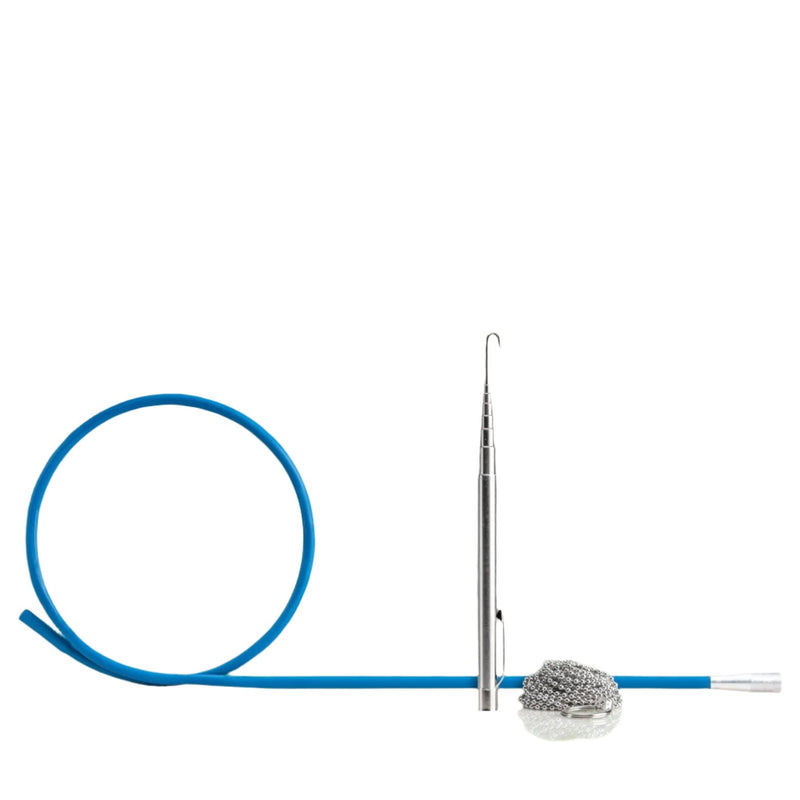

The MRS-24 includes:

• 24" flexible magnetic retriever

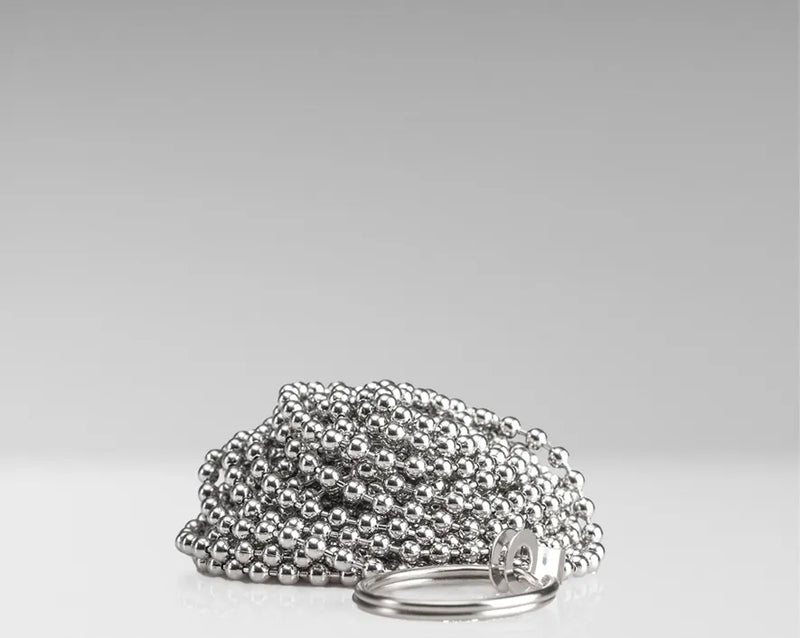

• MRS-BC10 10' ball chain with 3/4” stop ring
• MRS-RH20 expandable retriever hook
• Storage pouch

To fish a wall using the MRS-24 - MagneTriever®:

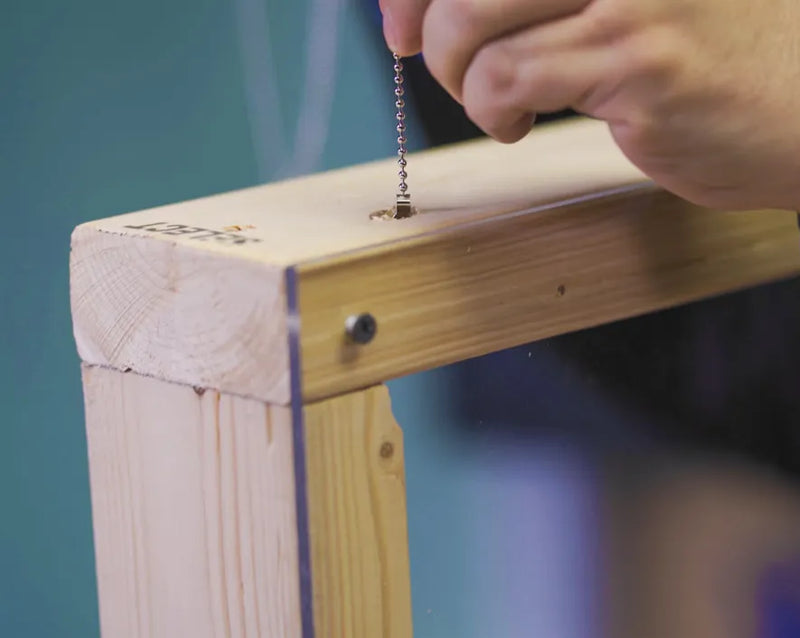

1. Drill a hole in your wall or top plate, then drop the eye loop end of the ball chain down the wall. The chain will collect at the bottom of the wall.
2. Locate your wall fish location and take the baseboard off the wall, scoring the wall with a knife first so you do not peel the paint and do not break the baseboard.
3. Drill a hole so you can fish the ball chain out using the MRS-24 - MagneTriever®.

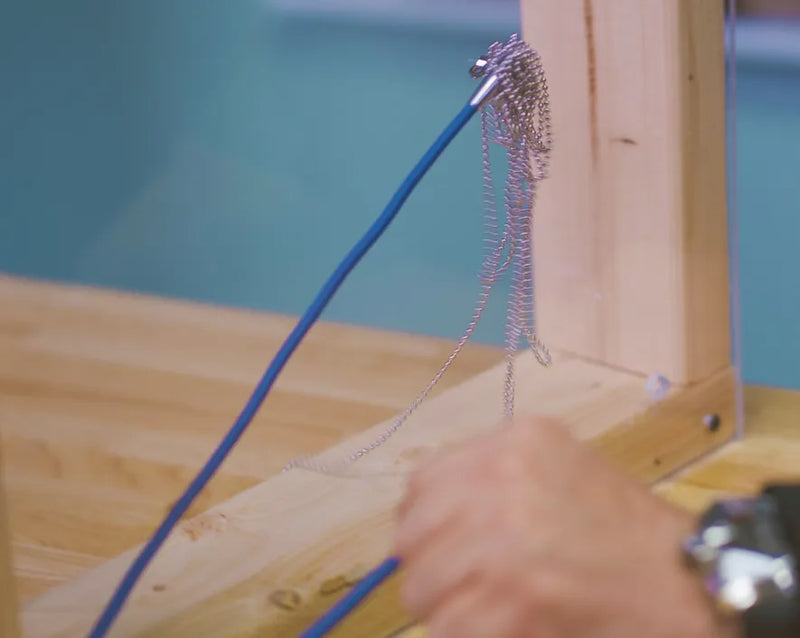

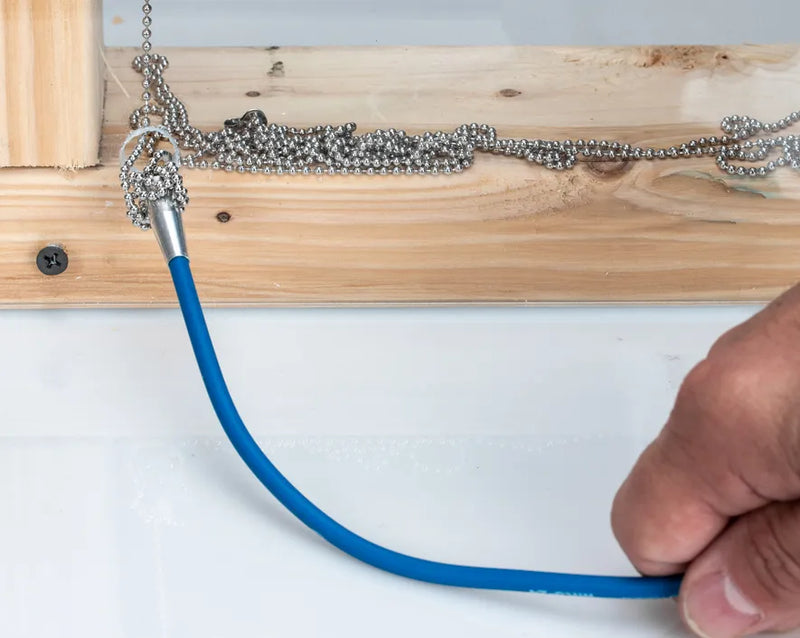

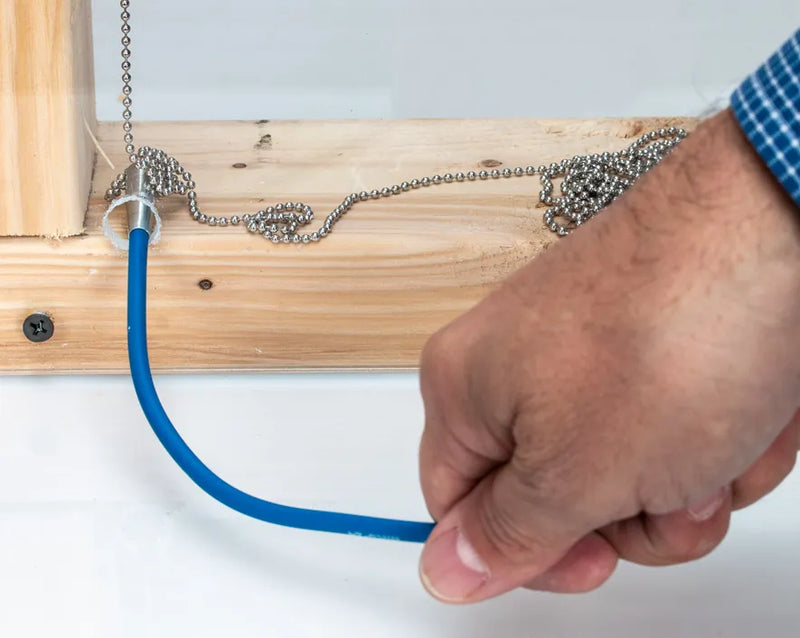

4. Make sure the MRS-24 is shaped like a “Z” or “S” so you can go back and forth to find your ball chain Once you find the ball chain, carefully bring the ball chain to the hole. The chain will not completely come out of the hole.

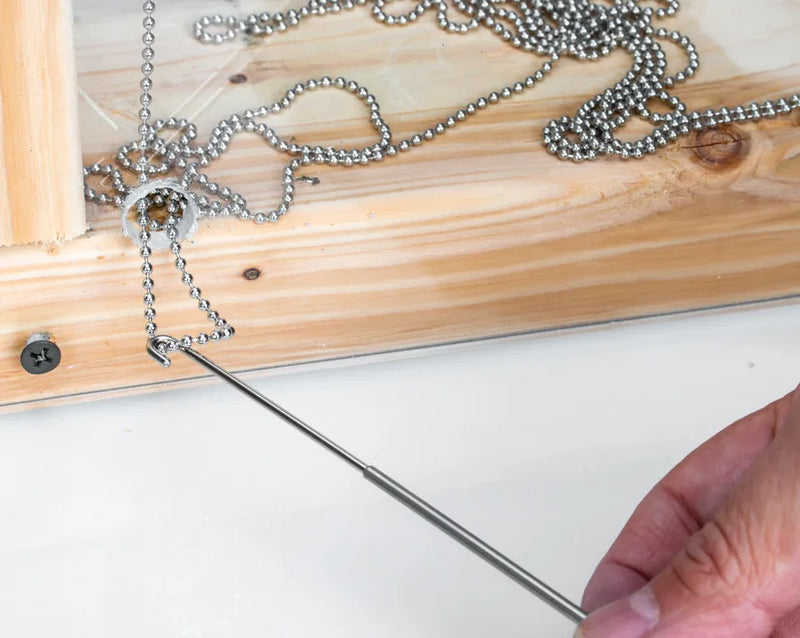

5. Use the expandable retriever hook and pull the chain out of the hole.
6. Tie a pull string on the end of the ball chain eyelet. The other end of the pull string is connected to a wire to be fished in the wall. This helps in case you need to pull the cable through rough spots in the wall cavity so you do not break your ball chain.

Length: 24" (60.96cm)

DOCUMENTS

MRS-24 MagneTriever® Datasheet

SPECIFICATIONS

Common Questions About the MRS 24 MagneTriever

What is the MRS 24 MagneTriever used for?
The MRS 24 MagneTriever is used to fish wires through walls by retrieving a ball chain using a flexible magnetic retriever.

Who is this tool designed for?
This tool is designed for technicians and installers who need to route wires through wall cavities quickly and with minimal wall disruption.

What makes the MRS 24 different from basic wire fishing tools?
The MRS 24 combines a magnetic retriever, ball chain, and expandable hook into one system for controlled, efficient wire retrieval.

At a Glance
• Complete magnetic wire retrieval system for fishing wires through walls
• Includes flexible magnetic retriever, ball chain, and expandable hook
• Strong neodymium magnets allow reliable chain retrieval
• Designed for controlled wire routing with minimal wall damage
