Miniature USB 2.0 Power Meter | #MP-60A

VIAVI | Miniature USB 2.0 Power Meter | #MP-60A

by VIAVI
Sale Sale
$440.00
$440.00 - $440.00
$440.00
$421.27
$421.27 - $421.27
$421.27

VIAVI | PART #MP-60A

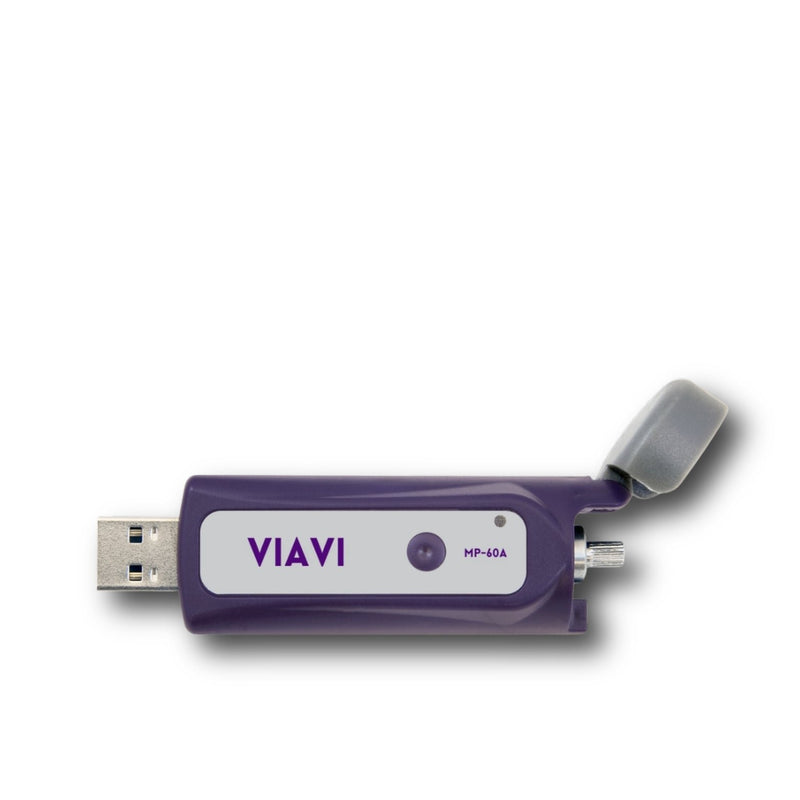

Miniature USB 2.0 Power Meter

DESCRIPTION

Measures optical power via a USB 2.0 connection to a PC/laptop/smart device - makes digital processing of optical power measurements possible and integrates directly with the VIAVI FiberChekPRO and FiberChekMOBILE software.

The MP-series Power Meter from VIAVI is a miniature device that measures optical power via a USB 2.0 connection to a PC/laptop/smart device. This unique device makes digital processing of optical power measurements possible and integrates directly with the VIAVI FiberChekPRO and FiberChekMOBILE software, the industry-leading automated fiber inspection and analysis program. Its size, functionality, and ease-of-use makes it an extremely useful and practical tool when testing optical power levels. The simple, straightforward, and intuitive software interface offers a well-organized digital solution to both fiber inspection and test procedures. 850/1300/1310/1490/1550 nm

HIGHLIGHTS

  • Compatible with FiberChekPRO and FiberChekMOBILE fiber inspection and analysis software; integrated reporting capabilities within FiberChekPRO and FiberChekMOBILE
  • Simple, accurate, and instant push-button measurement results can be electronically archived, logged, and printed
  • Dedicated for all single-mode and multimode applications including LAN, TELECOM, CATV, and DWDM testing

APPLICATIONS

  • Measure general power and loss as well as high power applications in long-haul, metro, access and local area networks with wavelengths ranging from 800 to 1650 nm
  • Use with a VIAVI light source to detect modulation frequency and identify individual fibers
  • Integrate with other VIAVI test devices (T-BERD/MTS-5800, SmartOTDR, HST-3000, CellAdvisor, DSAM), PC (FiberChekPRO), or mobile device (FiberChekMOBILE) to run tests, export data, provide certification reports and manage acceptance criteria

KEY FEATURES

  • Lightweight, small form-factor design for ultimate portability
  • Generates measurements in dB, milliwatt, and dBm
  • Automated data logging capabilities
  • Automatic wavelength detection
