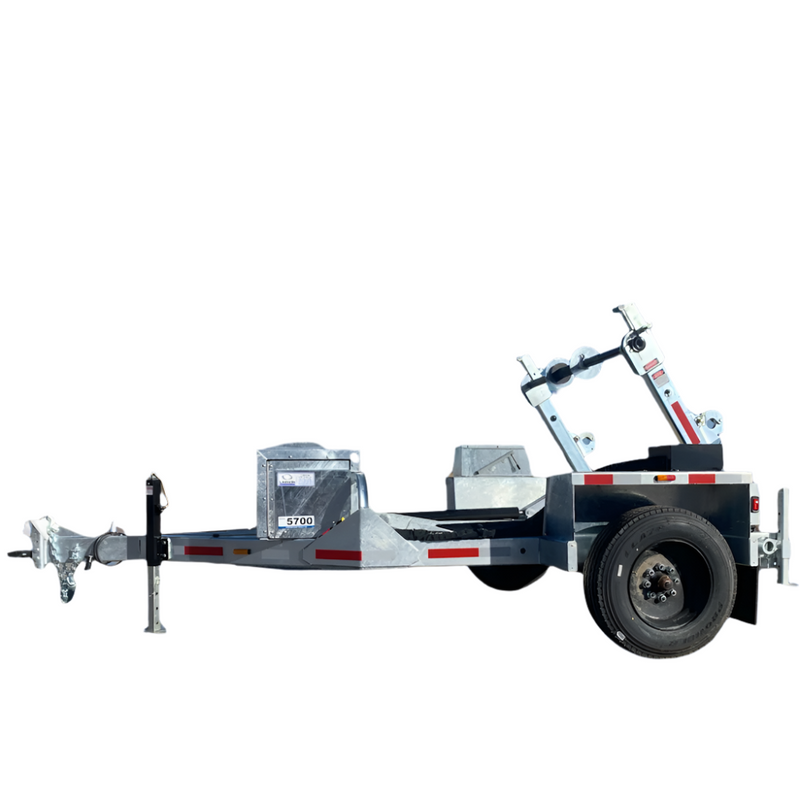

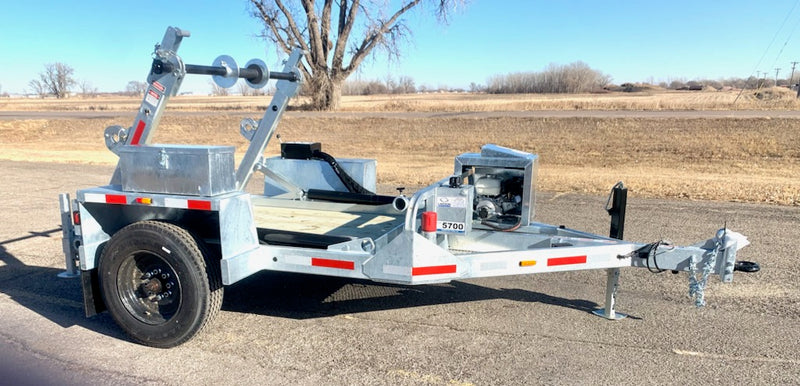

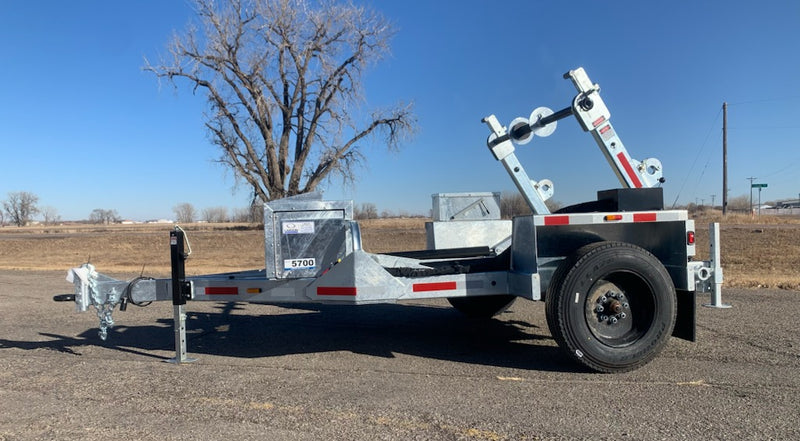

LCT | Cable Trailer (no reel turning capability) | #5700G



Equipped with a reel rack powered by an 8HP Honda engine, the Larson Cable Trailer Model 5700 is a self-contained reel trailer/utility trailer. Add on a 2-yard dumpster and now you can haul/dispense fill material for setting poles, patching potholes, hauling off excess material or a variety of other uses. Lots of potential packed into this simple, yet effective, trailer!


Both the LCT-7500 and LCT-5620 models come standard with galvanized coating and include one arbor, which includes a set of bushings and lock collars for a single reel. Auxiliary quick couplers for operating hydraulic tools, a hand brake on the reel turning axle, 8000# jack, 3"- 14k pintle hitch, J-Rated tires, class IV receiver, and a wood deck, plus many more items that make a Larson Cable Installation Trailer the original and best tool on the market!


This model comes equipped with an 8,000 lb Dexter Torflex Axle giving you a 5,700 lb payload, a reel arbor with bushings/collars to load and carry a single reel and a 5'x 6' flatbed.


 To add options, or for questions about the options listed below, please call our Customer Service Team for a custom quote.

812-501-5043 |

Figure 8 Assembly
The Larson Cable Trailer Figure 8 Assembly reduces the time and man power needed to figure 8 cable. The trailer will safely figure 8 cable and rewind cable at approximately 700' per minute. We have demonstrated and tested this device with most of the Fiber optic cable manufacturers and it has been approved as a safe method of figure 8ing many different types of cable, including ribbon fiber. The time and labor savings this accessory provides equals a significant increase in production and decreases down time.

Loading Ramps
To make the flatbed even more practical, we offer optional loading ramps for loading small equipment. Storage areas are built into the trailer.

Dumpster Attachment
With the optional Dumpster Attachment, the Larson Cable Trailer becomes an even more versatile tool. The hydraulic lifting rack handily loads the dumpster onto the trailer, even with the dumpster full. Because of its heavy duty steel construction, the dumpster can handle a wide variety of materials, from excess dirt and gravel to rocks and other debris. The capacity of the dumpster is 2 yards and will operate as a dump truck by fastening to the lower end of the lifting rack.
Level Winder

The Level Winding Device accessory is operated through the auxiliary hydraulics provided by the trailer. It holds any wire or cable in place while level winding back on the reel. This also assists in eliminating the risk of operator injury associated with manually guiding the cable or wire back to the reel.

Tension Brake
While stringing cable or wire overhead, the Tension Brake accessory is an exceptional tool to keep steady tension on the reel when stringing over drive ways and roads.


Cold Weather Start Kit
An optional accessory of the Larson Cable Trailer is the Cold Weather Start Kit. Used for by-passing the hydraulics while warming up the engine.

Articulating Pole for Fiber Blowing & Figure 8-ing
The Articulating pole for the Figure 8 device/blower allows for several different configurations to fit the situation you are working with.

Need to move a pad-mount transformer or string overhead wire? The winch accessory is a very handy tool for many jobs! Also comes in handy when framing poles for overhead wire!

Auto Luber
The Auto-Luber will allow you to add lubricant into the duct during the process without having to shut everything down and stop the momentum. This comes in handy during longer runs or runs with a lot of twists and turns or ups and downs.

Remote Fiber Blowing Package

Portable Hydraulic Power Pack


Diesel Motor
Diesel power now available on either the LCT-7500 & LCT-5620 trailers.


    5700 Specifications
