KLEIN TOOLS | Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote | #VDV526-200
Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote
DESCRIPTION

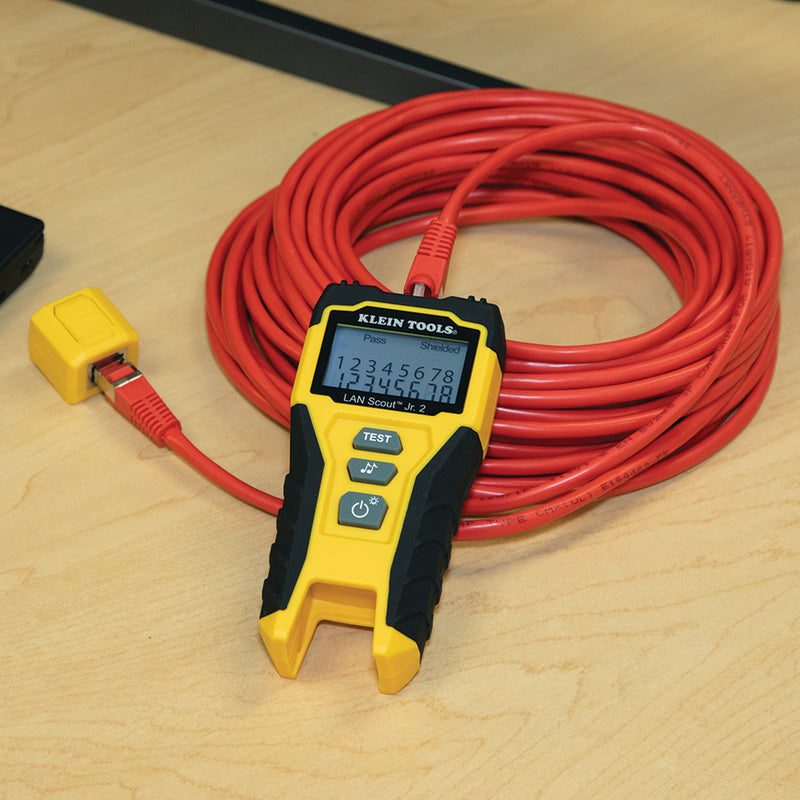

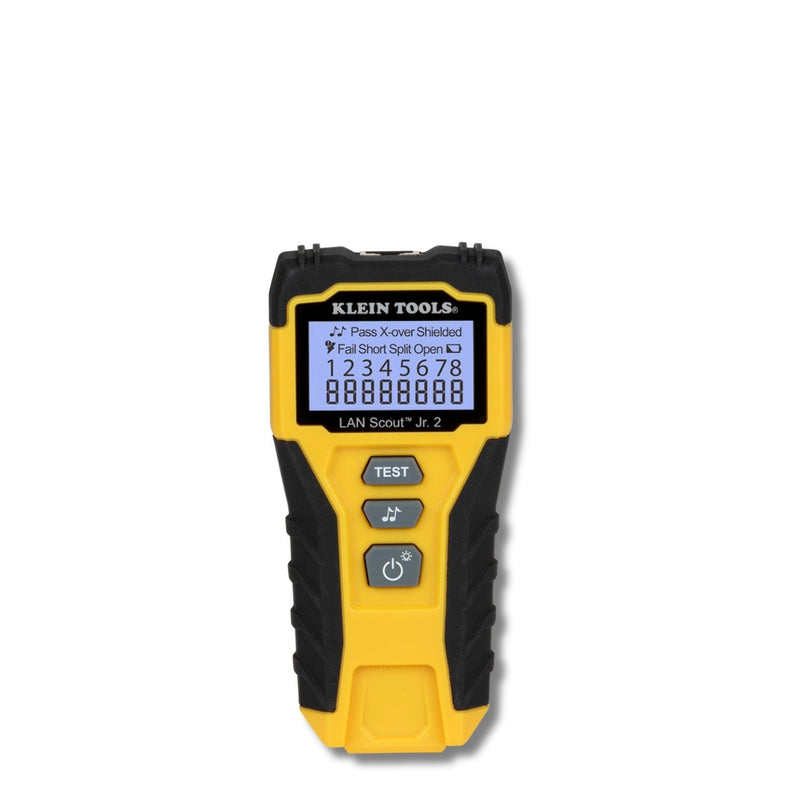

The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.
- Cable tester for data (RJ45) terminated cables and patch cords

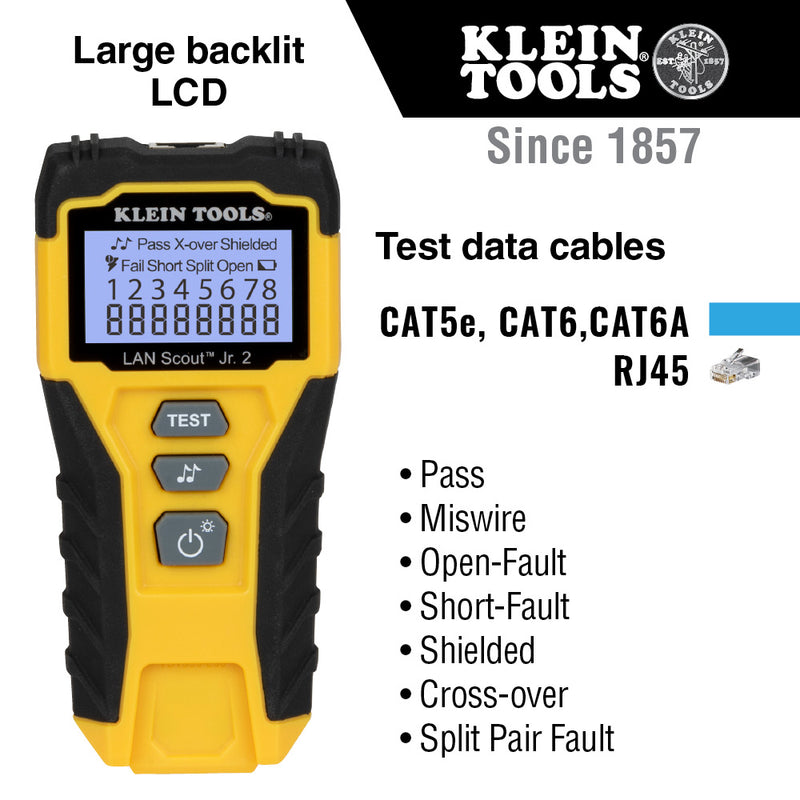

- Large backlit LCD for low lit areas displays pin to pin wiremap results
- Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
- Intuitive user interface features three buttons with simple, easy-to-identify test responses
- Tone on single wire, wire pair or all 8 conductor wires
- Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
- Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
- Soft, slip-resistant, rugged overmold for easy gripping and durability
- Replaceable 2 x AAA batteries (included)

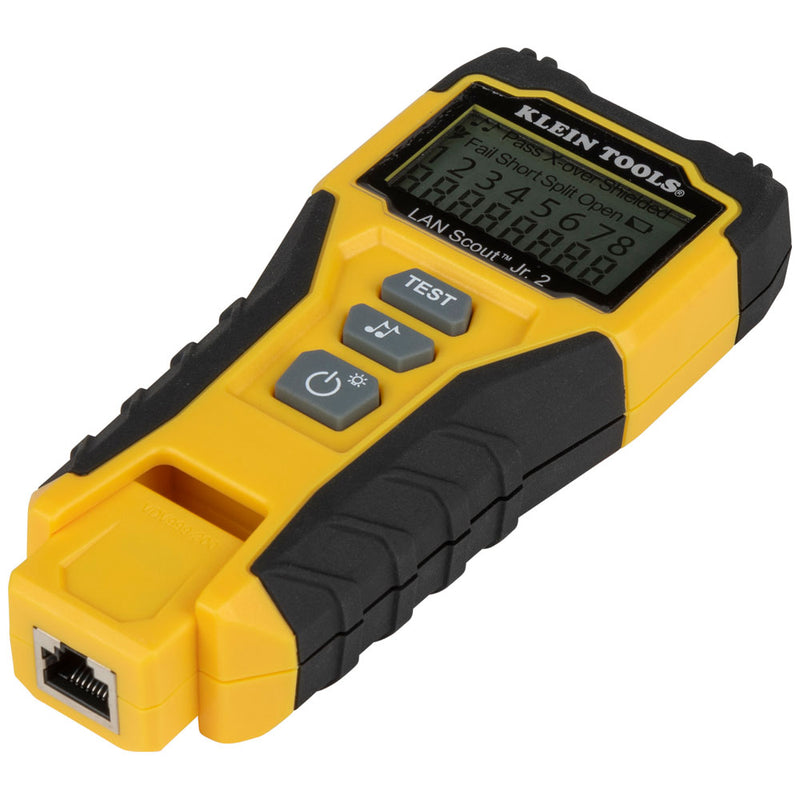

- Replaceable self-storing remote (included)
- Replacement remote available; sold separately (Cat. No. VDV999-200)
SPECIFICATIONS
-
Type: DATA, Voice, LAN
-
Application: Cable Testing
-
Special Features: Backlit LCD
-
Cable Type: Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
-
Overall Length (Inch): 5
-
Overall Height (Inch): 1
-
Overall Width (Inch): 2.5
-
Material: Plastic and Stamped Metal
- Test-n-Map ID Remotes: 1
-
Location ID: No
-
Batteries: 2 × AAA Alkaline
-
Battery Life: Active: 80 hr; Standby: 3 yr.
-
Drop Protection: 2' (0.6 m)
-
Supported Remotes: (1) Self-Storing
-

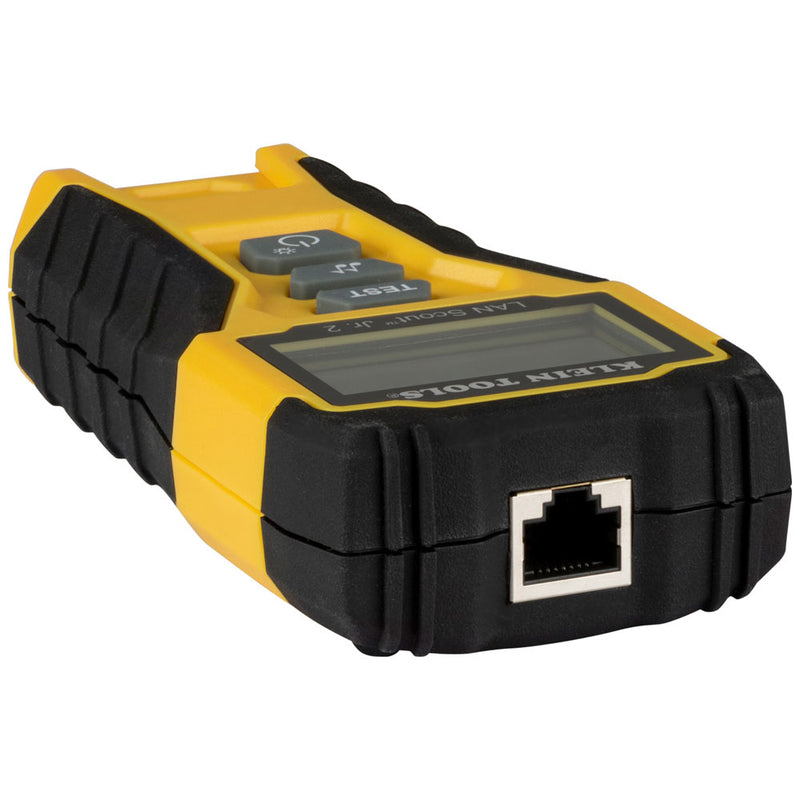

Connection & Adapter Types: RJ45
-
Display: LCD
-
Multiple Style Tone Generator: Yes
-
Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
-
Test & Measure Types: Data, RJ45
-
Included: Tester, Remote, 2 × AAA Alkaline Batteries
-
Weight (oz): 4.3
- UPC: 092644583544
Common Questions About the Klein Tools LAN Scout Jr. 2 Cable Tester
What is the Klein Tools LAN Scout Jr. 2 cable tester used for?
The Klein Tools LAN Scout Jr. 2 cable tester is used to test RJ11, RJ12, and RJ45 voice and data cables for wiring faults such as miswires, opens, shorts, and shield issues.
Who is this cable tester designed for?
This tester is designed for network technicians, telecom installers, electricians, and IT professionals who need a simple, portable tool for verifying Ethernet and voice cable integrity.
What makes the LAN Scout Jr. 2 different from basic cable testers?
Unlike basic testers, this model provides instant LED fault identification, supports CAT3, CAT5e, and CAT6 or 6A cables, includes a built in test remote that stores in the unit, and features auto power off to conserve battery life.
At a Glance
• Cable tester for RJ11, RJ12, and RJ45 voice and data cables
• Tests CAT3, CAT5e, and CAT6 or 6A cabling
• LED indicators show pass, miswire, open, short, and shield faults
• Built in test remote with compact pocket size design
• Auto power off with low battery indicator and 9V battery included
