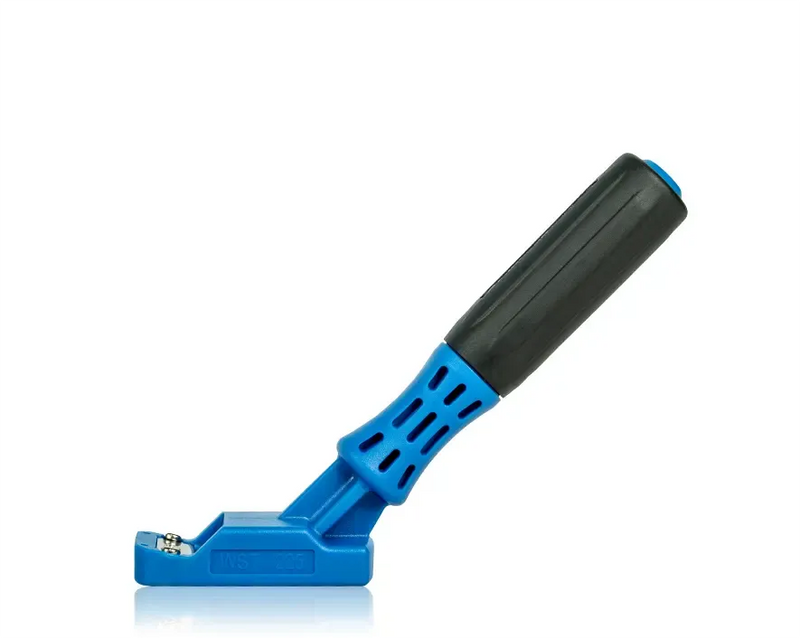

JONARD | Window Shaving Tool | #WST-225
JONARD TOOLS | PART #WST-225

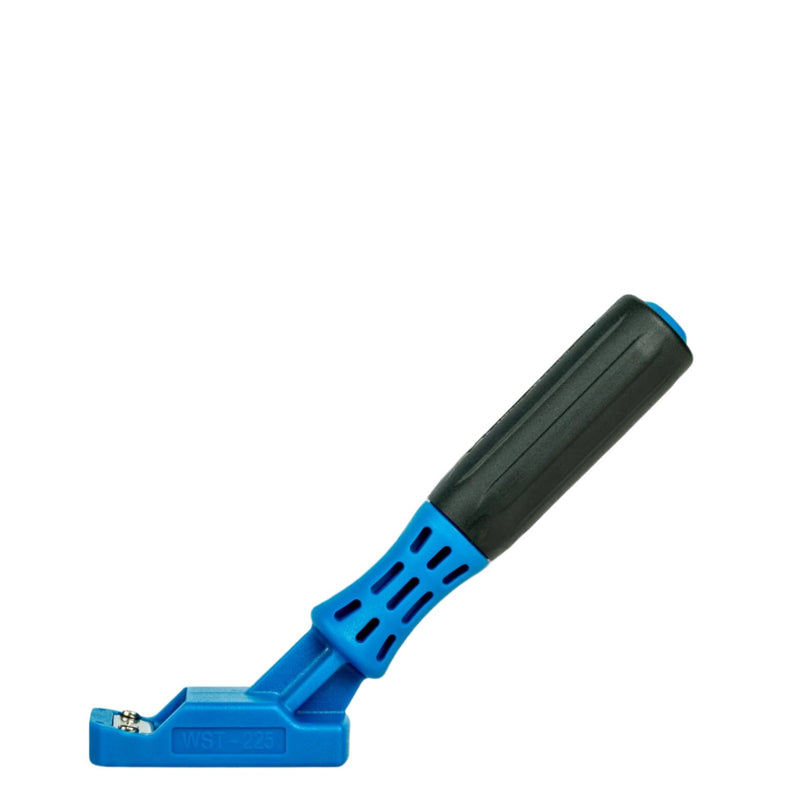

Window Shaving Tool
DESCRIPTION

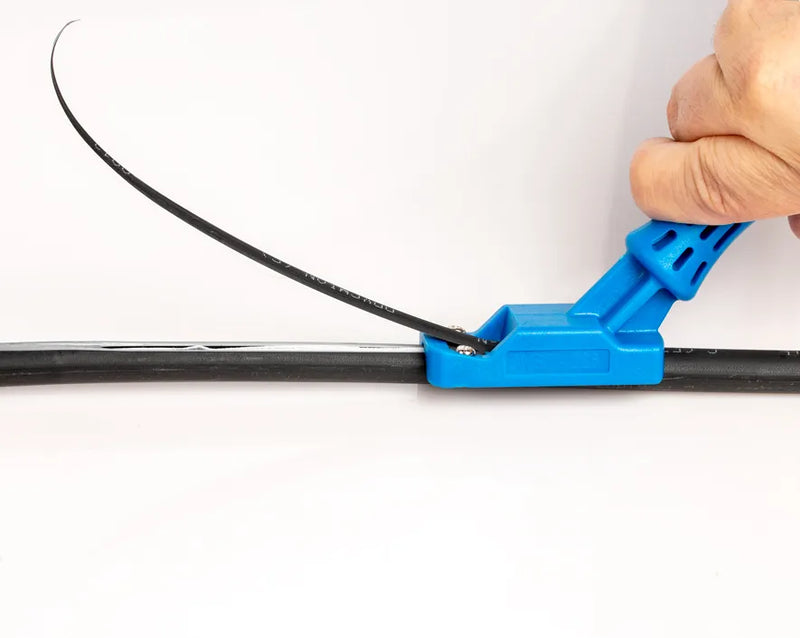

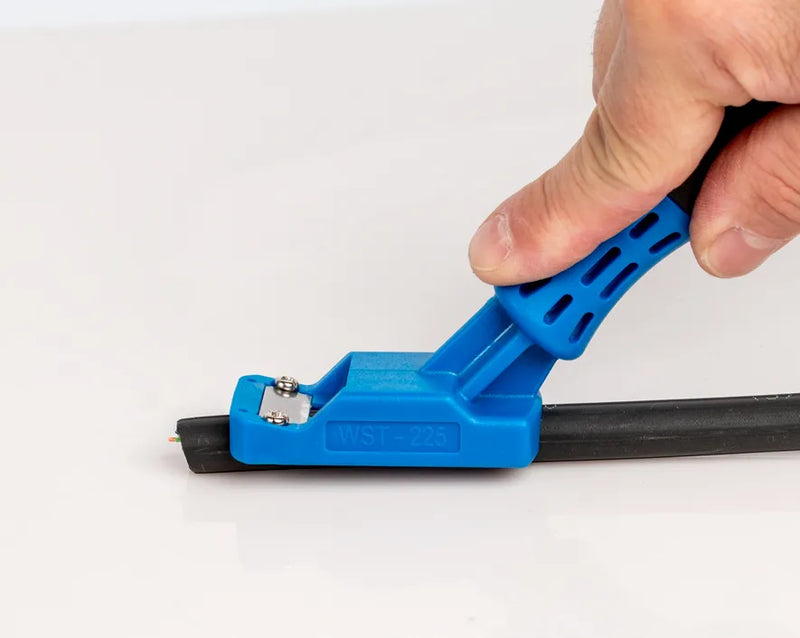

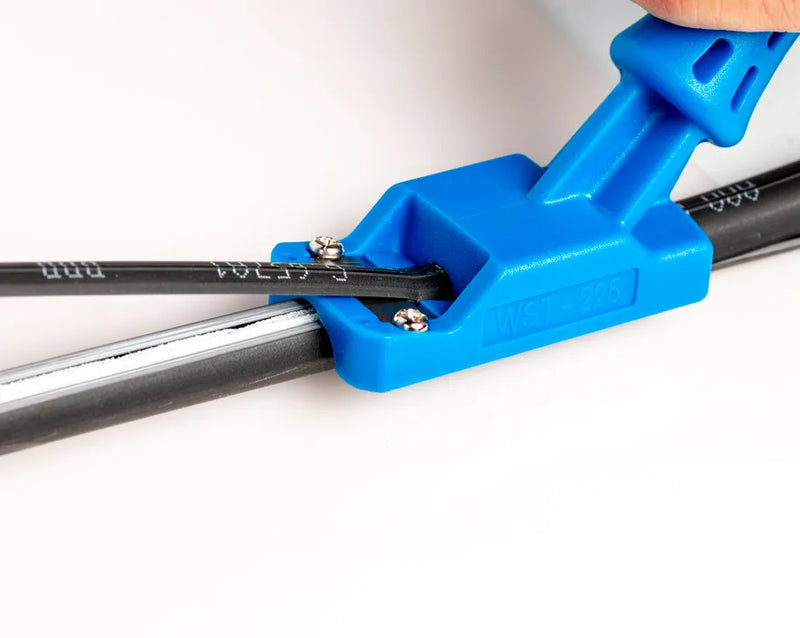

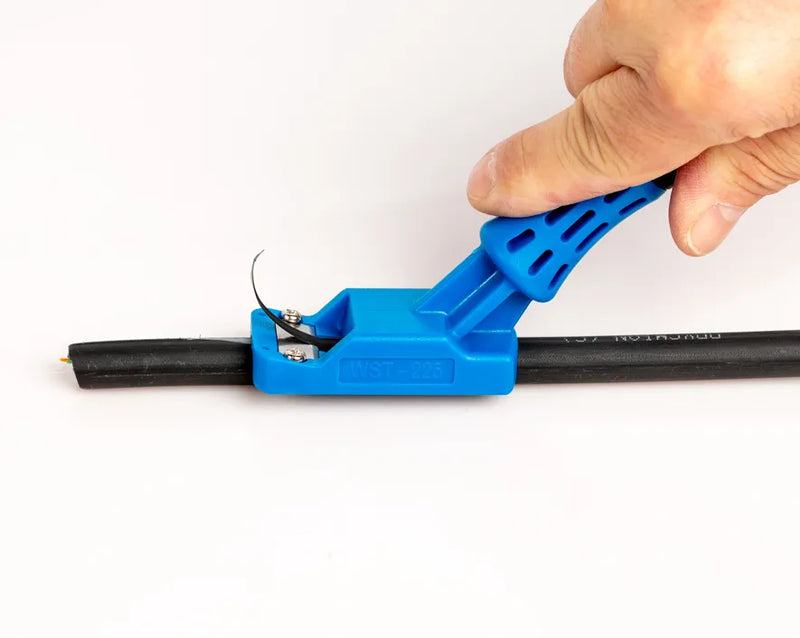

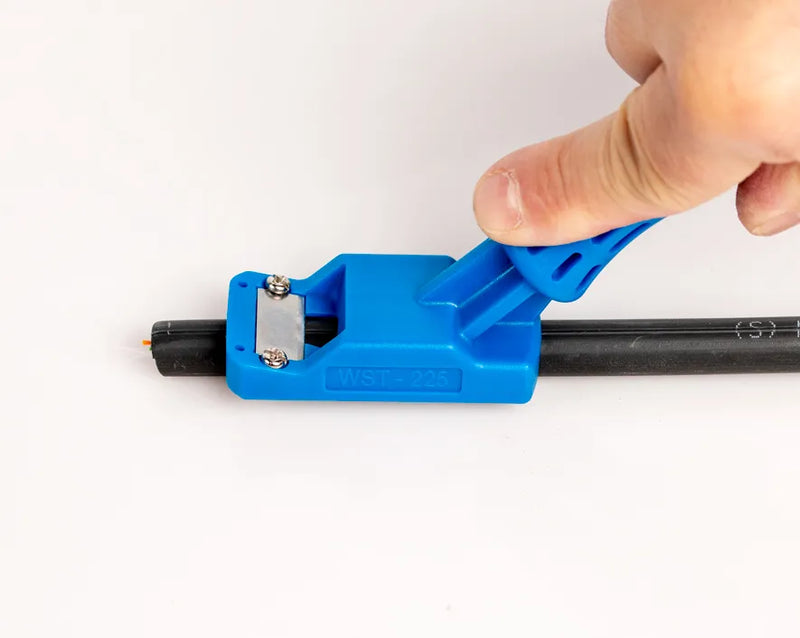

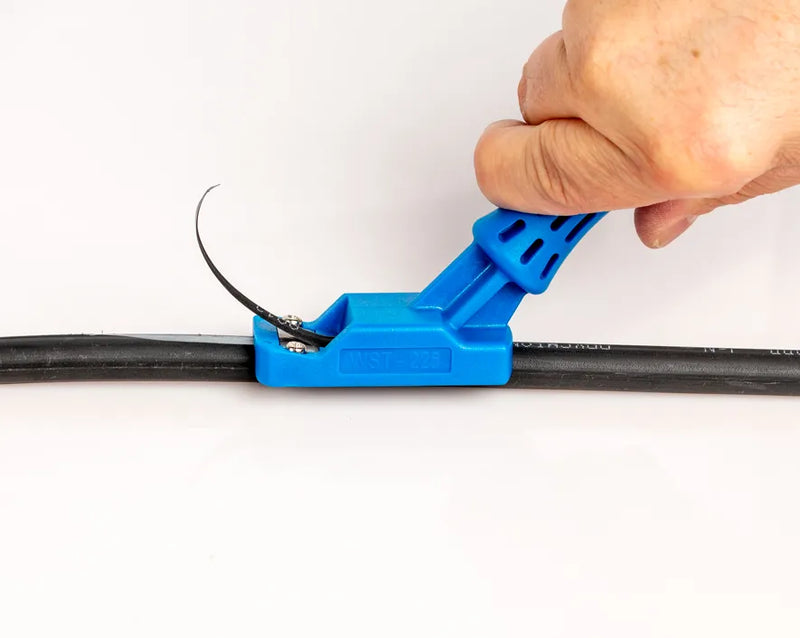

Designed to shave a longitudinal access window in round FTTH riser cables and microducts for mid-span access. This riser slitting tool is perfect for making access windows on cables 8 to 14 mm (0.33” to 0.55”) in diameter without damaging the fiber inside. This tool features the following.

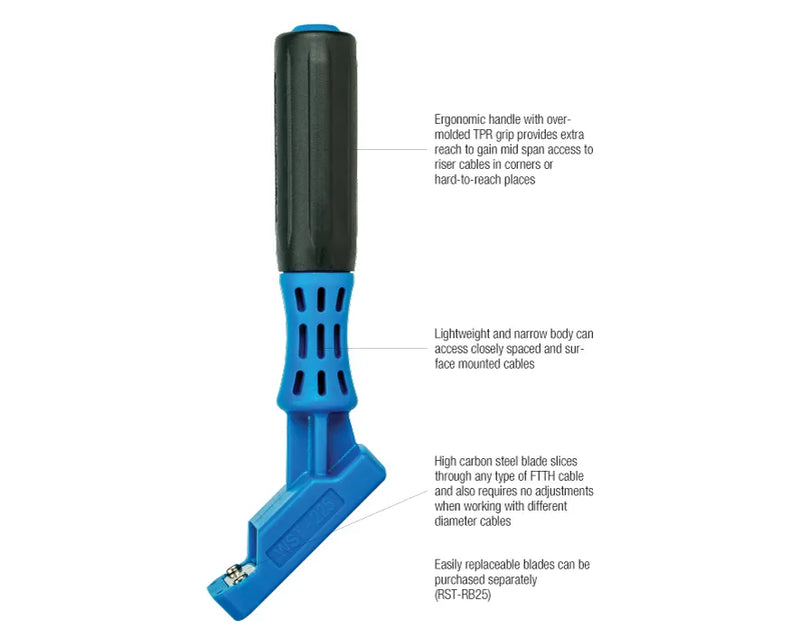

- Ergonomic handle with overmolded TPR grip provides extra reach to gain mid span access to riser cables in corners or hard-to-reach places
- Lightweight and narrow body can access closely spaced and surface mounted cables
- High carbon steel blade slices through any type of FTTH cable
- Blade requires no adjustments when working with different diameter cables
- Easily replaceable blades can be purchased separately (RST-RB25 replacement blades, pack of 25)
DOCUMENTS
WST-225 Window Shaving Tool Datasheet
SPECIFICATIONS
| Cut Type |
Window |
|---|---|
| Cable Type |
FTTH Riser |
| Cable Diameter |
8.5 mm-14 mm (0.33"-0.55") |
| Head Width |
1.18" (30 mm) |
| Dimensions |
1.18" x 5.71" x 4.37" (30 mm x 145 mm x 111 mm) |
| Weight | 0.13 lb (58.112 g) |
| UPC # | 810053350829 |
Common Questions About the Window Shaving Tool
What is a window shaving tool used for?
A window shaving tool is used to create a longitudinal access window in FTTH riser cables or microducts for mid span fiber access without damaging the fiber inside.
Who is this window shaving tool designed for?
This tool is designed for fiber technicians who need precise mid span access to FTTH riser cables, especially in tight or hard to reach areas.
What makes this tool suitable for mid span FTTH access?
This tool supports cable diameters from 8 to 14 mm, uses a fixed blade that requires no adjustment, and allows controlled shaving of the cable jacket.
At a Glance
• Designed for mid span window access on FTTH riser cables
• Supports cable diameters from 8.5 to 14 mm
• Fixed blade requires no adjustment
• Lightweight design for tight access areas
