JONARD | SPARC Fusion Splicer, Clad Alignment | #SPCL-1
JONARD TOOLS | PART #SPCL-1

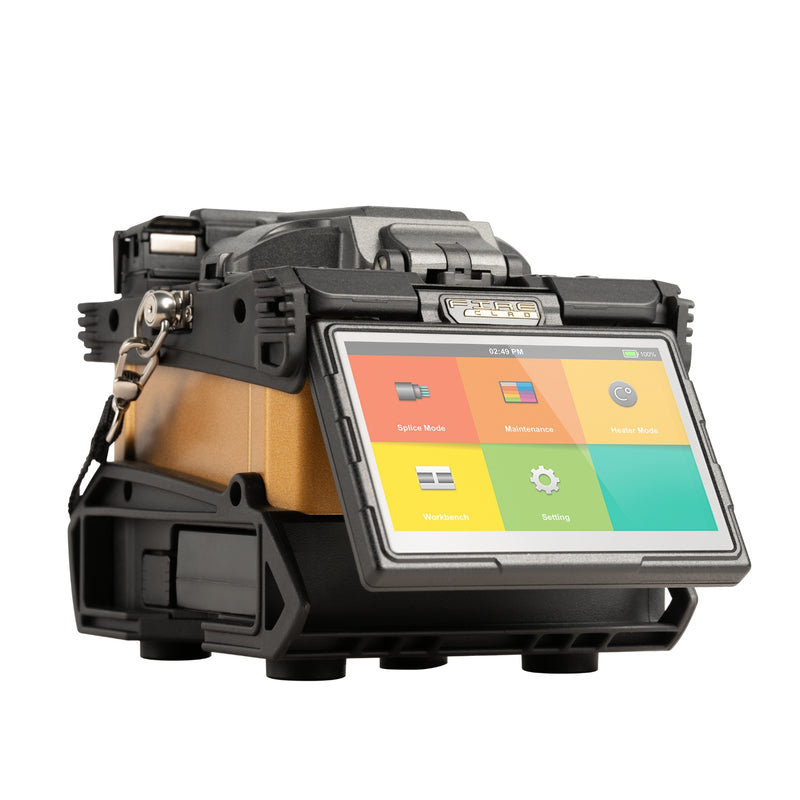

SPARC Fusion Splicer, Clad Alignment
DESCRIPTION
The SPARC Clad Alignment Fusion Splicer is an advanced Active V-Groove Cladding Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 400+ cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images
INCLUDES
| FC-800 | SPARC Blade Fiber Cleaver |
| JIC-375 | Fiber Optic Stripper, Three Hole |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| PSI-15 | Quick Sleever® |
| FDC-66 | Fiber Scraps Disposal Can |
| CWP-125 | Pointed Cotton Swabs, Pack of 125 |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FSP-CL | SPARC Fusion Splicer, Clad Alignment |
| FSP-SOC | SPARC SOC Holder |
| FSP-SOCSC | SPARC SOC Heater Holder |
| FSP-ADP-65JH | SPARC AC Adapter |
| FSP-CT | SPARC Cooling Tray |
| FSP-B7000 | SPARC Battery Pack |
| FSP-ADP-PC | SPARC Power Cable |
| FSP-E70 | SPARC Electrodes (1 Spare Set) |
| FSP-DC | Data Transfer USB Cable |
| H-2000 | SPARC Carrying Case |
| FSP-STP | SPARC Shoulder Strap |
| FSP-FT | Fiber Tray |
| FSP-FTP | Fiber Tray Shoulder Strap |
| FSP-SC | Splicer Set Screw |
| FC-SC | Cleaver Set Screw |
| FSP-SCT | Screw-on Cooling Tray |
| FSP-SBB | Soft Bristle Cleaning Brush |
| FSP-FBB | Firm Bristle Cleaning Brush |
| FSP-SFH | Splicing Fiber Holder* Comes Installed |
| FSP-SHH | Heater Fiber Holder * Comes Installed |
SPECIFICATIONS
| Alignment Method |
Active V-Groove Clad Alignment |
|---|---|
| Number of Fibers |
Single |
| Applicable Fibers |
SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter |
100µm - 3mm |
| Cladding Diameter |
80 - 150µm |
| Cleave Length |
5 - 16mm |
| Typical Splice Loss |
SM: 0.03dB / MM: 0.01 dB / DS: 0.05dB I NZDS: 0.05dB I G.657: 0.03dB |
| Return Loss |
>>60 dB |
| Splice Time |
Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec |
| Splice Programs |
Max 128 modes |
| Automatic Calibration |
Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span |
6000 Arc Discharges |
| Heating Programs |
Max 32 modes |
| Heating Time |
Quick: 9s / Average: 13s |
| Protection Sleeve Length |
20 mm - 60 mm |
| Data Output |
USB-C |
| Splice Memory |
20,000 Splice Data / 10,000 Splice Images |
| Battery Capacity |
7000mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Power Supply |
AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor |
5.0" Color LCD display, Full Touch Screen |
| Magnification |
x360, x520 |
| Pull Test |
1.96 - 2.25 N |
| Product Main Color | Black/Gold |
| Dimensions | 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437861 |
