JONARD | Solar+ Clamp Meter CAT III 1500 V | #ACM-1500DC
JONARD TOOLS | PART #ACM-1500DC
Solar+ Clamp Meter CAT III 1500 V
DESCRIPTION

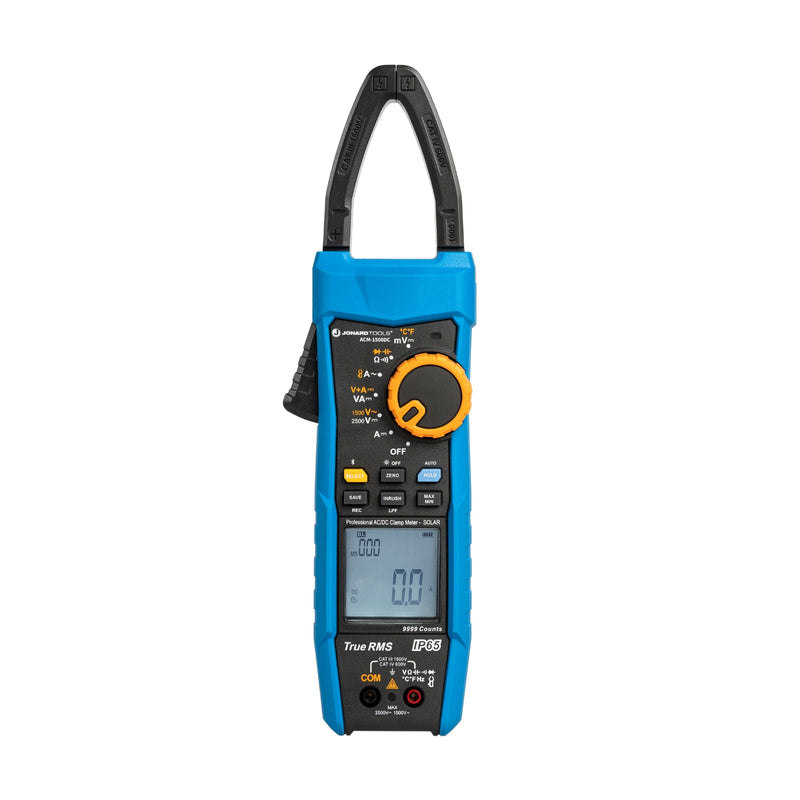

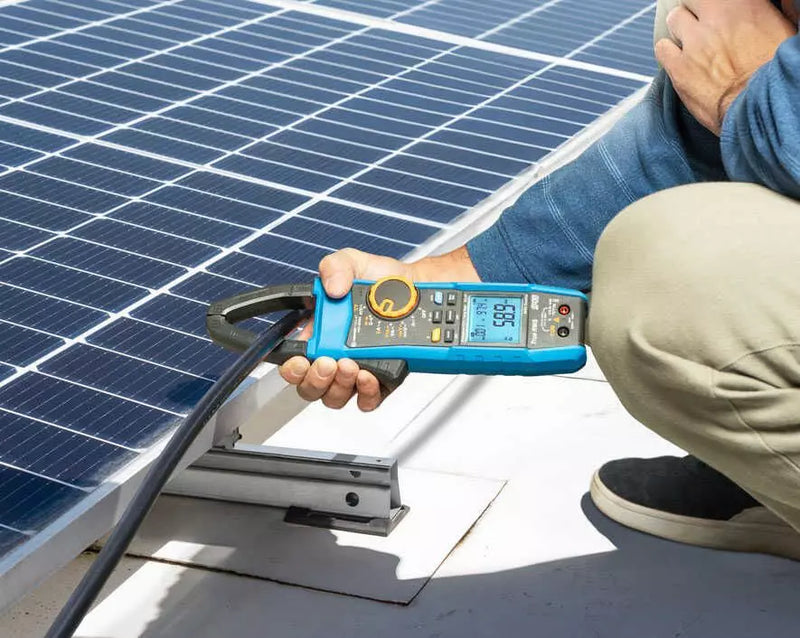

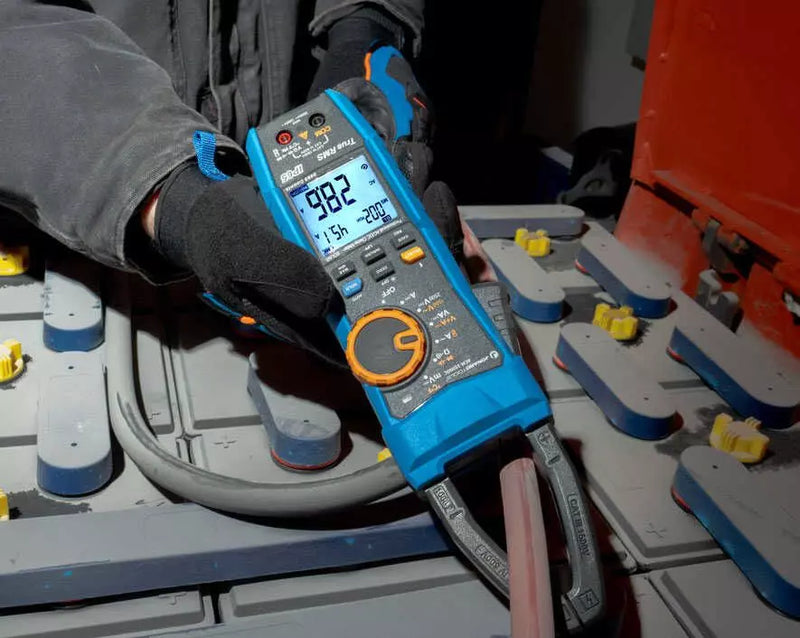

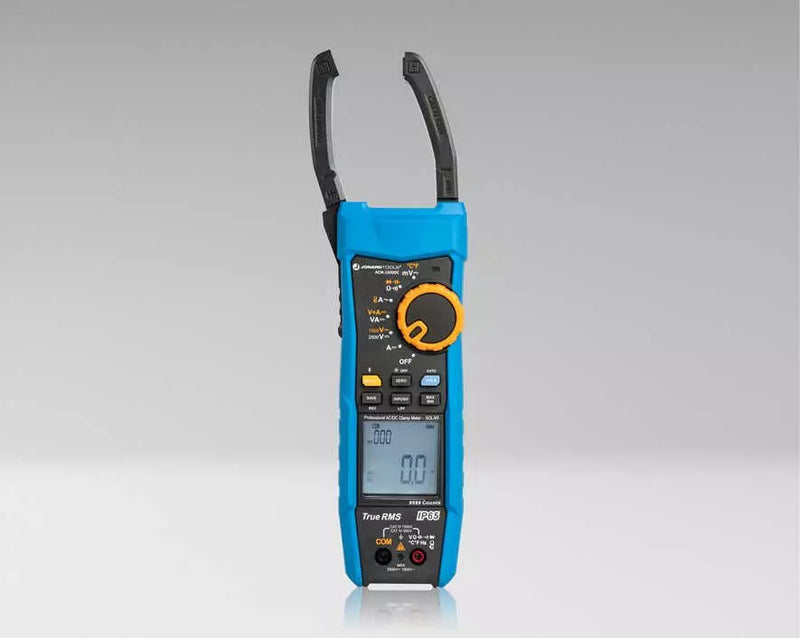

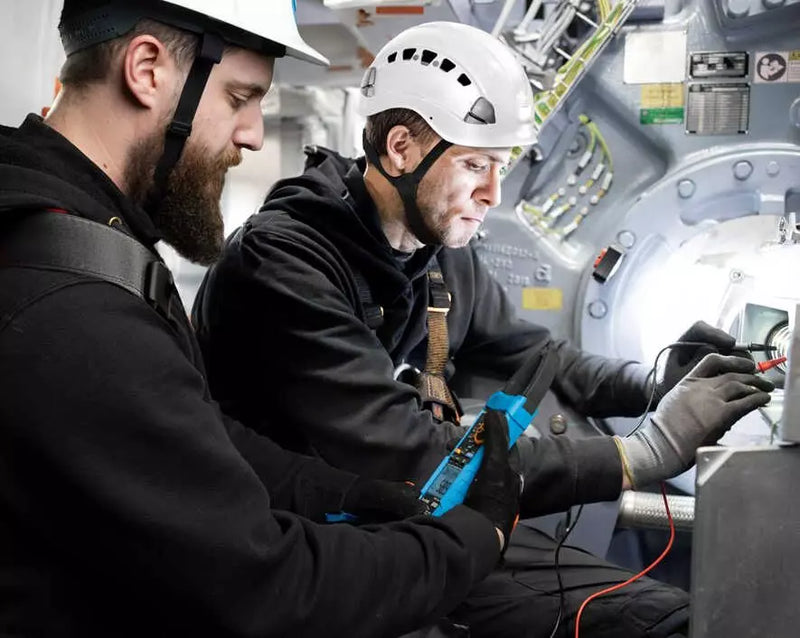

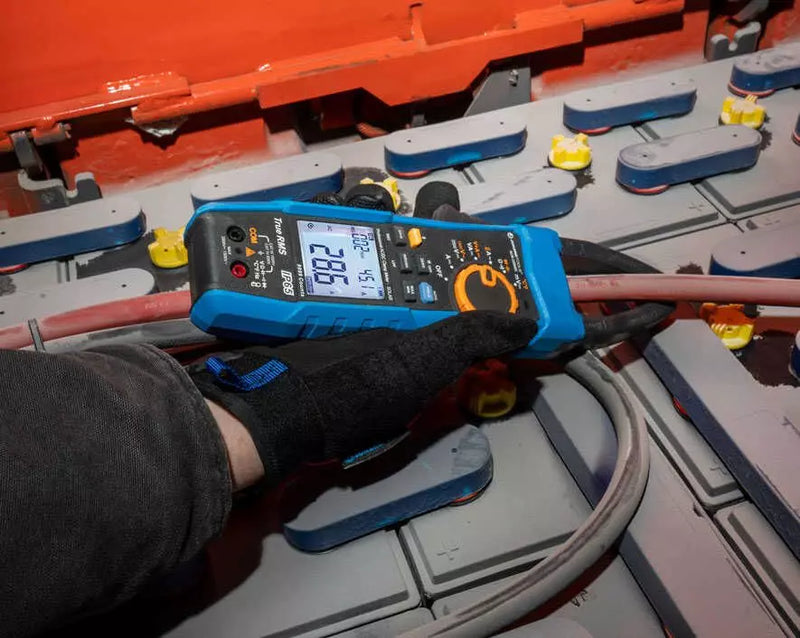

Elevate your high voltage DC work with the Jonard ACM-1500DC CAT III 1500 V True-RMS Clamp Meter. This versatile device is tailor-made for professionals working in solar arrays, wind power farms, electric railways, data centers, and uninterruptible power supplies. It excels in precision, measuring up to 2500 V DC, 1500 V AC, and up to 999.9 A DC or AC through the clamp jaws. The slim jaw design ensures access to even the most congested combiner boxes, and the test leads are CAT III 1500 V DC rated for peace of mind.
- Measures up to 2500 V DC and 999.9 A DC or AC through its slim tip clamp jaws
- CAT IV 600V, CAT III 1500V, Class 2, Double Insulation Safety Rating to protect from electrical shocks

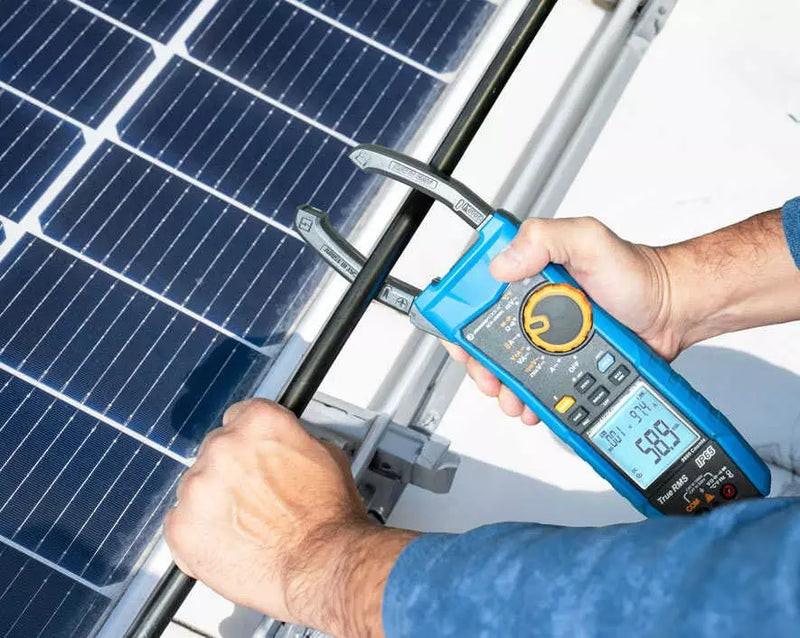

- Jaw opening is perfect for cables, such as solar cables, whose conductors are a maximum of 1.38" (35 mm) in diameter
- Test results can be saved onto onboard storage and can be transferred via Bluetooth
- IP 65 rating for dust and water resistance for ultimate protection while working outdoors
Click Below to Download the App!
DOCUMENTS
Data Sheet - Solar+ Clamp Meter CAT III 1500 V - ACM-1500DC
SPECIFICATIONS
| Max AC Current |
999.9 A |
|---|---|
| Max DC Current |
999.9 A |
| Max AC Voltage |
1500 V |
| Max DC Voltage |
2500 V |
| Power (DC) |
999.9 kVA/2500 kVA |
| Resistance |
999.9 Ohm/9.999 kOhm/99.999 Mohm |
| Capacitance |
100.0 uF/1000 uF |
| Temp |
'-40°C~400°C/-40°F~752°F |
| Jaw Opening |
35 mm |
| Overvoltage Category |
CAT III 1500V/CAT IV 600V |
| Bluetooth App |
BT 5.0 |
| Inrush Current |
✓ |
| PEAK |
✓ |
| LPF |
✓ |
| True RMS |
✓ |
| Dimensions | 12.25 in x 5.2 in x 2.5 in (31.12 cm x 13.21 cm x 6.35 cm) |
| Weight | 2.04 lb (924.344 g) |
| UPC # | 810132435454 |
