JONARD | Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors | #FLS-50
JONARD TOOLS | PART #FLS-50

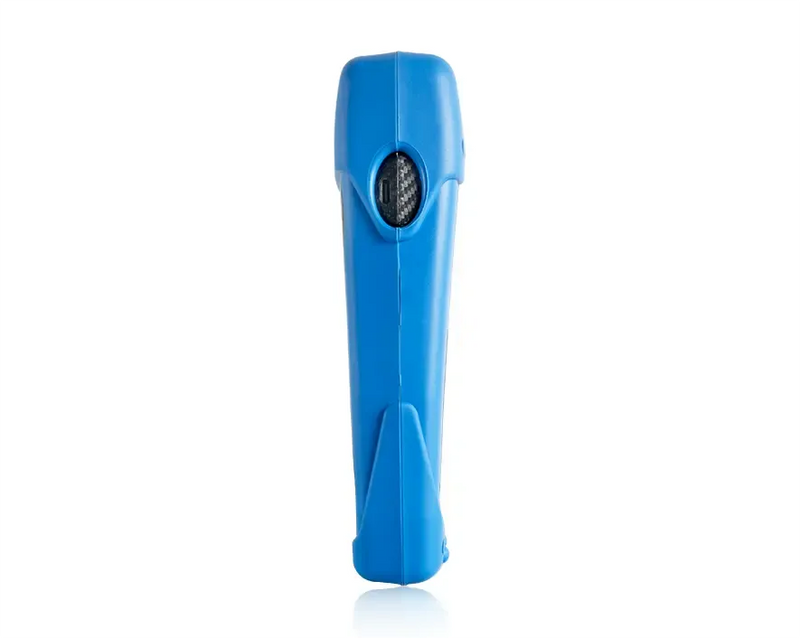

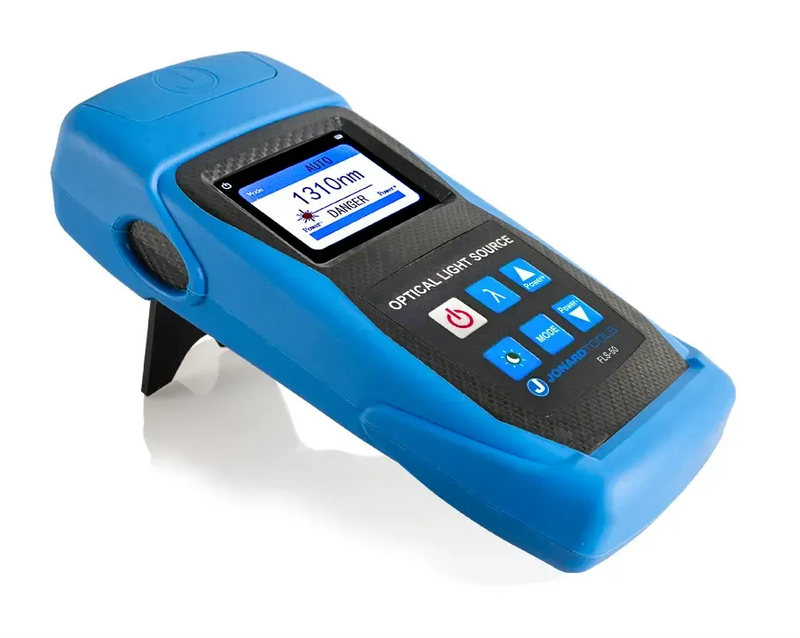

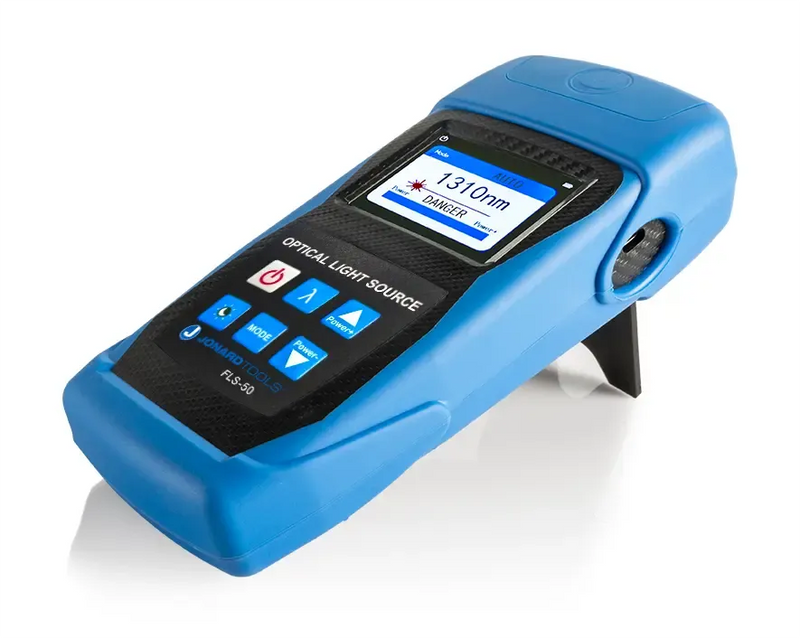

Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
DESCRIPTION
Includes: Fiber Optic Light Source Instruction Manual (3) AA Batteries (required for operation) (2) Cleaning Swabs Protective Carrying Case FC/UPC Adapter SC/UPC Adapter ST/UPC Adapter FC-LC/UPC Adapter (Singlemode Only) Highly stable output power and wavelengths Four modulation outputs at 1310 nm and 1550 nm wavelengths Intelligent backlight control reduces power consumption Auto-off function can be turned on or off Automatic wavelength detection function
- Highly stable output power and wavelengths
- Four modulation outputs at 1310 nm and 1550 nm wavelengths
- Intelligent backlight control reduces power consumption
- Auto-off function can be turned on or off
- Automatic wavelength detection function

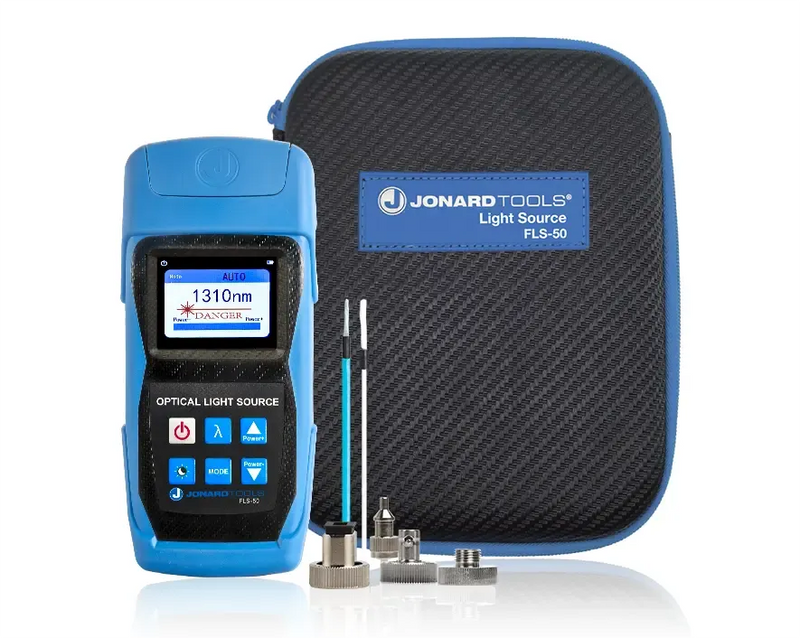

Includes:
- Fiber Optic Light Source
- FC Adapter
- LC Adapter
- SC Adapter
- (2) Cleaning Swabs
- (3) AA Batteries (required for operation)
- Storage Pouch
Fiber Type: Single-mode
DOCUMENTS
FLS-50 Optical Light Source Datasheet
FLS-50 Optical Light Source Instruction Manual
FLS-50 Light Source Setup Quick Reference Card
FLS-50 Light Source Calibration Steps
SPECIFICATIONS
| Wavelength (nm) |
1310/1550 ±20 |
|---|---|
| Spectral Width (nm) |
≤5 |
| Typical Output (dBm) |
-7 |
| Stability (dB, 15 min) |
≤0.05 |
| Typical Output Power Adjustable Range (dB) |
-5 ~ -12 |

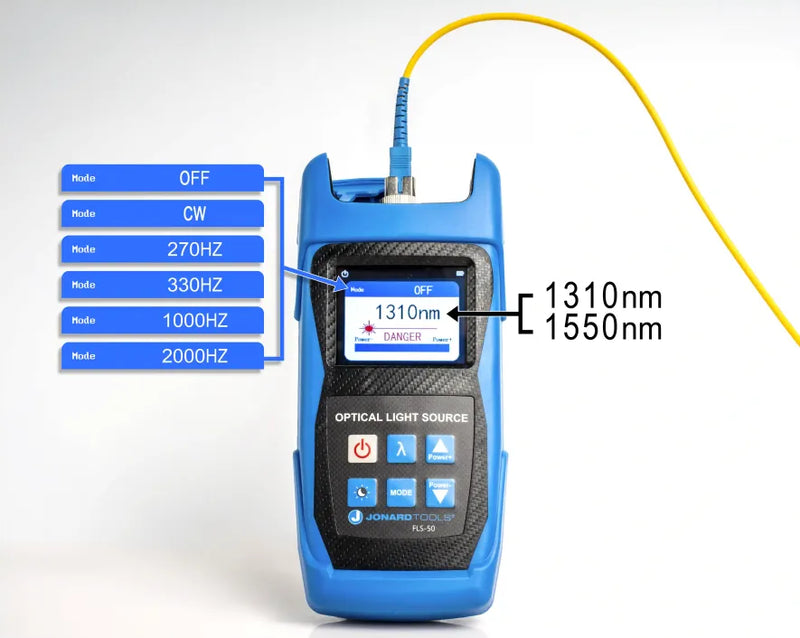

| Modulation Frequency (Hz) |
CW, 270, 330, 1K, 2K |

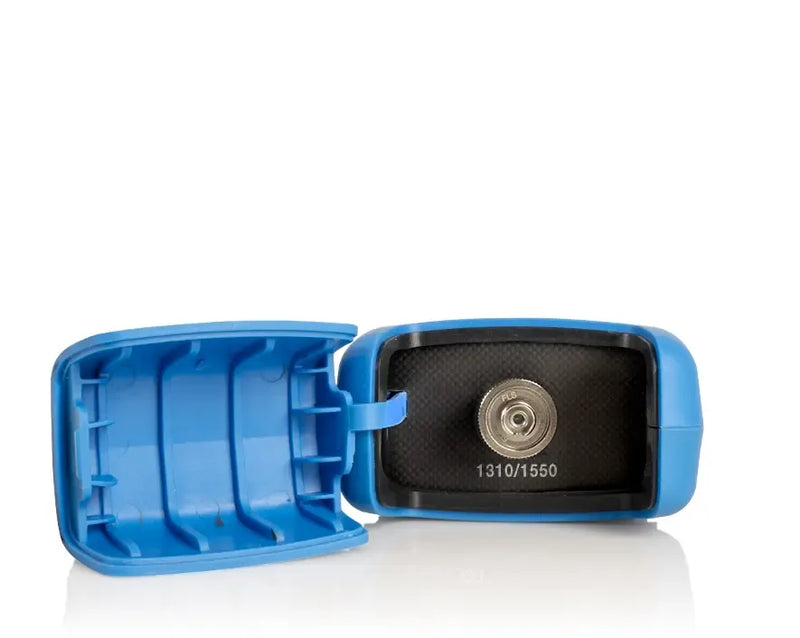

| Interface Type |

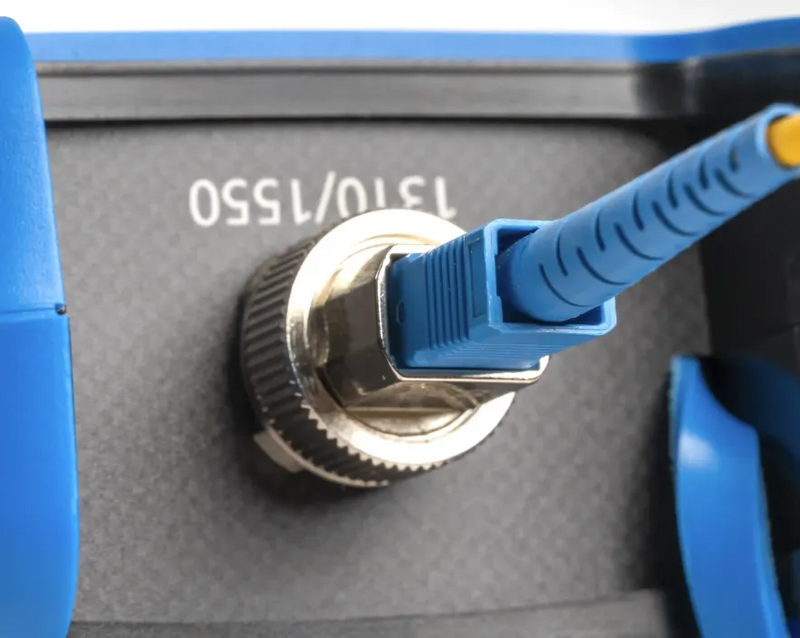

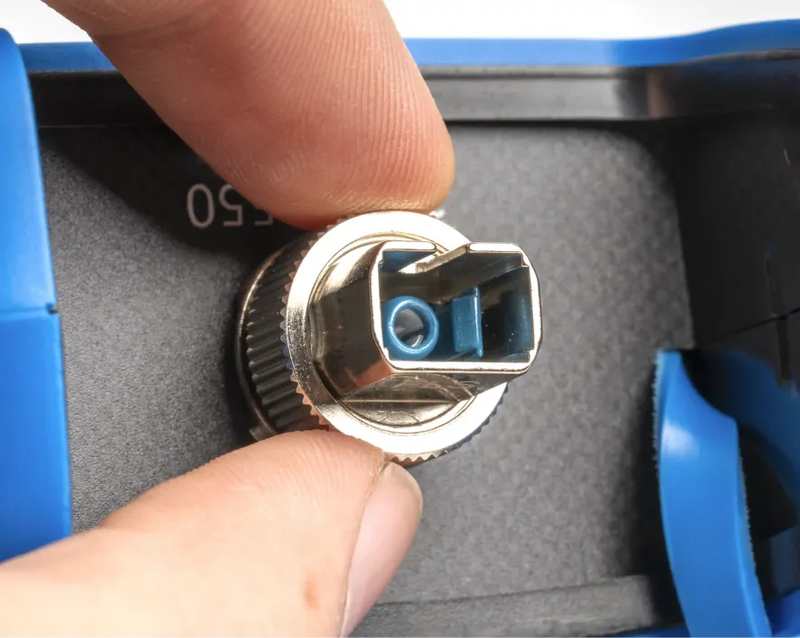

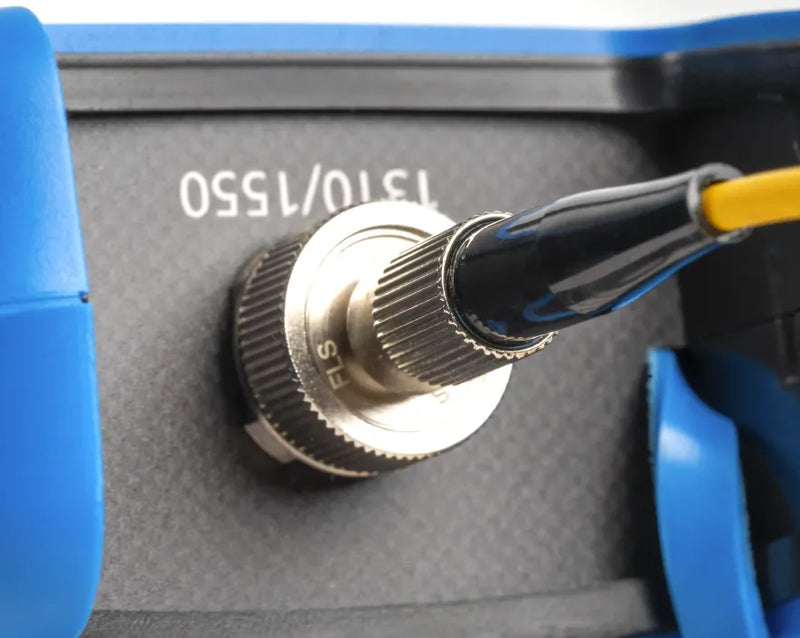

FC/SC/ST/FC-LC (UPC) |
| Display Size |
2.4-inch LCD |
| Power Supply |
1.5V* 3 AA alkaline batteries |
| Auto-off (min) |
10 |
| Continuous Working Hours (hr) |
≥25 |
| Operating Temperature (°C) |
-10 ~ +60 |
| Storage Temperature (°C) |
-25 ~ +70 |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 0.64 lb (290.56 g) |
| UPC # | 811490018655 |
Common Questions About the Optical Light Source
What is the Optical Light Source used for?
The Optical Light Source is used to provide a stable, calibrated light signal for testing, measuring loss, and verifying performance in single mode fiber optic networks.
Who is this optical light source designed for?
This light source is designed for fiber optic technicians, telecom installers, and network maintenance crews performing installation, troubleshooting, and verification testing.
What makes this light source different from basic single mode test sources?
This light source offers highly stable output at both 1310 and 1550 nm wavelengths, multiple modulation tones, and includes FC, SC, and LC adapters for direct connection to common fiber connectors.
At a Glance
• Designed for single mode fiber testing
• Provides 1310 and 1550 nm wavelengths
• Includes FC, SC, and LC PC or UPC adapters
• Stable output with multiple modulation tones
