JONARD | Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC | #FLC-1005
JONARD TOOLS | PART #FLC-1005
Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC
DESCRIPTION

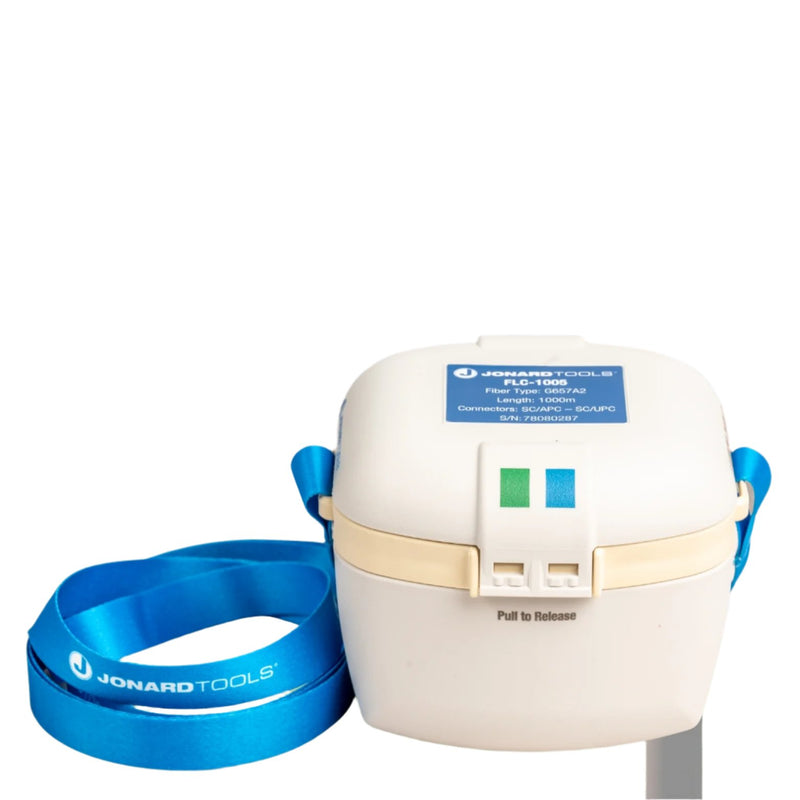

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following.
- Compact housing and shoulder strap make this perfect for on-the-go use
- 6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility
- Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
- Polishing types are color coded for quick and easy identification of the launch cable
- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Cable Length: 1000 m
Connector Type: SC/APC-SC/UPC
DOCUMENTS
FLC-1001 Singlemode Fiber Optic Launch Cable Datasheet
SPECIFICATIONS
| Cable Length |
3281 ft (1000 m) |
|---|---|
| Connector Types |
SC/APC, SC/UPC |
| Input/Output Length |
4.9 ft (1.5 m) |
| Max Insertion Loss @ 1310 nm |
≤ 0.35 dB/km |
| Max Insertion Loss @ 1550 nm |
≤ 0.22 dB/km |
| Max Insertion Loss @ 800 nm |
≤ 2.50 dB/km |
| Max Insertion Loss @ 1300 nm |
≤ 0.70 dB/km |
| SM Connector Insertion Loss |
≤ 0.1 dB |
| MM Connector Insertion Loss |
≤ 0.15 dB |
| Return Loss |
RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC) |
| Length | 3281(8333.74cm) |
| Weight | 0 lb (0 g) |
| UPC # | 810053351888 |
Common Questions About the Singlemode Fiber Optic Launch Cable
What is the Singlemode Fiber Optic Launch Cable used for?
The Singlemode Fiber Optic Launch Cable is used with an OTDR to eliminate dead zones and allow accurate measurement of long fiber links during reflectometric testing.
Who is this fiber optic launch cable designed for?
This launch cable is designed for fiber optic technicians, telecom installers, and network testing crews performing long distance OTDR testing and fiber analysis.
What makes this SC/APC to SC/UPC launch cable useful for mixed connector networks?
This launch cable features SC/APC on one end and SC/UPC on the other, making it ideal for testing fiber networks with mixed connector types while maintaining accurate OTDR results.
At a Glance
• 1000 meter singlemode launch cable for OTDR testing
• SC/APC to SC/UPC connectors for mixed network compatibility
• Armored fiber with compact, portable housing
• Ideal for long haul and extended fiber testing
