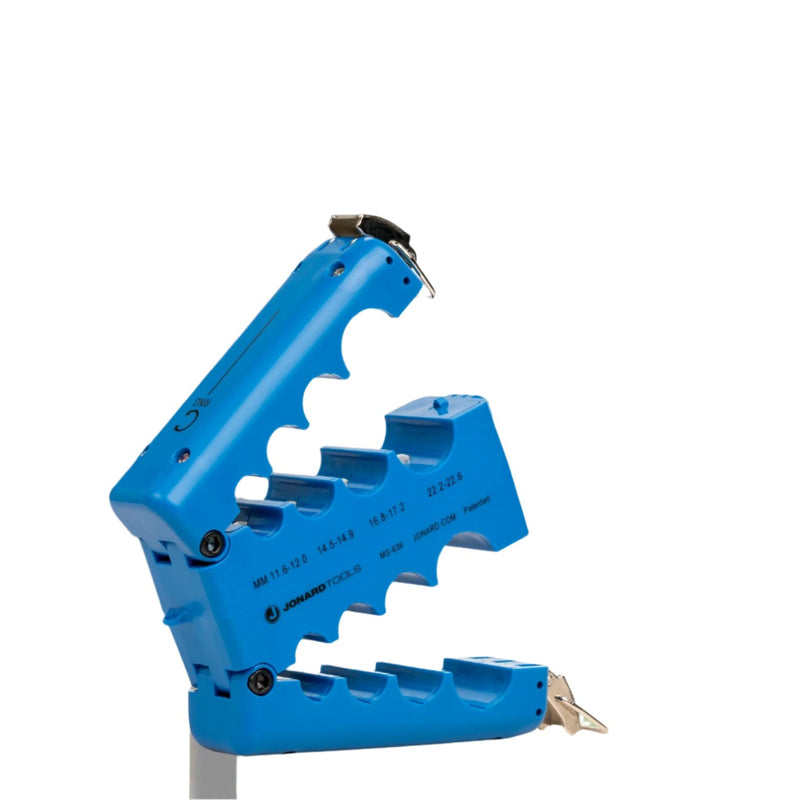

JONARD | Mid Span Slit & Ring Tool for RocketRibbon® Cable (11.6 mm-22.6 mm) | #MS-836

JONARD TOOLS | PART #MS-836

DESCRIPTION

The PATENTED MS-836 Mid Span Slit & Ring Tool is designed to provide easy access to optical ribbon fibers in Corning's RocketRibbon® cable. Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.

• Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 11.6 mm to 22.6 mm
• Compact design weighing less than 0.69 lb (311 g) with included tethering hole makes it perfect to use in tight spaces or on the go
• One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
• Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
• This tool was specially designed for use on Corning  RocketRibbon® cables

Replacement blade set available, part number: MS-836RB

Blades last for 5,000 slits or rings

Groove Sizes: 11.6 mm-12.0 mm | 14.5 mm-14.9 mm | 16.8 mm-17.2 mm | 22.2 mm-22.6 mm

Function: Slit & Ring

Cable Diameter: 11.6 mm-22.6 mm

DOCUMENTS

Mid Span Slit & Ring Tool Datasheet
