JONARD | Professional Multi-Function OTDR (1310/1550 nm) | #OTDR-1500
JONARD TOOLSĀ | PART #OTDR-1500

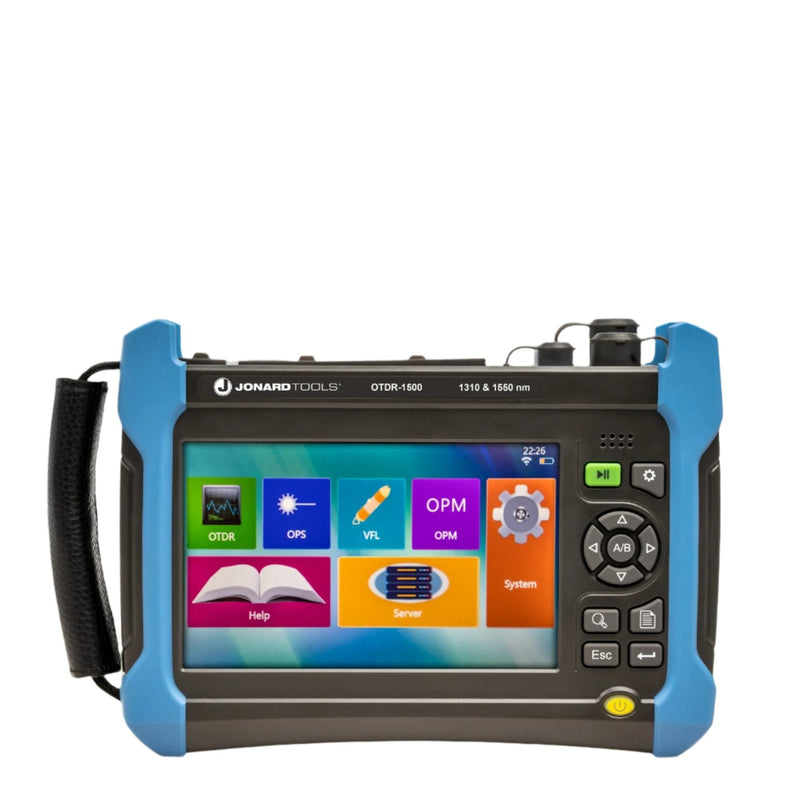

Professional Multi-Function OTDR (1310/1550 nm)
DESCRIPTION
Jonard Toolsā Professional Multi-Function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This OTDR also features the following.
- Includes 5 different functions for testing: 1310/1550 nm OTDR module, 1310/1550 nm Light Source module, Power Meter module, Visual Fault Locator module, and Help module
- Large, bright 7ā color LCD touch screen makes it quick and easy to evaluate data
- More accurate testing with a 32/30 Dynamic Range
- Features Dual Wavelength Testing (see both 1310 & 1550 wavelengths simultaneously)
- Built-in Event Map shows faults with graphical images for simplified troubleshooting
- Handy stylus to keep LCD screen fingerprint free
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 200 MB Internal storage stores up to 4,800 entries, with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium-ion battery provides power on-the-go
- On-board Wi-FiĀ connectivity for data transfers or live viewing of data (for Android devices)
- Can be charged or connected to a computer for data transfer via included micro-USB cable
- Includes FC/APC & SC/APC OTDR adapters, LC/UPC adapter for OPM, downloadable software (also featured in the download section of this product page), power adapter, calibration certificateĀ and instruction manual
- Convenient unit kickstand
- Protective carrying case with adjustable strap
DOCUMENTS
OTDR-1500Ā Professional Multi-Function OTDR Datasheet
OTDR-1500Ā Professional Multi-Function OTDR Instructions Manual
SPECIFICATIONS
| Wavelengths |
1310Ā±20nm, 1550Ā±20nm |
|---|---|
| Fiber Type |
G.652 SingleMode Fiber |
| Dynamic Range |
32 dB/30 dB |
| Event Blind Zone |
0.5 m |
| ATT Blind Zone |
0.5 m |
| Test Range |
500m-80km |
| Pulse Width |
3ns-10us |
| Range Accuracy |
Ā±ļ¼0.75 m + Sampling Interval + 0.0025ļ¼ Ć Test Distanceļ¼ |
| Loss Accuracy |
Ā± 0.02 dB/km |
| # of Sampling Points |
256k |
| Sampling Resolution |
0.5m-32 m |
| Reflection Accuracy |
Ā± 2 dB |
| Data Storage |
Internal: 200 MB; External: MicroSD Card |
| Laser Safety Level |
Class II level |
| File Format |
SOR Standard File Format |
| Included Connectors for OTDR |
FC, SC (APC) |
| Dimensions | 13 in x 4.5 in x 9.5 in (33.02 cm x 11.43 cm x 24.13 cm) |
| Weight | 6.31 lb (2866.556 g) |
| UPC # | 810053352113 |
