JONARD | Mid Span Slit & Ring Tool (7.9 mm-11 mm) | #MS-336
by Jonard
Sale
Original price
$123.95
Original price
$123.95
-
Original price
$123.95
Original price
$123.95
Current price
$117.75
$117.75
-
$117.75
Current price
$117.75
JONARD TOOLS | PART #MS-336
DESCRIPTION

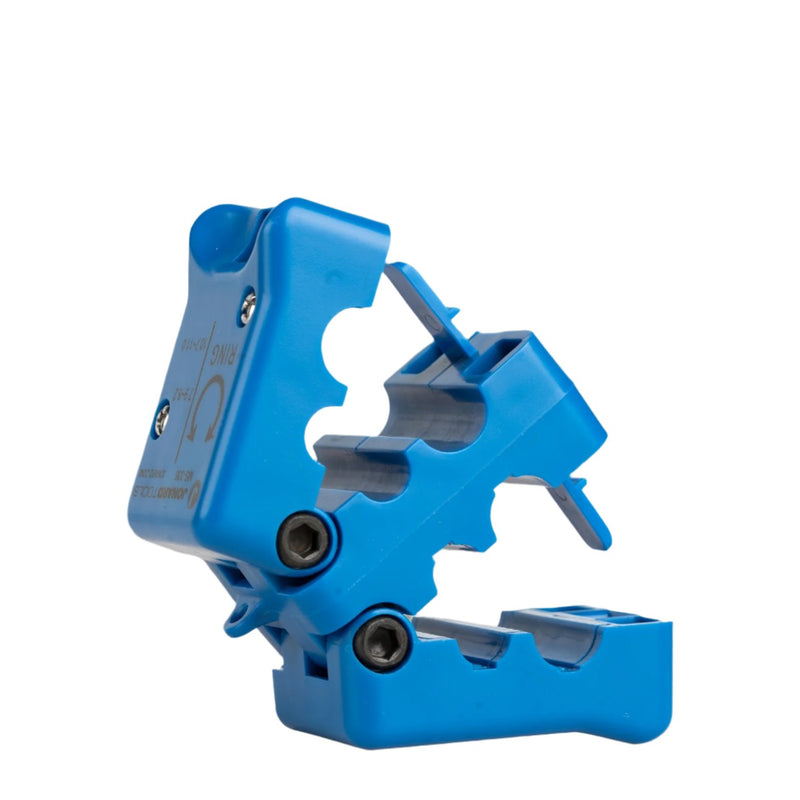

The PATENTED MS-336 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in thin walled outer jacketed cables. The MS-336 is an extension of the MS-326 series tool targeting larger cables such as Cornings Minixtend HD 288 and 432 fiber count cables.
- Consists of 2 precision slitting grooves and 2 precision ring grooves ranging in sizes from 7.9-8.2 & 10.7-11 mm
- One side of tool performs Radial/ring cuts and the other side slits the cable (longitudinal cut)
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool is specifically designed for use on Corning Minixtend HD 288F and Minixtend HD 432F cable. Both with FastAccess
- Replacement blades available, part number MS-336RB
- Blades last at least 5,000 slits/cuts
Groove Sizes: 7.9-8.2 | 10.7-11.0 mm
Function: Slit & Ring
Cable Diameter: 7.9 mm-11 mm
DOCUMENTS
Mid Span Slit & Ring Tool Datasheet
SPECIFICATIONS
| Cut Type |
Slit, Ring |
|---|---|
| Number of Slitting Grooves |
4 |
| Number of Ringing Grooves |
4 |
| Cable Type |
Corning's Minixtend HD 288 and 432 |
| Cable Diameter |
7.9 - 11 mm |
| Dimensions |
2.3" x 1.5" x 2.2" (58.4mm x 38.1mm x 55.9mm) |
| Weight | 0.18 lb (81.72 g) |
| UPC # | 811490014770 |
