JONARD | Cable Funnel Drop Ceiling Protector | #CPF-215
JONARD TOOLSÂ | PART #CPF-215

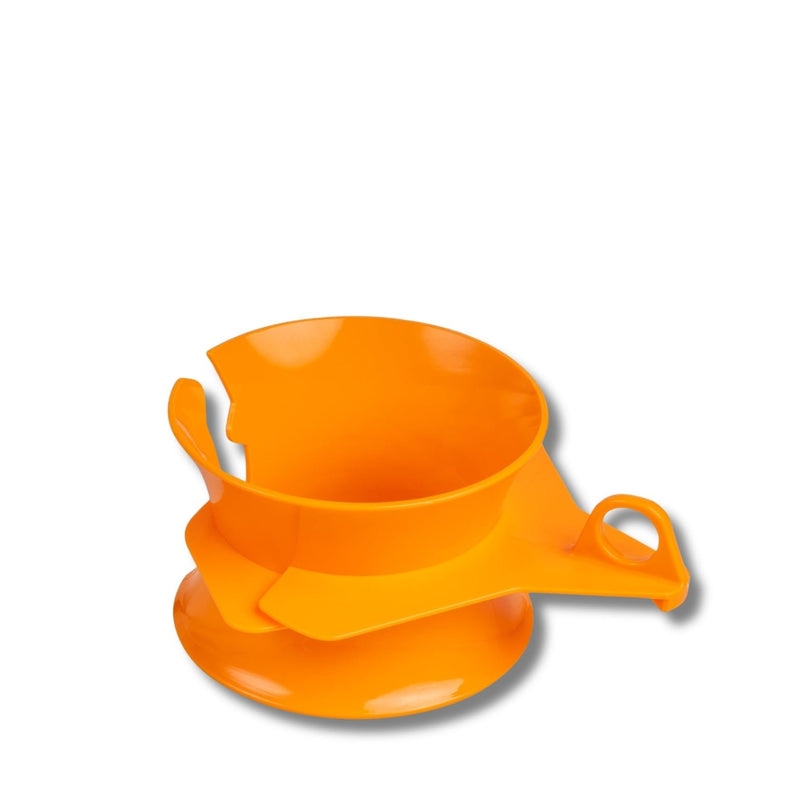

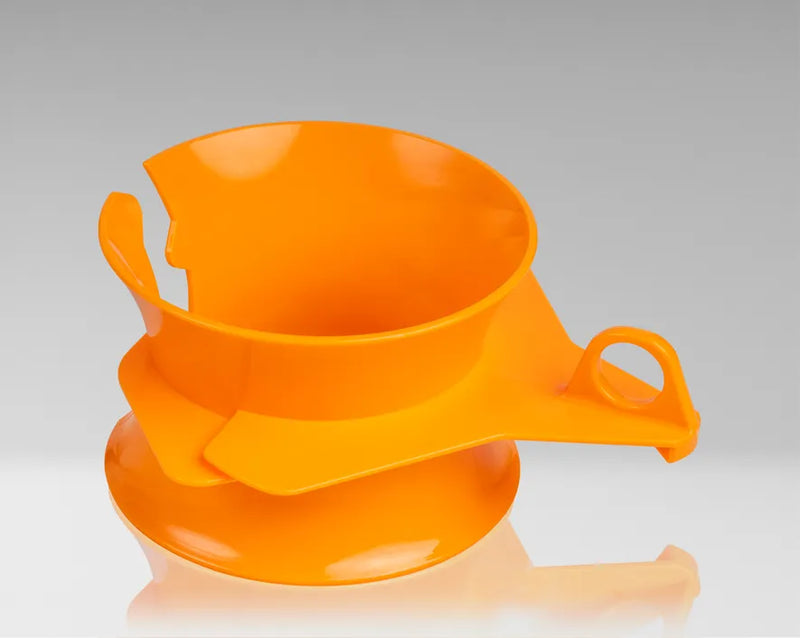

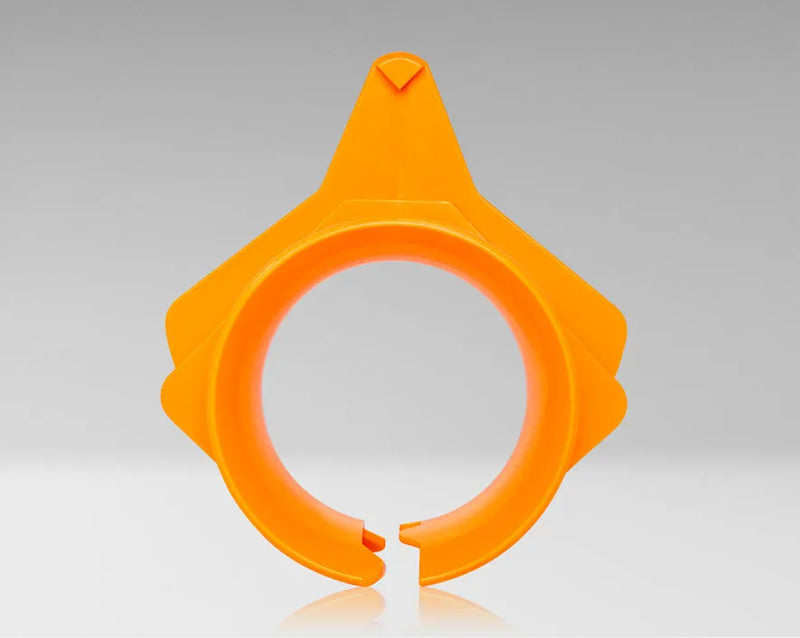

Cable Funnel Drop Ceiling Protector
DESCRIPTION
Designed to prevent the snaring or snagging of cables in drop ceilings, this tool is perfect for protecting cables and ceiling grids while pulling cable. This tool also features the following.
- Protects any type of cable from being damaged while being pulled through a drop ceiling
- Prevents ceilings from being twisted or marred while cable is pulled
- Made from a smooth plastic material to minimize friction and make cable pulling easy

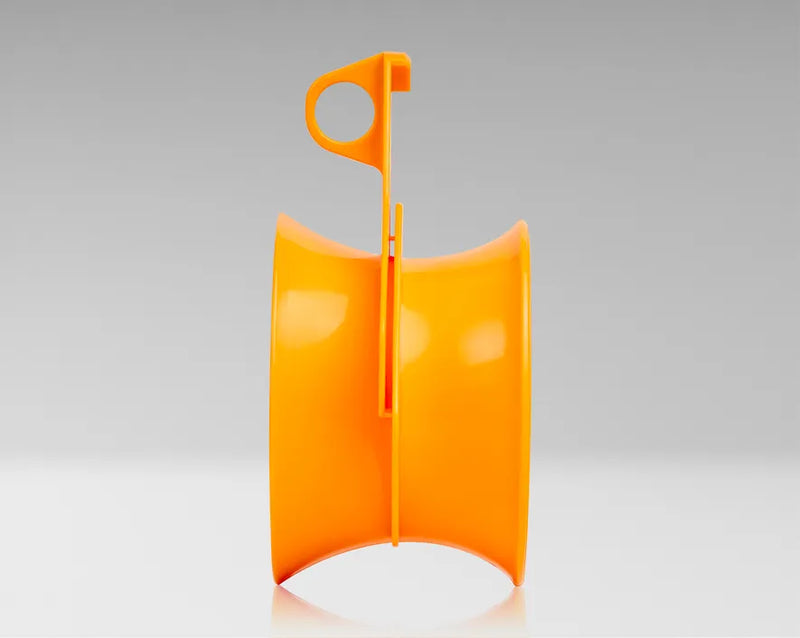

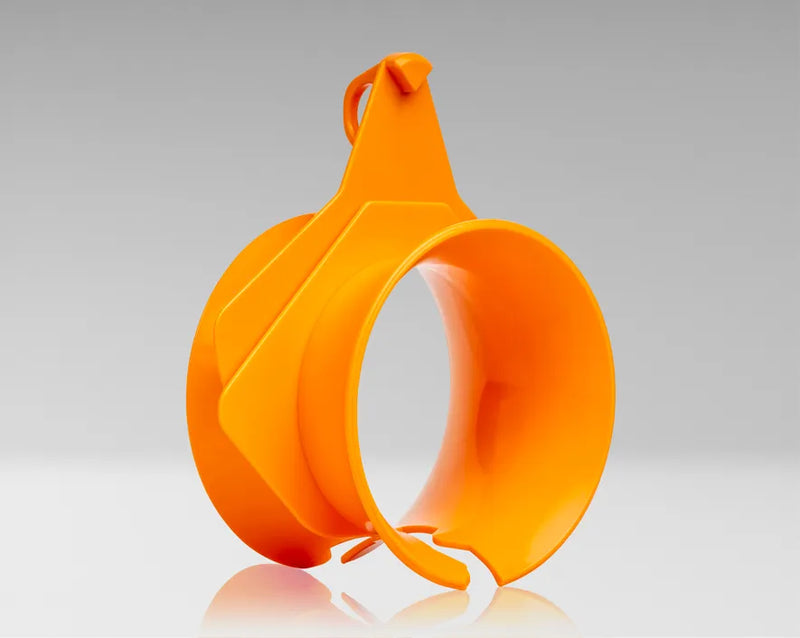

- Side slit and removal fin make removal quick and easy
- Works with standard 1" ceiling grids
- Lifetime Warranty

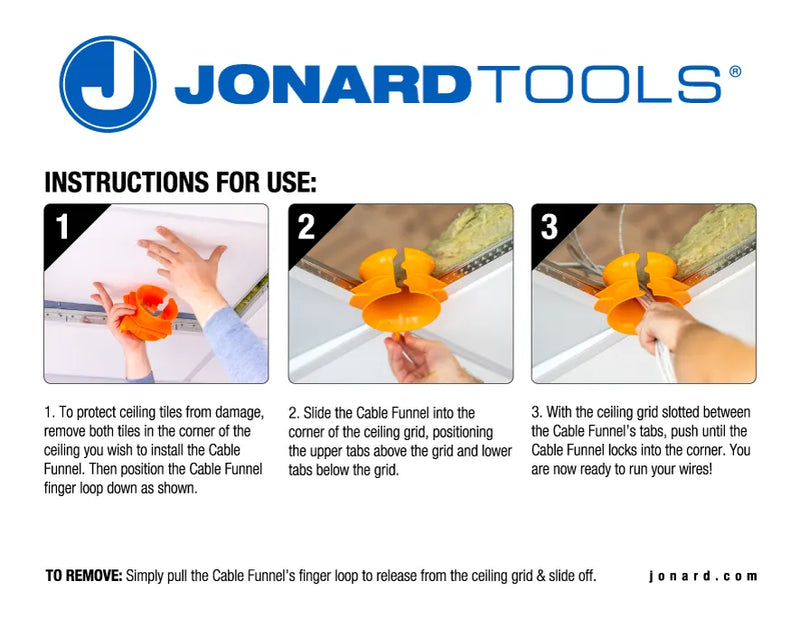

Instructions for Use:
-

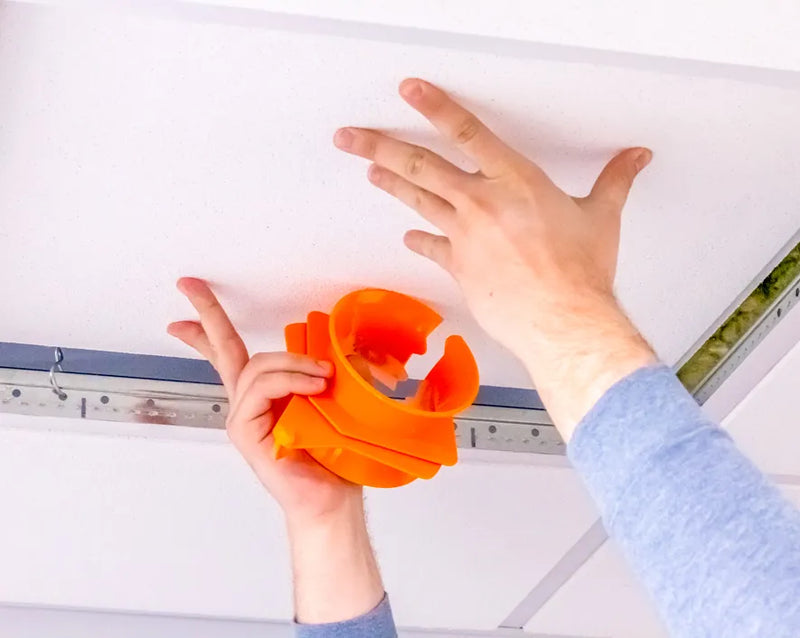

To protect ceiling tiles from damage, remove both tiles in the corner of the ceiling you wish to install the Cable Funnel. Then position the Cable Funnel finger loop down as shown.
-

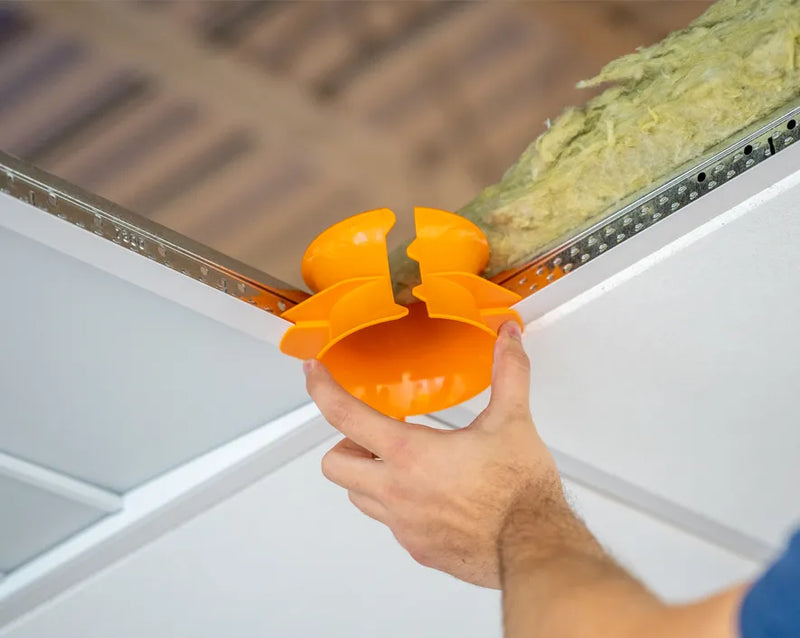

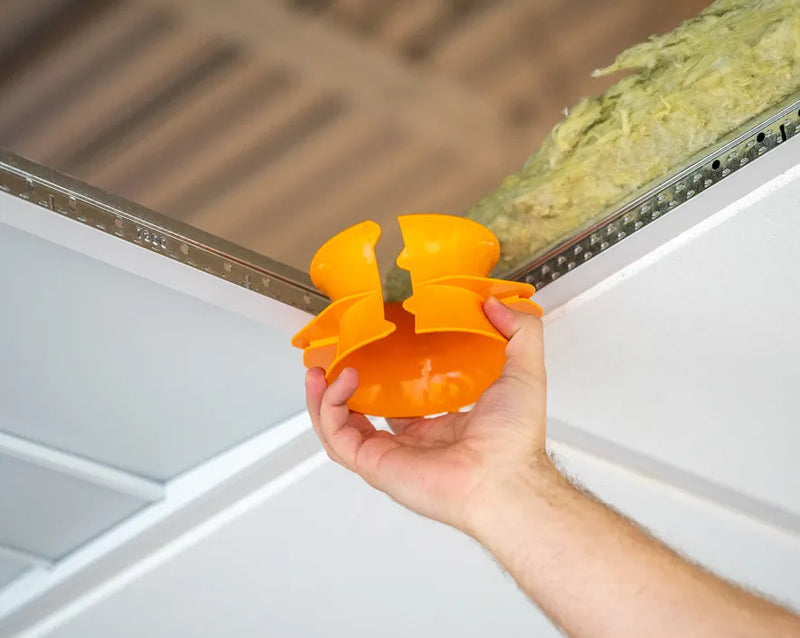

Slide the Cable Funnel into the corner of the ceiling grid, positioning the upper tabs above the grid and lower tabs below the grid.
-

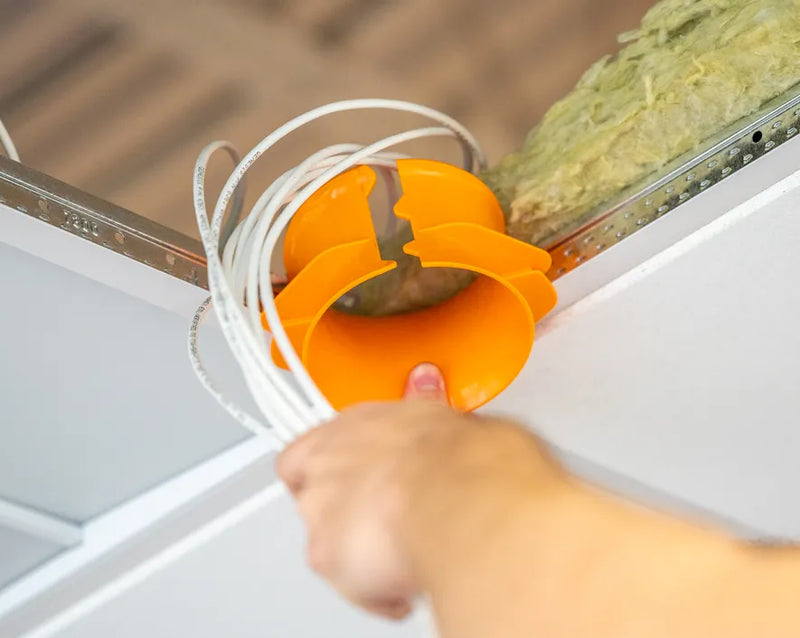

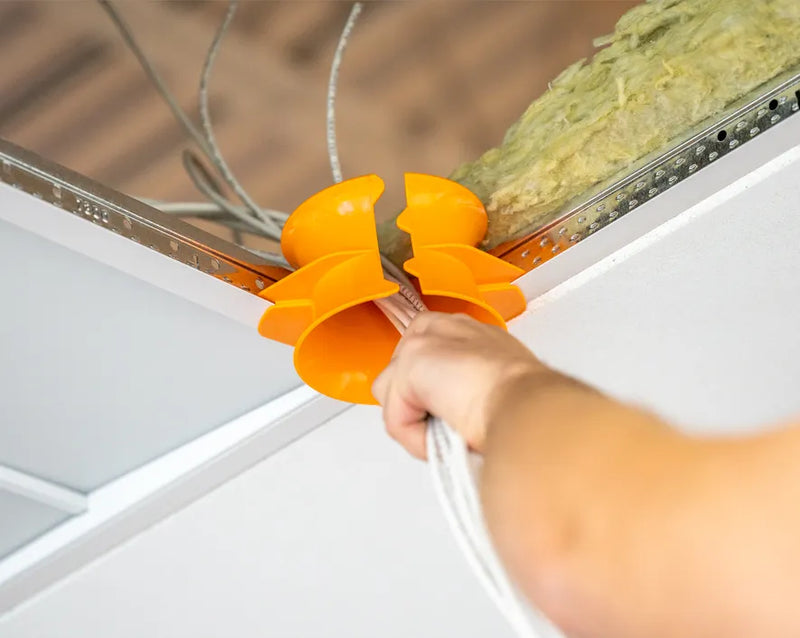

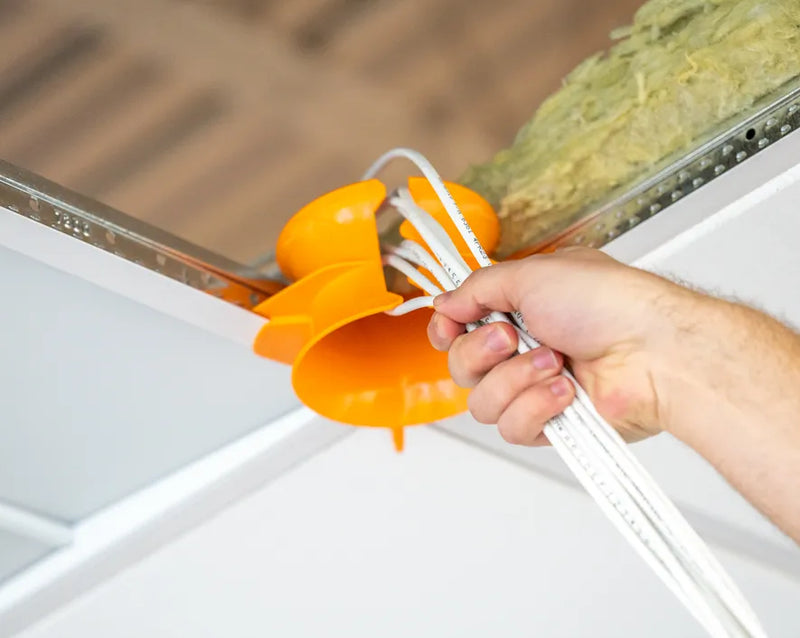

With the ceiling grid slotted between the Cable Funnel’s tabs, push until the Cable Funnel locks into the corner. You are now ready to run your wires!

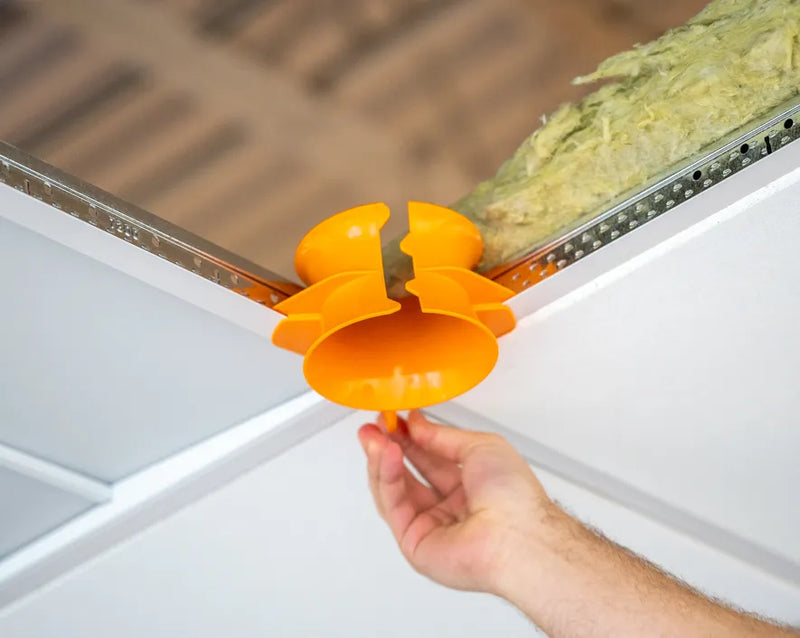

To Remove: Simply pull the Cable Funnel’s finger loop to release from the ceiling grid & slide off.
DOCUMENTS
CPF-215 Cable Funnel Drop Ceiling Protector Datasheet
CPF-215 Cable Funnel Drop Ceiling Protector Instructions
SPECIFICATIONS
| Compatible With |
Standard 1" Ceiling Grids |
|---|---|
| Inner Diameter |
3.70" (9.40 cm) |
| Dimensions | 6.7 in x 5.9 in x 3.17 in (17.02 cm x 14.99 cm x 8.05 cm) |
| Weight | 0.22 lb (100.788 g) |
| UPC # | 810053350812 |
Â
Common Questions About the Cable Funnel Drop Ceiling Protector
What is the Jonard Tools CPF-215 used for?
The Jonard Tools CPF-215 is used to protect cables and ceiling grids while pulling wire through drop ceilings, preventing snags and damage.
Who is this cable funnel designed for?
This tool is designed for electricians, fiber technicians, and low voltage installers working in drop ceiling environments.
What makes the CPF-215 different from standard ceiling cable guides?
The CPF-215 features a smooth low friction plastic design, a secure locking fit for standard one inch ceiling grids, and a side slit for quick removal after cable installation.
At a Glance
• Drop ceiling cable funnel and protector
• Prevents cable snags and ceiling grid damage
• Fits standard one inch ceiling grids
• Smooth plastic design with quick release fin
