JONARD | Mid Span Shaving Tool (1.0 mm-3.3 mm) | #MS-600
JONARD TOOLS | PART #MS-600

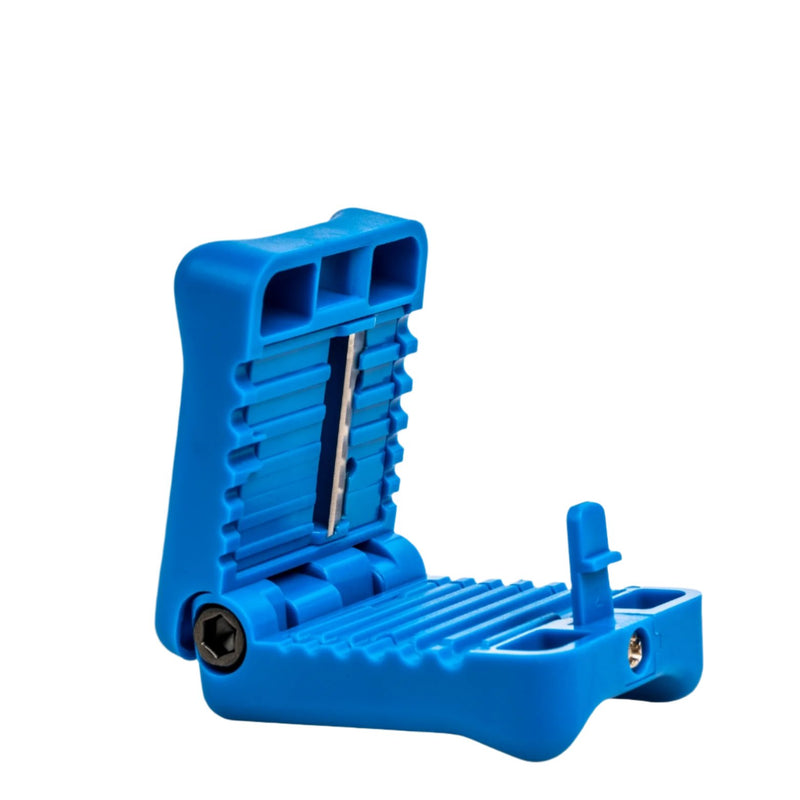

Mid Span Shaving Tool (1.0 mm-3.3 mm)
DESCRIPTION
The MS-600 Mid Span Shaving Tool is designed to provide easy access to optical fibers in outer jackets and loose buffer tubes. With 6 precision grooves to handle various cable sizes, the sleek ergonomic design allows you to open a fiber jacket or buffer tube without damaging the fiber inside
- Consists of 6 precision slitting grooves ranging in size from 1.0 mm to 3.3 mm
- Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for use on OFS EZ-Bend® 3.0 mm cable and also works with Corning's outdoor ALTOS® loose tube, Microduct MiniXtend® HD and MiniXtend® cable with binderless FastAccess® Technology, indoor/outdoor FREEDM® and LSZH® loose tube cables, PPC Semiflex 3 mm cable, and other similar style cables
- Replacement blade set available, part number: MS-600RB
- Blade lasts for 5,000 shaves
Groove Sizes: 1.0-1.4 mm | 1.4-1.8 mm | 1.8-2.1 mm | 2.1-2.5 mm | 2.5-2.9 mm | 2.9-3.3 mm
Function: Shave
Cable Diameter: 1.0 mm - 3.3 mm
DOCUMENTS
Mid Span Shaving Tool Datasheet
SPECIFICATIONS
| Cut Type |
Shave |
|---|---|
| Number of Shaving Grooves |
6 |
| Cable Type |
Outer Jackets, Loose Buffer Tubes |
| Cable Diameter |
1.0 mm - 3.3 mm |
| Weight | 0.08 lb (38.136 g) |
| UPC # | 810053352144 |
Common Questions About the Mid Span Shaving Tool
What is a mid span shaving tool used for?
A mid span shaving tool is used to shave outer jackets and loose buffer tubes to access optical fibers without damaging the fiber inside.
Who is this mid span shaving tool designed for?
This tool is designed for fiber technicians who need precise mid span access on small diameter cables and buffer tubes during installation or maintenance.
What makes this tool suitable for small diameter fiber cables?
This tool features six precision shaving grooves covering cable diameters from 1.0 mm to 3.3 mm and includes a blade position indicator for accurate shaving.
At a Glance
• Mid span shaving tool for outer jackets and loose buffer tubes
• Supports cable diameters from 1.0 mm to 3.3 mm
• Six precision grooves for accurate shaving
• Compact design with tethering hole for portability
