JONARD | Fiber Power Meter & Optical Light Source Kit | #FPL-5050
JONARD TOOLS | PART #FPL-5050

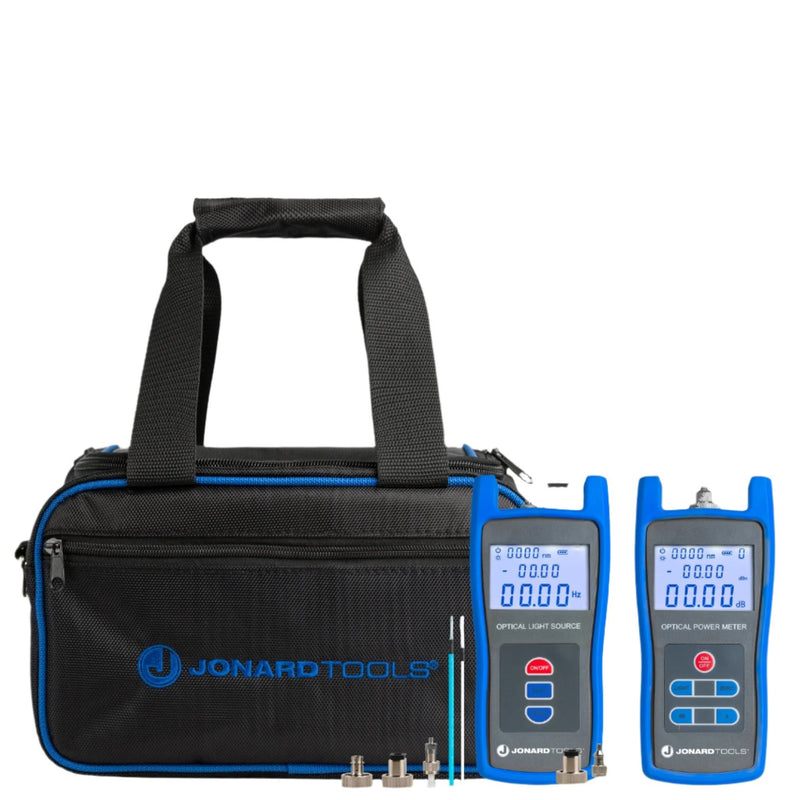

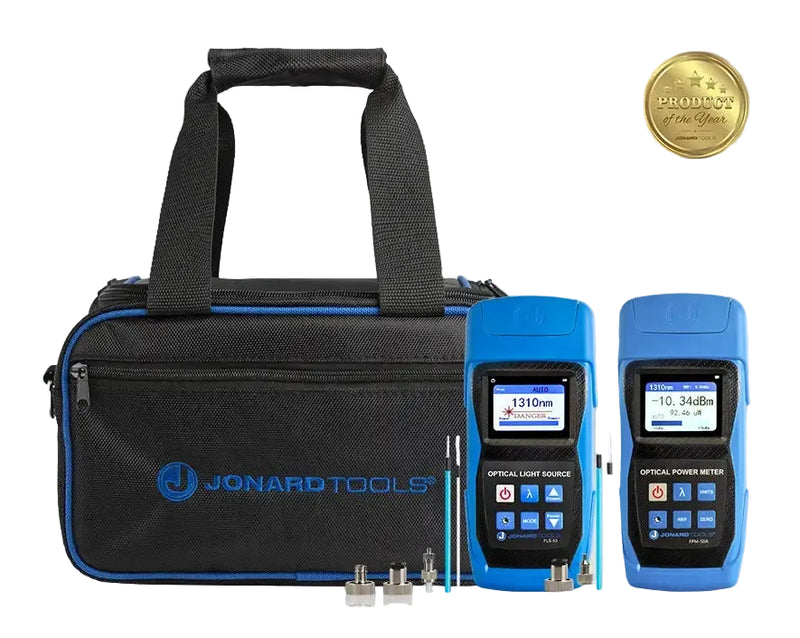

Fiber Power Meter & Optical Light Source Kit
DESCRIPTION
This tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing. The FPL-5050 Fiber Power Meter & Optical Light Source Kit includes:

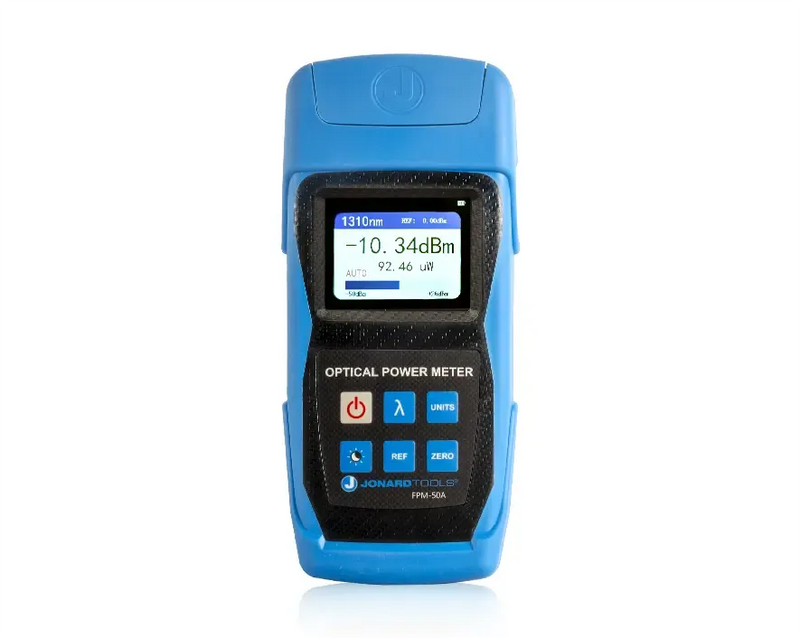

- The FPM-50A Fiber Optic Power Meter Measures both the absolute optical power and relative power loss in fiber optic cables. Power measurement range -50 to +26 dBm with FC/SC/LC Adapters.
- Measures a wide variety of wavelengths
- Determines absolute or relative power
- Intelligent backlit control reduces power consumption
- Auto-off function can be turned on or off
INCLUDES
| FPM-50A | Fiber Optic Power Meter (-50 to +26 dBm) with FC… |

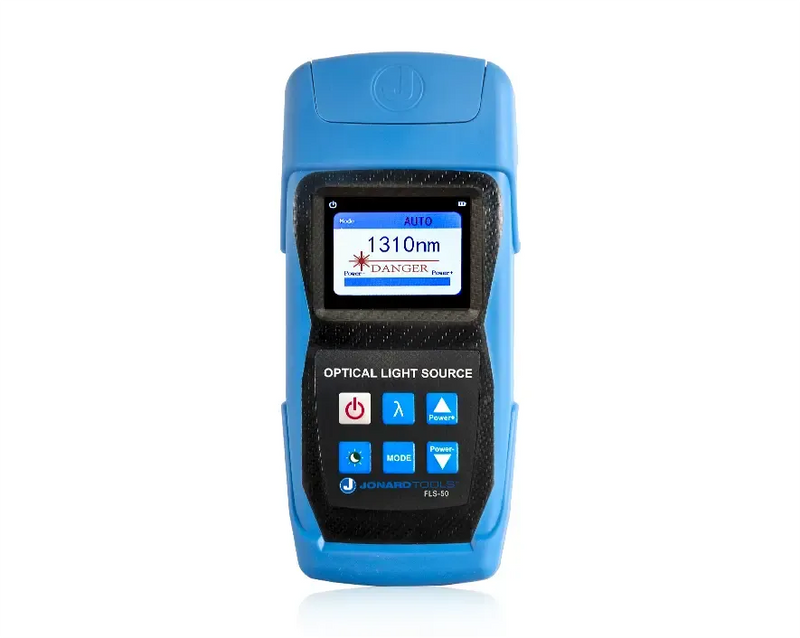

| FLS-50 | Optical Light Source with SC/ST/FC/FC-LC Adapters… |
| H-22 | Rugged Carrying Case with Straps |
DOCUMENTS
FPL-5050 Fiber Power Meter & Optical Light Souce Kit Datasheet
SPECIFICATIONS
| Connector Types |
FC, SC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
| Power Meter Wavelengths |
800 ~ 1700 |
| Light Source Wavelengths |
1310 / 1550 ±20 |
| Dimensions | 10 in x 8 in x 6 in (25.4 cm x 20.32 cm x 15.24 cm) |
| Weight | 3.5 lb (1589 g) |
| UPC # | 810053350492 |
Common Questions About the Fiber Power Meter and Optical Light Source Kit
What is the Fiber Power Meter and Optical Light Source Kit used for?
The Fiber Power Meter and Optical Light Source Kit is used to measure optical power, calculate power loss, and provide a stable light source for single mode fiber optic testing.
Who is this fiber testing kit designed for?
This kit is designed for fiber optic technicians, telecom installers, and network maintenance crews performing installation, troubleshooting, and certification testing.
What makes this kit a complete fiber testing solution?
This kit combines a power meter and light source with multiple wavelengths, modulation options, common connector adapters, and a rugged carrying case for field use.
At a Glance
• Measures optical power from -50 dBm to +26 dBm
• Provides stable 1310 nm and 1550 nm light source
• Includes FC, SC, and LC adapters for common connectors
• Comes with rugged carrying case for field testing
