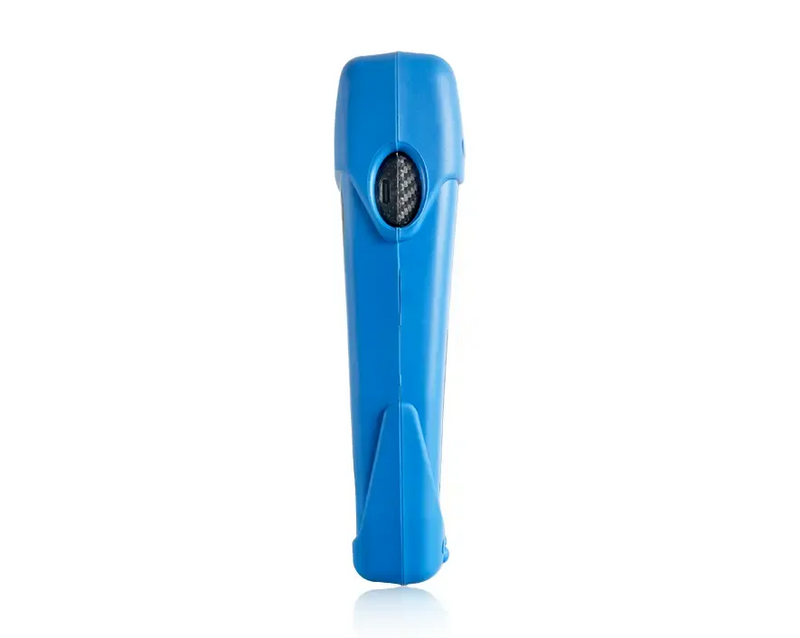

JONARD | Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters | #FPM-55
JONARD TOOLS | PART #FPM-55
Fiber Optic Power Meter with Data Storage & FC/SC/LC Adapters
DESCRIPTION

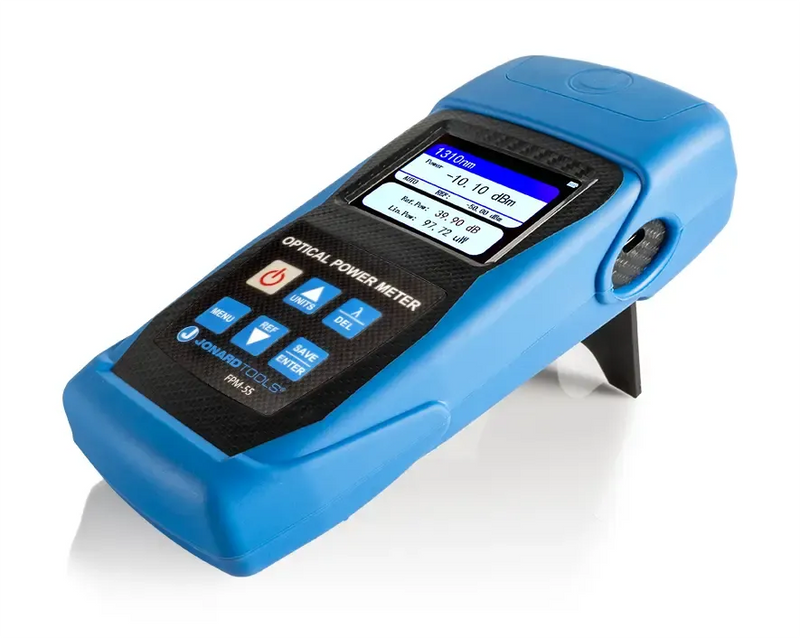

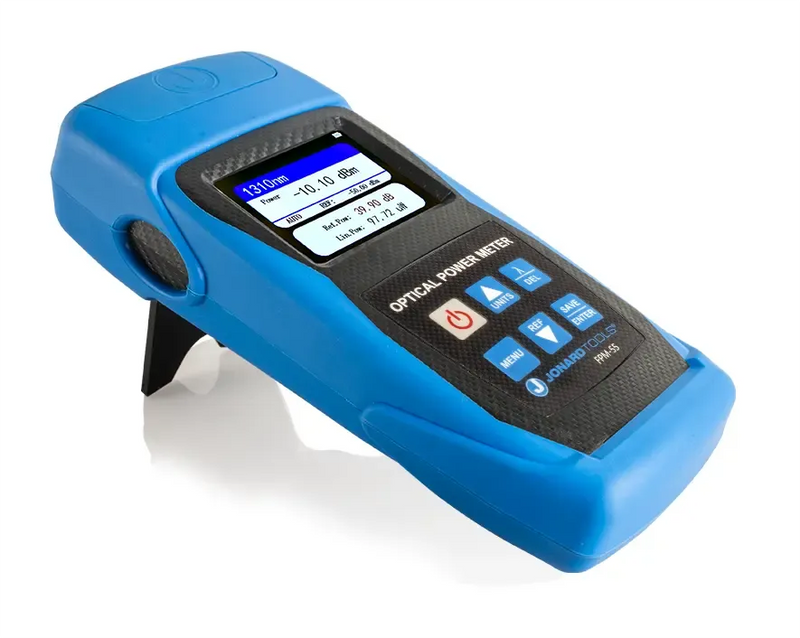

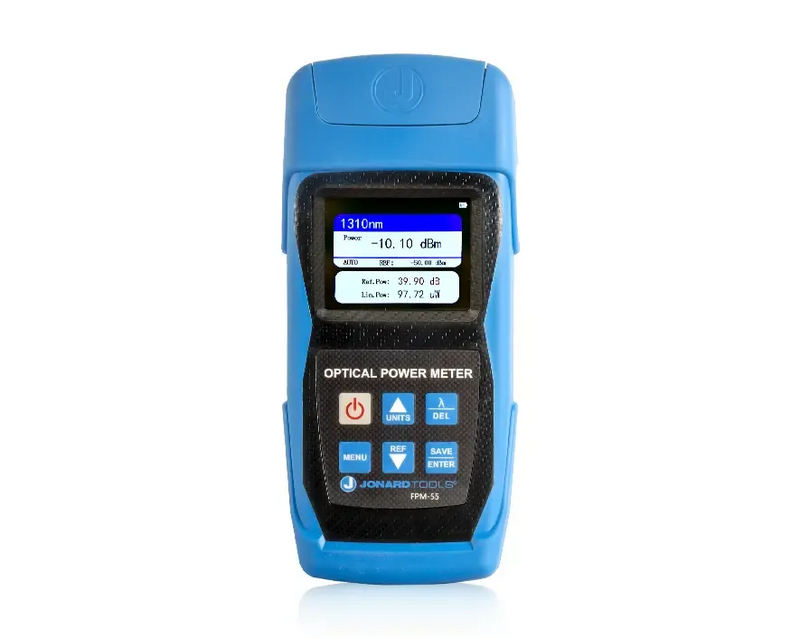

The Jonard Tools Fiber Optic Power Meter with Data Storage is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following
- Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
- Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
- Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
- Stores up to 1,000 data entries which can be downloaded via USB

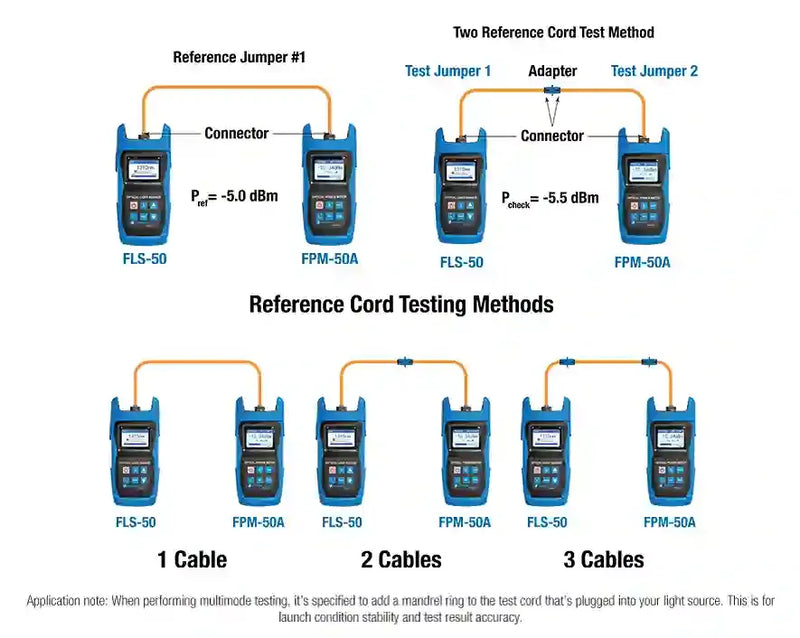

- Reference power level can be set up and stored via included software
- Auto-off function can be turned on or off

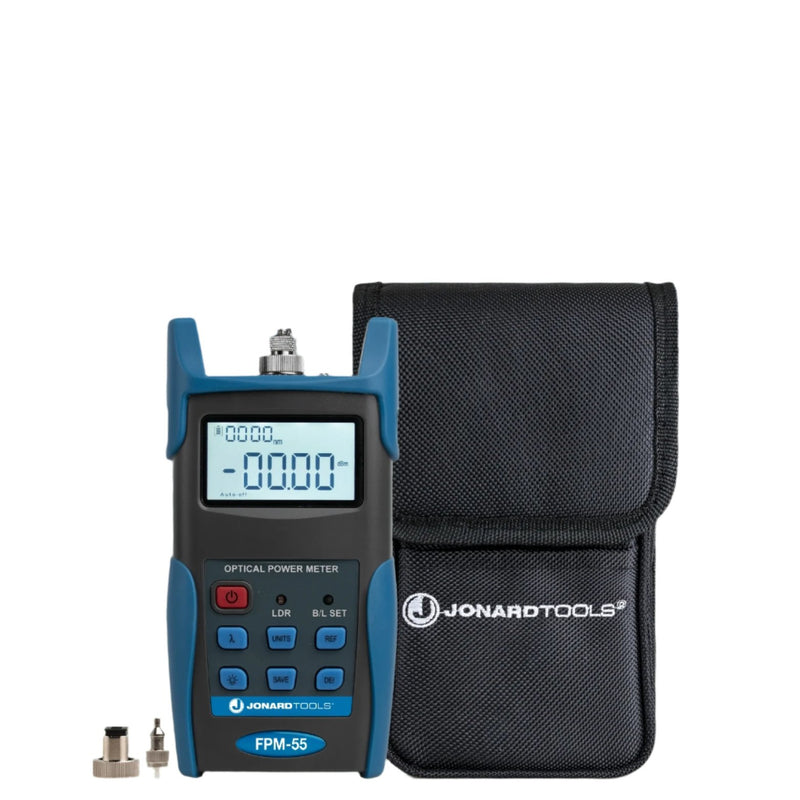

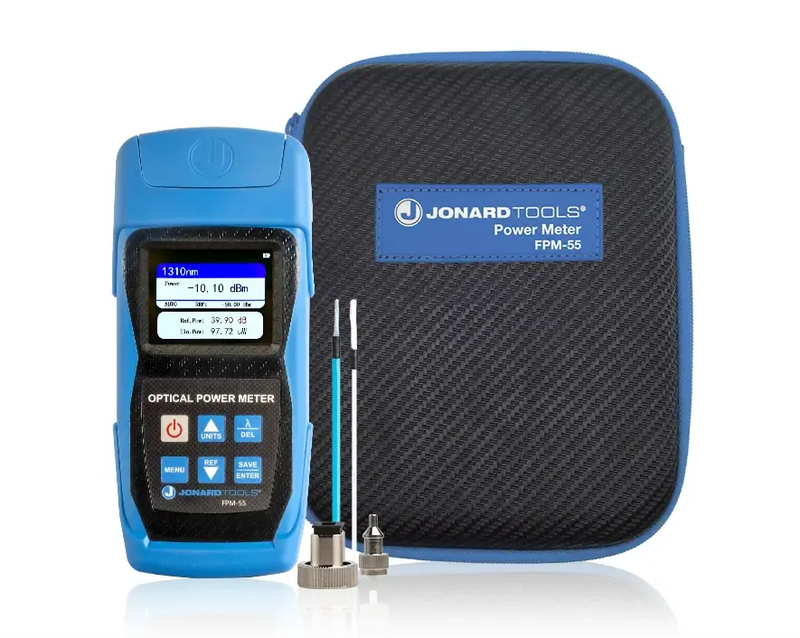

- Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only
DOCUMENTS
FPM-55 Fiber Optic Power Meter with Data Storage Datasheet
SPECIFICATIONS
| Detector Type |
InGaAs |
|---|---|
| Wavelength Test Range (nm) |
800 ~ 1700 |
| Measurement Range (dBm) |
+26 ~ -50 |
| Default Calibration Wavelength (nm) |
850/980/1300/1310/1490/1550/1625/1650 |
| Minimum Display Resolution (dB) |
0.01 |
| Linearity (dB) |
≤ 0.1 |
| Uncertainty |
± 0.15 |
| Frequency Identification (Hz) |
CW, 270 Hz, 330 Hz, 1000 Hz, 2000 Hz |
| Measurement Unit |
dBm, dB, xW |

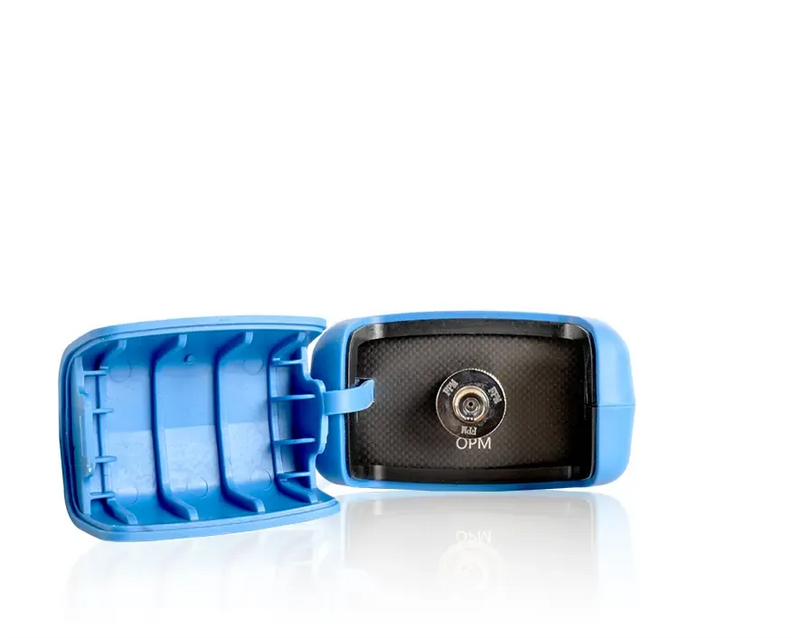

| Optical Connector |
FC, SC |
| Communication Interface |
USB-C |
| Data Storage (no. of entries) |
2000 |
| Wavelength Identification |
Yes, using our FLS-50 or FLS-55 |
| Display Size |
2.4-inch LCD |
| Power Supply |
1.5V*3 AA alkaline batteries |
| Continuous Working time |
≥50 hr |
| Auto turn-off (min) |
OFF, 10, 20, 30 |
| Operating Temperature (°C) |
-10 ~ +60 |
| Storage Temperature (°C) |
-25 ~ +70 |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 1.74 lb (789.96 g) |
| UPC # | 810053350416 |
Common Questions About the Fiber Optic Power Meter with Data Storage
What is the Fiber Optic Power Meter with Data Storage used for?
The Fiber Optic Power Meter with Data Storage is used to measure and record absolute optical power and relative power loss in fiber optic networks during testing and certification.
Who is this fiber optic power meter designed for?
This power meter is designed for fiber optic technicians, telecom installers, and network maintenance crews who need to document and store fiber test results.
What makes this power meter useful for documentation and reporting?
This power meter stores up to 1,000 test results, supports USB data download, and allows reference power levels to be set and saved for consistent testing.
At a Glance
• Measures optical power from -50 dBm to +26 dBm
• Stores up to 1,000 test results with USB download
• Supports wavelengths from 850 nm to 1650 nm
• Includes FC, SC, and LC adapters for common connectors
