JONARD | CableSaber+™ | #AST-210
JONARD TOOLS | PART #AST-210

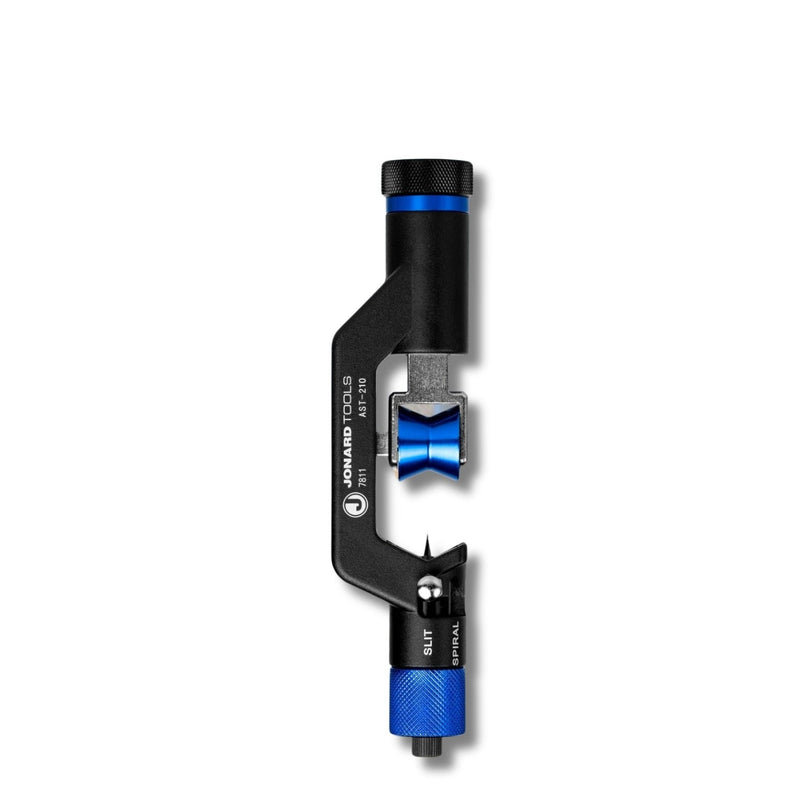

CableSaber+™
DESCRIPTION
The Jonard Tools CableSaber+™ is the ultimate tool for gaining mid-span access to armored or thick jacketed cables 4 mm-30.0 mm (0.157”-1.181”) in diameter, such as Corning's 1728 RocketRibbon® cable. This mid-span cable slit and ring tool also features the following.
- Perfect for use on Corning Optical's 144F - 1728F RocketRibbon® cables
- Adjustable blade depth up to 6.5 mm (0.256”)
- Precision steel blade will cut through the toughest materials, ensuring no damage to the internal fibers
- Blade can be set to be longitudinal for slitting or radial for ringing
- For use on cables 4 mm-30.0 mm (0.157”-1.181”) in diameter
- Aluminum shaft provides tremendous stability while slitting or ringing, preventing spiraling from occurring
- Shaft housing acts as a handle, providing greater leverage while slitting for convenience while ringing
- Thumb screw allows blade depth to be adjusted quickly by hand
- Rugged anodized aluminum and steel construction for maximum durability
Cable Size: 4 mm - 30.0 mm
DOCUMENTS
AST-210 CableSaber+™ Datasheet
AST-210 CableSaber+™ Instructions Manual
SPECIFICATIONS
| Cut Type |
Slit, Ring, Spiral |
|---|---|
| Cable Type |
Armored, Jacket |
| Cable Diameter |
4 mm - 30.0 mm (0.157”-1.181”) |
| Product Material | Anodized Aluminum |
| Product Main Color | Black |
| Handle Material | Anodized Aluminum |
| Dimensions | 7.88 in x 2.1 in x 1.01 in (20 cm x 5.33 cm x 2.57 cm) |
| Weight | 0.77 lb (349.58 g) |
| UPC # | 810053352250 |
Common Questions About the CableSaber+™
What is the CableSaber+™ used for?
The CableSaber+™ is used to gain mid span access to armored and thick jacketed fiber optic cables without damaging internal fibers.
Who is the CableSaber+™ designed for?
This tool is designed for fiber optic technicians and installers working with armored, ribbon, and high fiber count cables during mid span access and cable preparation.
What makes the CableSaber+™ effective for armored cable access?
This tool features an adjustable precision blade, rigid aluminum shaft, and slit or ring cutting options, allowing controlled access through tough cable jackets.
At a Glance
• Designed for mid span access on armored fiber cables
• Supports cable diameters from 4 mm to 30.0 mm
• Adjustable blade depth for precise jacket cutting
• Rugged aluminum construction for stability and control
