JONARD | Adjustable Round Hole Cutter w/ Vacuum Port, 8.6 inch | #AHC-19
JONARD TOOLS | PART #AHC-19
Adjustable Round Hole Cutter w/ Vacuum Port, 8.6 inch
DESCRIPTION

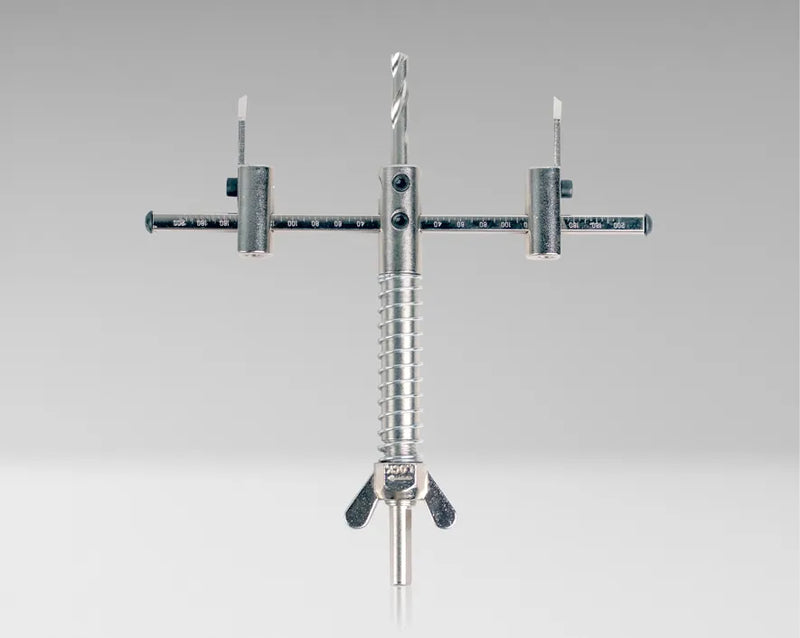

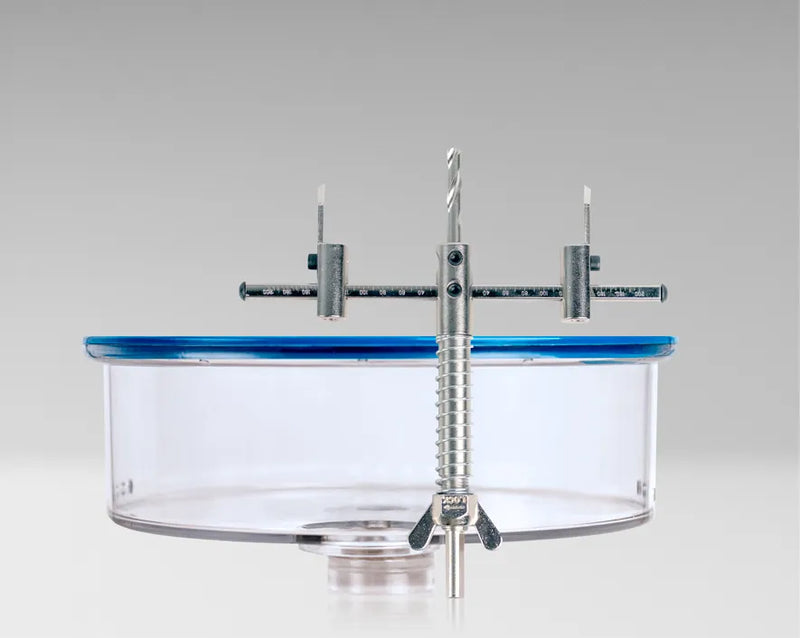

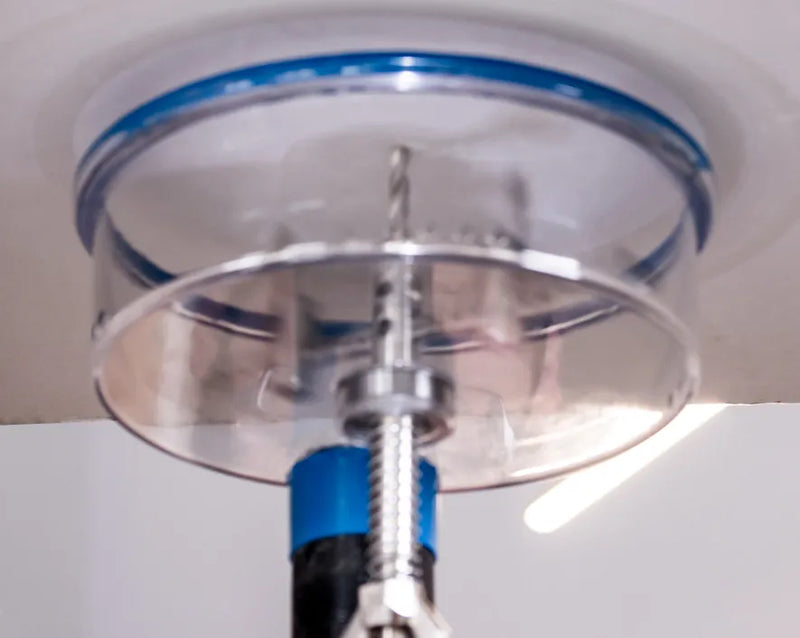

Designed for cutting round holes in ceilings, walls, and floors without making a mess, the AHC-19 is the perfect tool for installing recessed speakers, lighting, or other round objects. This adjustable hole cutter features the following.

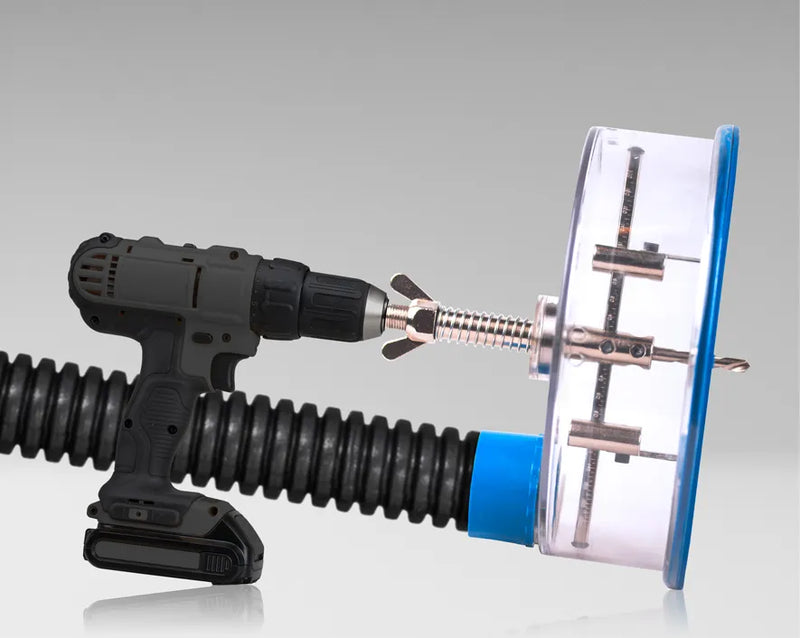

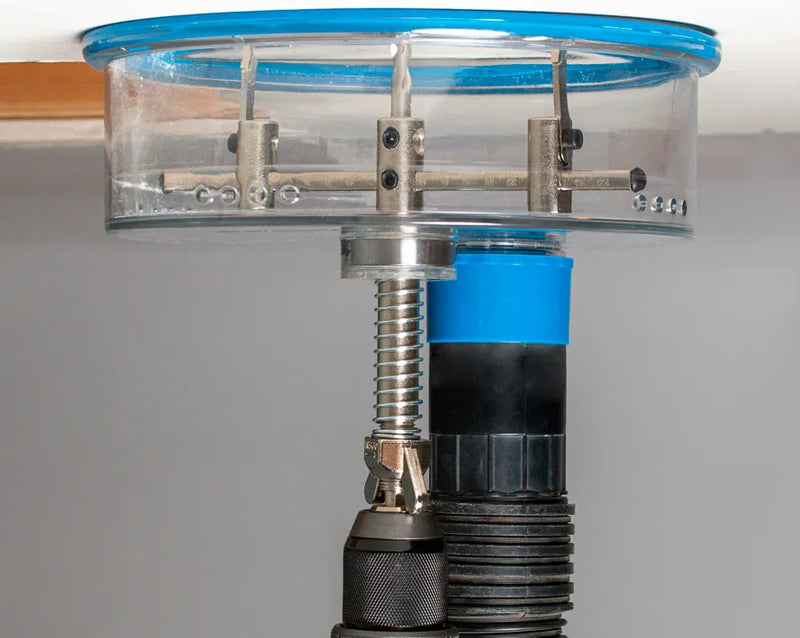

- Can be hooked up to vacuums, with 2.5" (63.5 mm) diameter hose nozzles, to suck up debris as you go
- Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16” (27 mm) thick

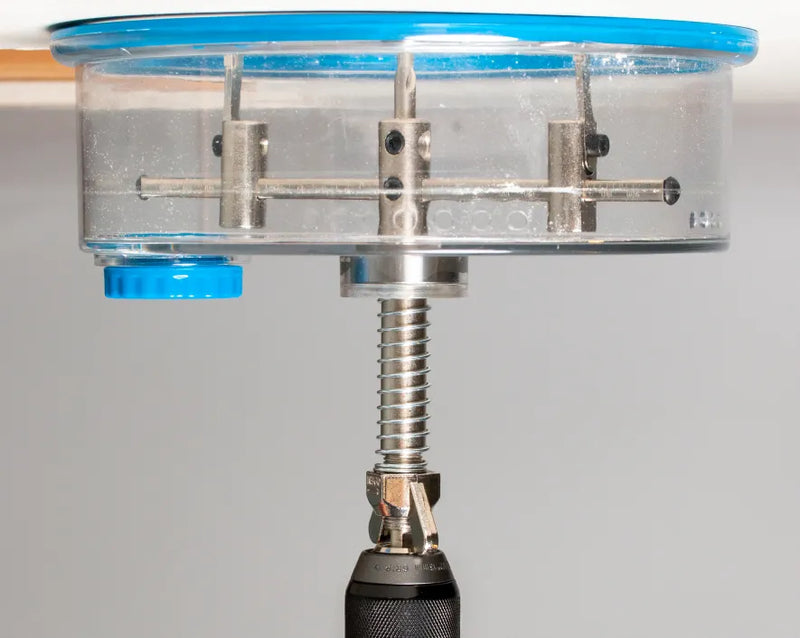

- Cutting depth is adjustable via hex locknut and compression spring
- Cuts hole sizes from 2.2" to 8.6” (56 mm - 218.44 mm) in diameter

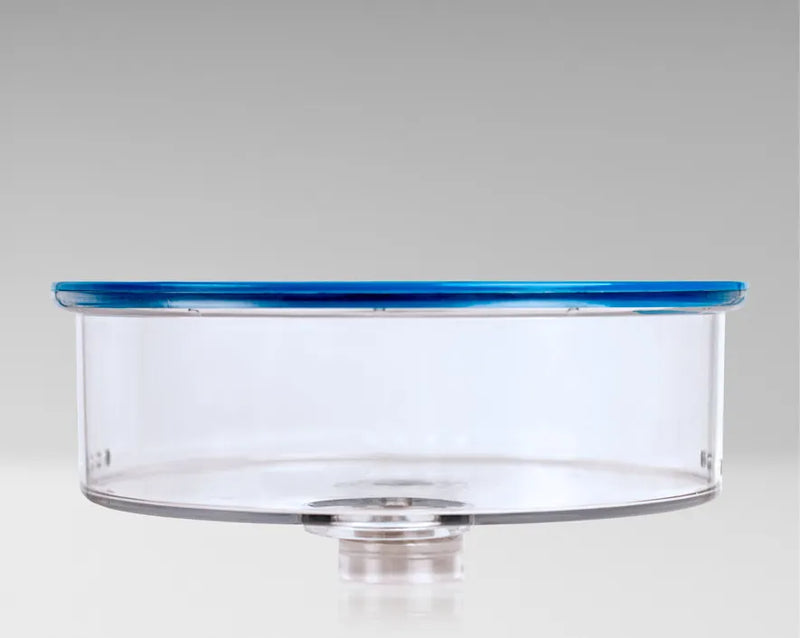

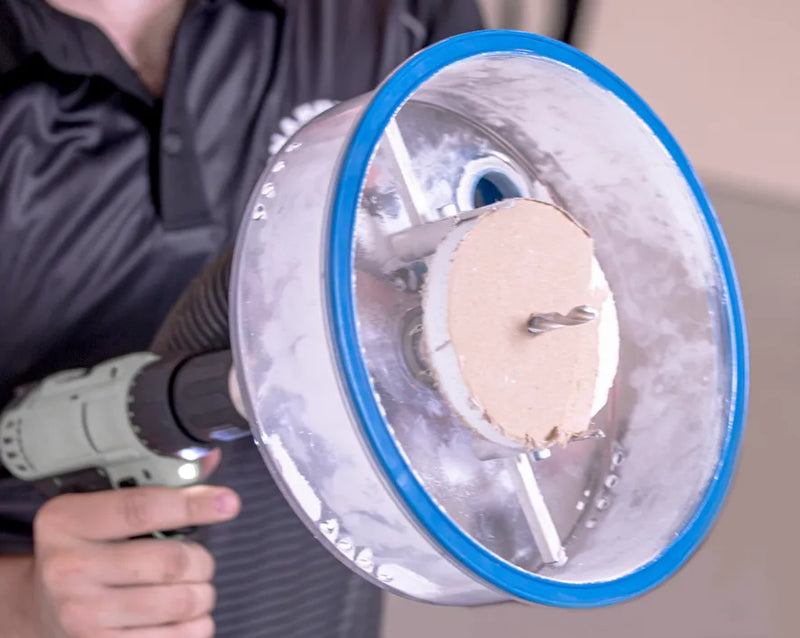

- Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
- Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
- Compression spring absorbs vibrations while cutting

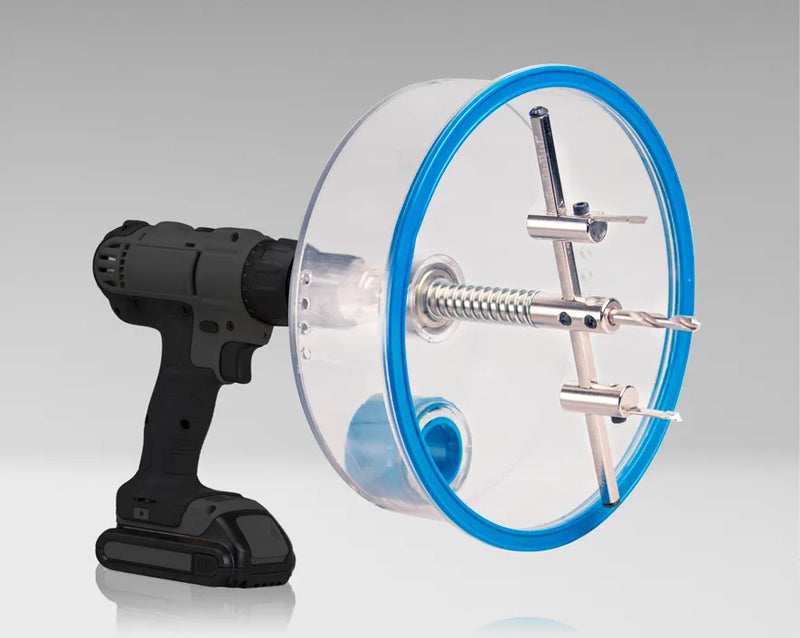

- Can be used with any variable-speed drill
- Power drill and vacuum not included with hole cutter
Product Includes:

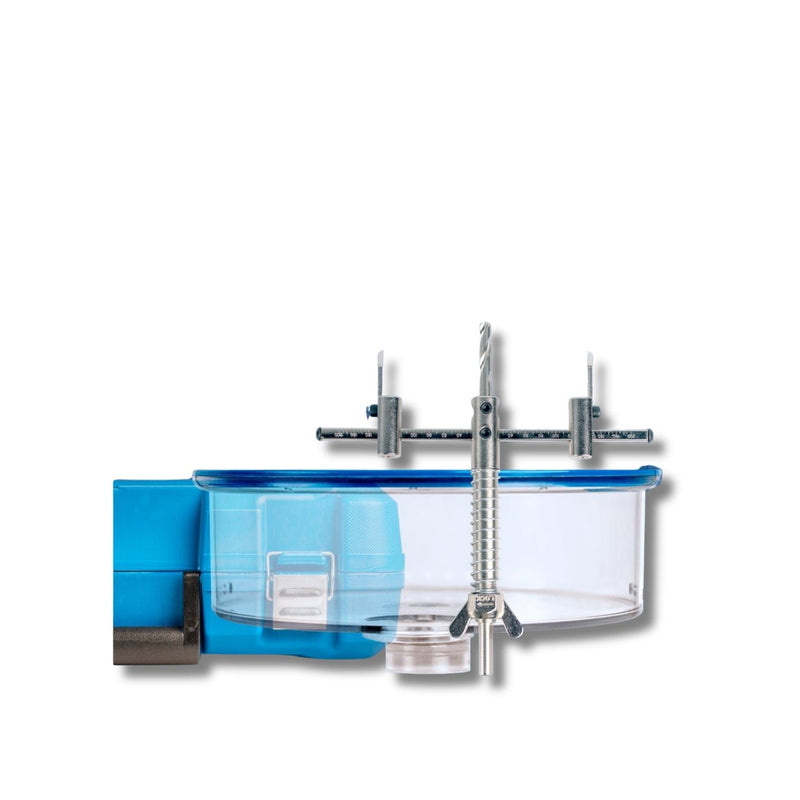

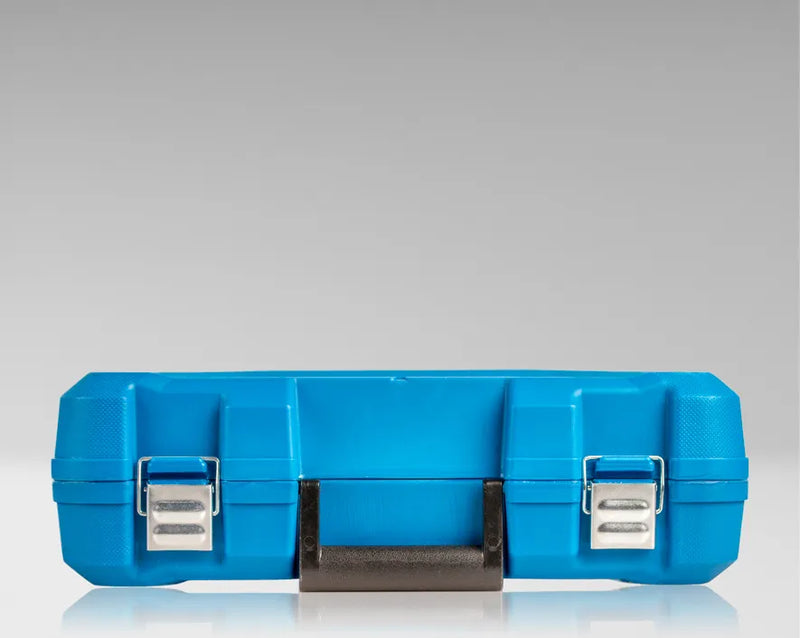

1 Cover, 1 Adjustable Hole Cutter, 1 Vacuum Port, 1 Cap, 1 Nut, 1 Set of Replacement Blades, 1 Hex Key, and a Rugged Carry Case
Additional Features: Vacuum Port
Replacement blade set sold separately (pack of 2) #ACH-10RB
DOCUMENTS
AHC-19 Adjustable Round Hole Cutter Datasheet
AHC-19 Adjustable Round Hole Instruction Manual
SPECIFICATIONS
| Cut Type |
Round Hole |
|---|---|
| Works On |
Plywood, Sheetrock, Plasterboard, Acrylic Sheet |
| Cutting Diameter Range |
2.2"- 8.6” (56 mm-218.44 mm) |
| Vacuum Port Size |
2.5" (63.5 mm) |
| Maximum Cutting Depth |
1.1" (27 mm) |
| Bit Diameter |
0.236” (6.0 mm) |
| Bit Length |
2.17” (55 mm) |
| Bit Material |
Steel |
| Hex Chuck Size/Arbor Size |
3/8" (9.53 mm) |
| Dimensions |
13" x 4.50" x 13" (33 cm x 33 cm x 11.4 cm) |
| Product Material | Steel |
| Weight | 6.28 lb (2851.12 g) |
| UPC # | 810053350171 |
Common Questions About the Adjustable Round Hole Cutter with Vacuum Port, 8.6 inch
What is the Jonard Tools AHC-19 used for?
The Jonard Tools AHC-19 is used to cut clean, precise round holes in ceilings, walls, and floors for installing recessed lights, speakers, and other round fixtures.
Who is this adjustable hole cutter designed for?
This tool is designed for electricians, low voltage installers, and contractors who need adjustable hole sizing with reduced dust and debris.
What makes the AHC-19 different from standard hole saws?
The AHC-19 offers adjustable cutting diameters, a built in vacuum port and dust shield, vibration reduction, and clean cutting without changing multiple hole saw sizes.
At a Glance
• Adjustable round hole cutter with vacuum port
• Cuts hole sizes from 2.2 inch to 8.6 inch diameter
• Compatible with variable speed drills and shop vacuums
• Dust shield and gasket reduce mess and surface damage
