JONARD | Cable Slit & Ring Tool | #JIC-4366
JONARD TOOLS | PART #JIC-4366

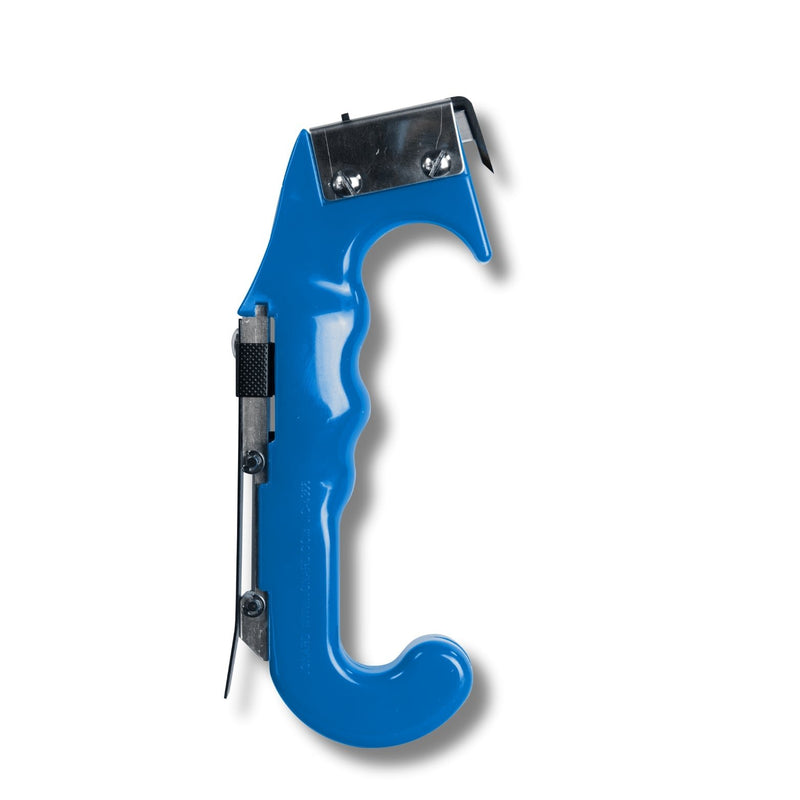

Cable Slit & Ring Tool
DESCRIPTION
Designed to slit and ring many types of tight buffers, loose tube buffers, breakout cables, and other types of jacketed fiber cables, this tool is perfect for any fiber technician. This slit and ring tool features the following.
- L-shaped hardened steel guide and blade guard are specially designed to allow the tool to slit open jackets while protecting the buffer tubes and fiber inside the cable
- The slitter blade is located at the top of the tool, has 1/4ā of the blade exposed, and is held in place by the 1/4ā L-shaped steel guide
- The Ringer portion of the tool is located on the back of the handle and uses a spring steel cable holder to hold the cable in place. This holder also has a sliding metal tensioner to increase the force on the cable and help ensure the jacket is cut all the way through
- Ringer can be used on 3/16"-1/2" (4.7 mm-12.7 mm) diameter cables and cuts through plastic, rubber, or fabric insulation sheathing with 0.031ā (0.787 mm) or 0.018" (0.457 mm) thickness
- Includes one spare ringing and one spare slitting blade
Common Questions About the JIC 4366 Cable Slit and Ring Tool
What is the JIC 4366 Cable Slit and Ring Tool used for?
The JIC 4366 is used to slit and ring tight buffer, loose tube, breakout, and other jacketed fiber cables to safely access fibers during installation and maintenance.
Who is this tool designed for?
This tool is designed for fiber technicians who work with a wide range of jacketed fiber cable types and need controlled access without fiber damage.
What makes the JIC 4366 effective for fiber jacket preparation?
The JIC 4366 features an L shaped hardened steel guide that protects internal fibers and a rear mounted ringer with adjustable tension for clean, consistent ring cuts.
At a Glance
ā¢ Cable slit and ring tool for jacketed fiber and buffer tube cables
ā¢ Designed for tight buffer, loose tube, and breakout fiber cables
ā¢ Ringer handles cable diameters from 3/16 inch to 1/2 inch
ā¢ Includes spare slitting and ringing blades for extended use
