GMP | Whisper Micro Fiber Cable Blowing Machine PLUS | #GMP89897
Whisper Micro Fiber Cable Blowing Machine PLUS (89897)
IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE
Due to varying configurations, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.Ā
PHONE:Ā 812-501-5043Ā |Ā EMAIL:Ā orders@destinysolutions.us
When emailing, please include the following information for faster processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name:
- Part Number:
- Configurations (see below):
DESCRIPTION

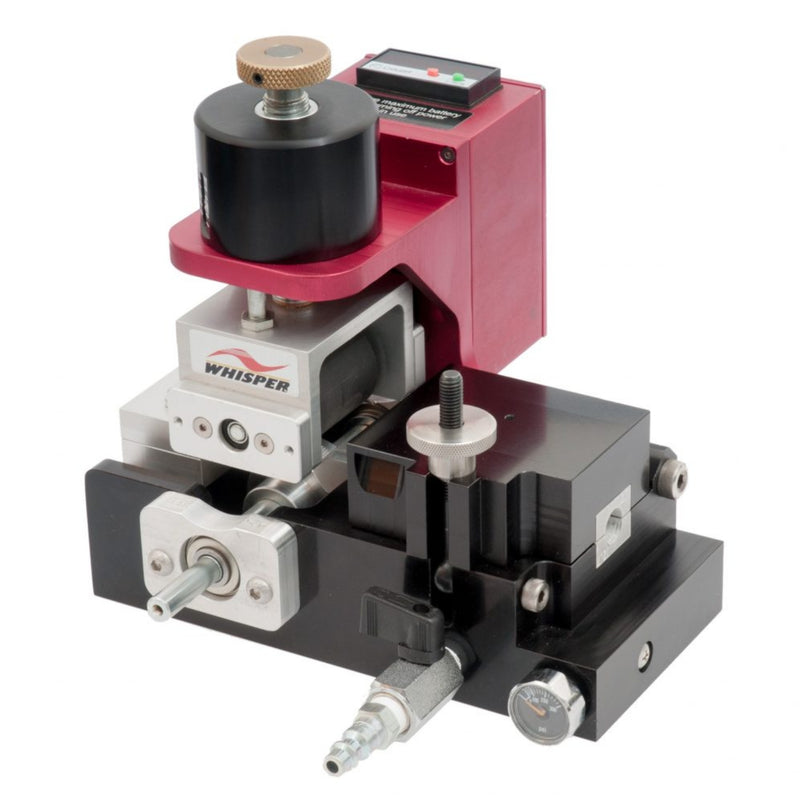

Now you can depend on the same GMP quality as our larger machines in a new smaller packageā¦ The Whisper installs microcable and its versatility saves you money. The Whisper uses compressed air to install the cable.
The rollers, powered by most types of cordless drills (not included), control the microfiber as it is propelled into the microduct. An electronic monitoring system provides read-outs of speed and distance. The design of the Whisper provides for quick and easy component changes for different cable or duct sizes. Its compact size and portable maneuverability make the Whisper ideally suited for external or in-building use. The Whisper uses compressed air to install the cable.Ā
- Installs cable diameters of 3 to 8.5mm.
- Accommodates microduct sizes of 4 to 18mm.
- Uses most any variable speed drill as a power source.
- Lightweight, durable construction with precision machined parts.
- Single person operation.
- Digital cable speed and length monitoring.
- Integral air Valve and Pressure gauge.
- Low maintenance.
WHAT'S INCLUDED WITH YOUR WHISPER PLUS
- Whisper Cable Blowing Machine
- (2) 9V Lithium Batteries
- Tube collet and clamp assembly for (3) of the most popular tube sizes
- Cable seal collet assembly for (3) of the most popular seal collet assemblies
- ToolkitĀ
- Travel case
- Manual
SPECIFICATIONS
- Cable Diameter:Ā 3 to 8.5mm and various manufacturers flat drop
- Tube Size (Outside Dia):Ā 4 to 18mm
- Cable Speed (Adjustable):Ā 0-300 ft/min (0-90m/min)
- Max Air Pressure:Ā 220 psi (15 Bar)
- Power Requirement:Ā Variable Speed Drill
- Width:Ā 8.1 in. (206mm)
- Length:Ā 9.7 in. (246mm)
- Height:Ā 8.5 in. (216mm)
- Weight:Ā Approx. 12 lbs (5.4Kgs Approx.)
