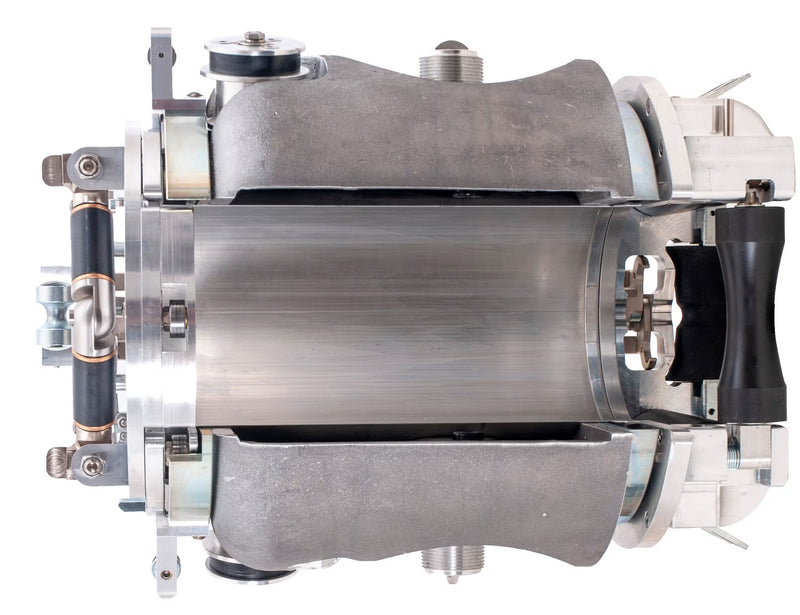

Super G Large Capacity Cable Lasher (10505)

DESCRIPTION

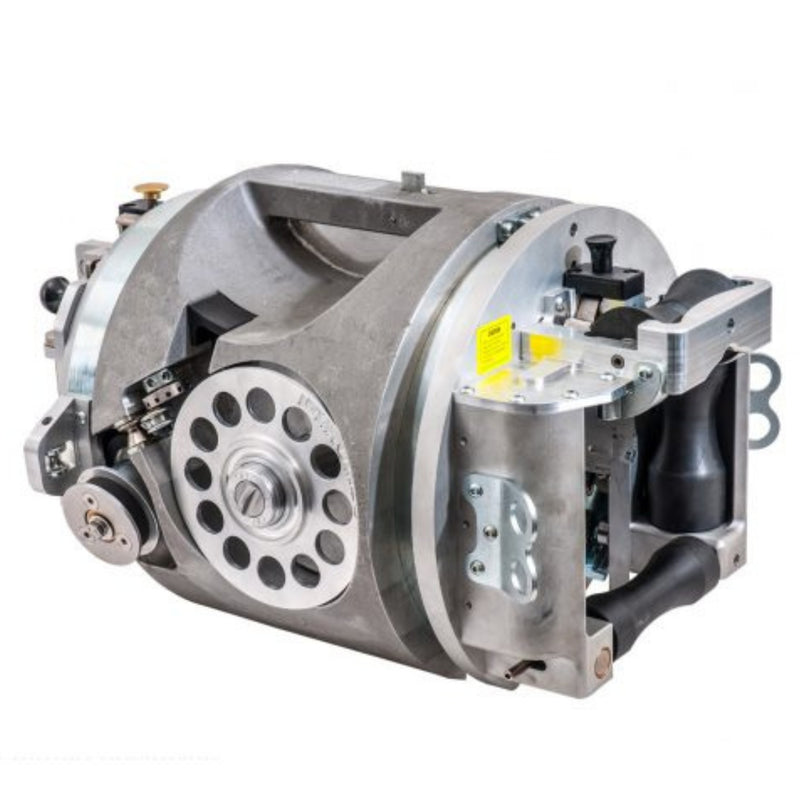

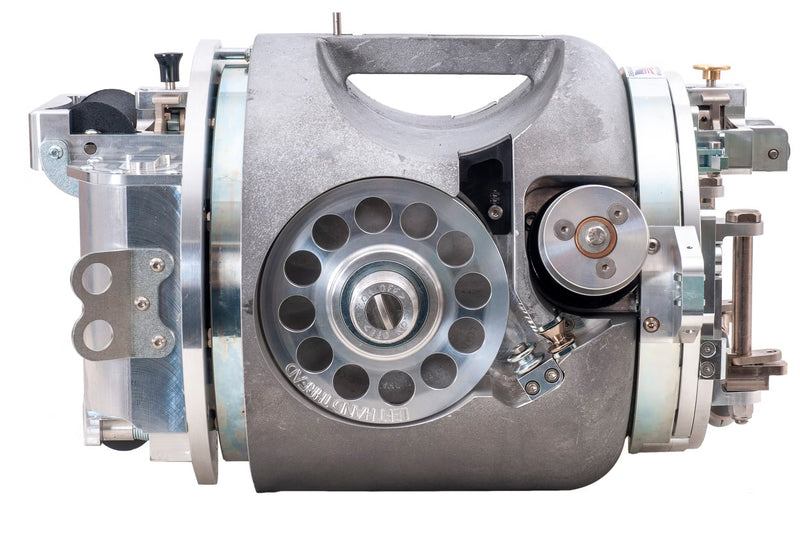

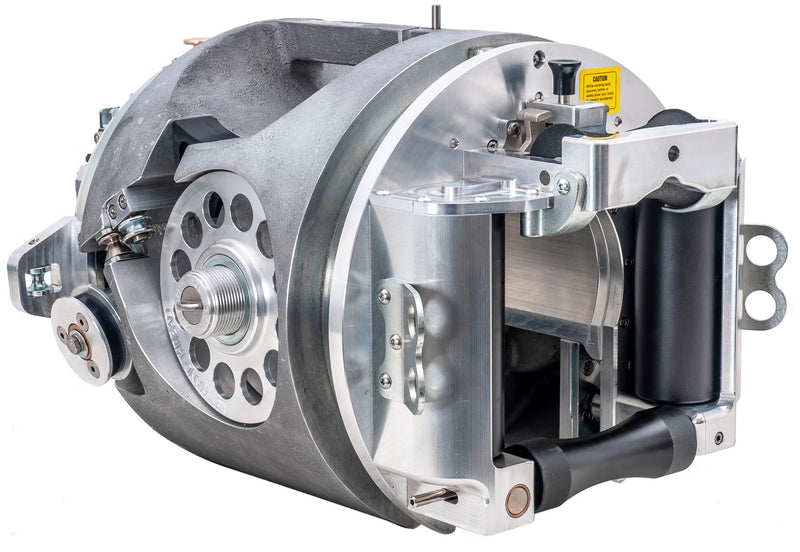

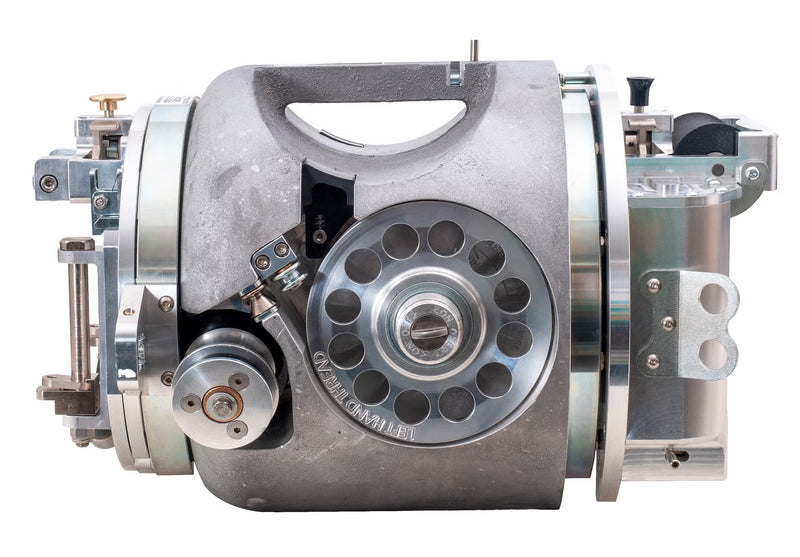

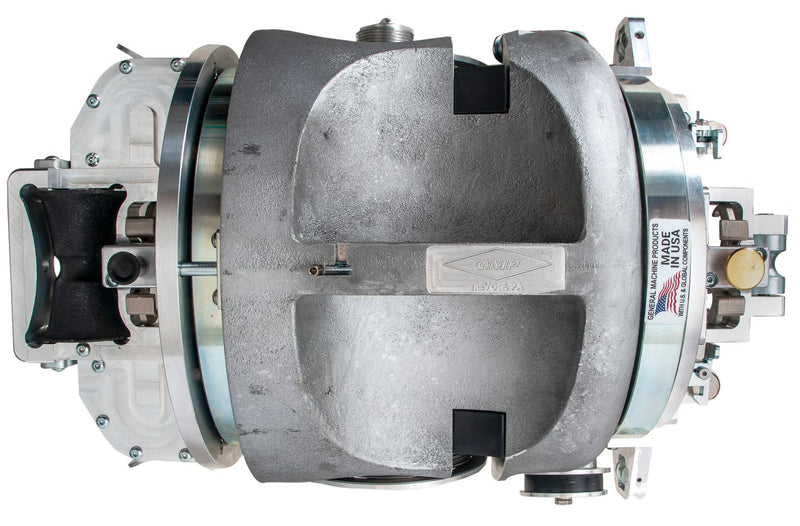

The newest and largest of the GMP Lashers, this unit is designed to lash a large single or a combination of aerial cables to a supporting strand. It can be used for new installs or with existing cables in place

• Lashes cable from about 2-1/2 to 5-1/4 in. outside diameter or multiple cables up to 5-3/4 in. combined outside diameter

• Lashes on strand from 11/32 to 1/2 in. diameter with one or two spiral wrappings of .045, .061 or .065 in. diameter stainless steel wire

• Nominal spacingbetween wraps is approximately 18-19 in. (46 to 48cm )

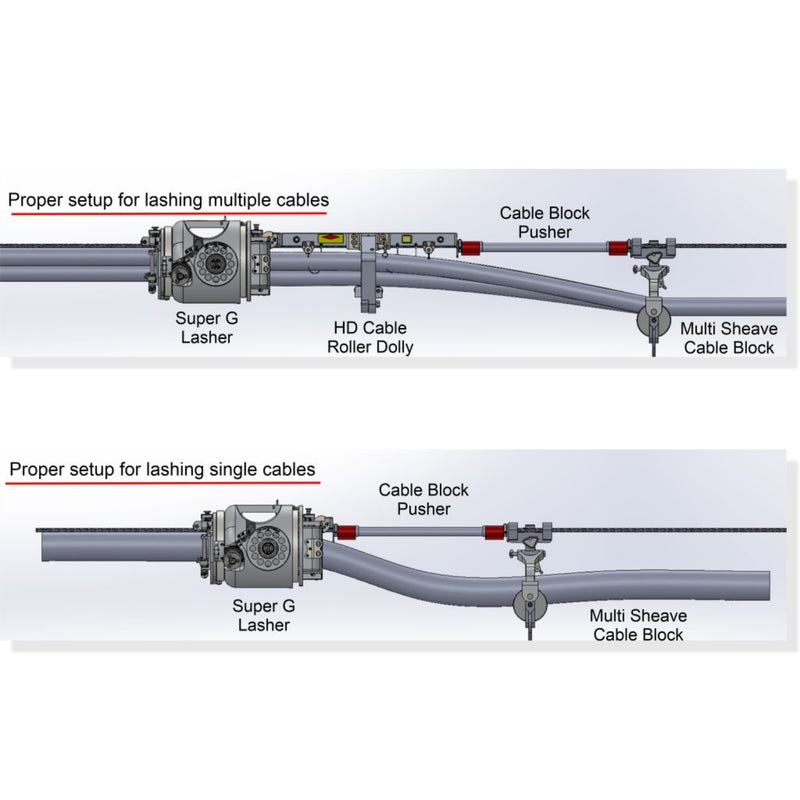

• Parallel-pull capability overcomes most terrain obstacles

• Wire tension constant regardless of amount on spool

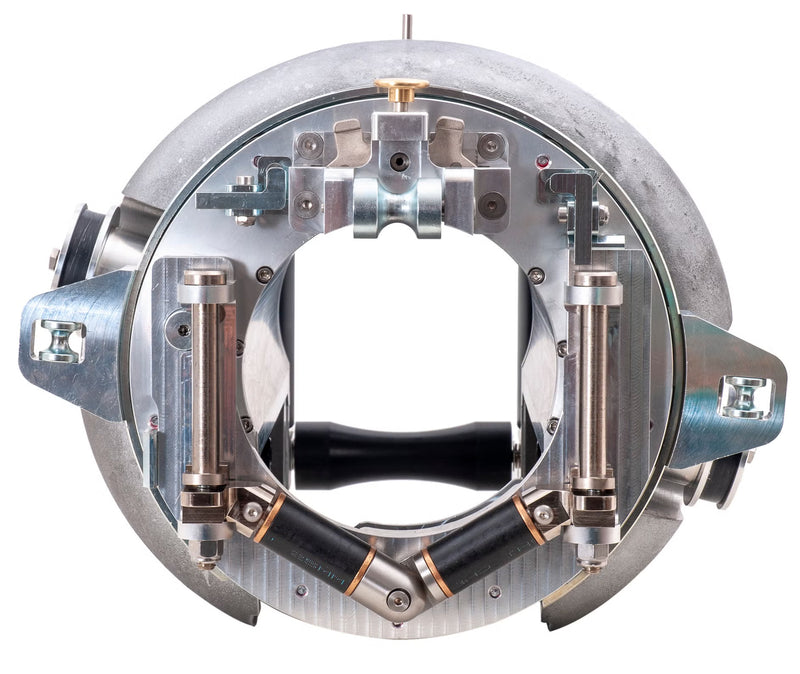

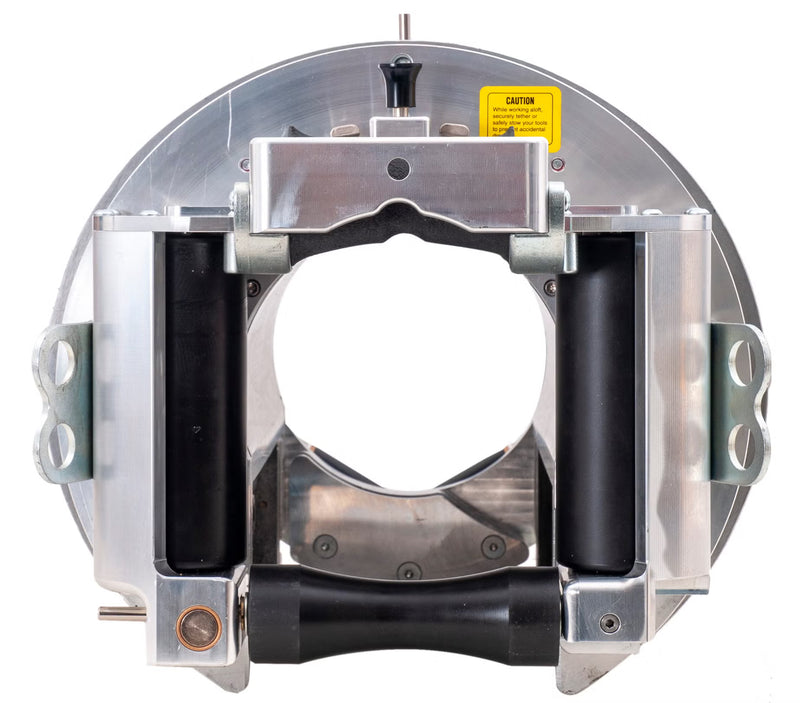

• Front rollers guide cables through the machine

• All smooth edges throughout help protect against cable damage

• Ergonomic design makes it easy to handle

• Each lasher includes a 6 ft. bridle rope assembly with snap hooks, an information and operations manual and a heavy duty storage chest

• Comes with 2 extra reels for easy loading in the field

P/N 10505   SuperG Large Capacity Cable Lasher   Weight: 58 lbs. (26.3 kg) without case or wire
