GMP | ReelRunner™ | #50000

ReelRunner™ (50000)

DESCRIPTION

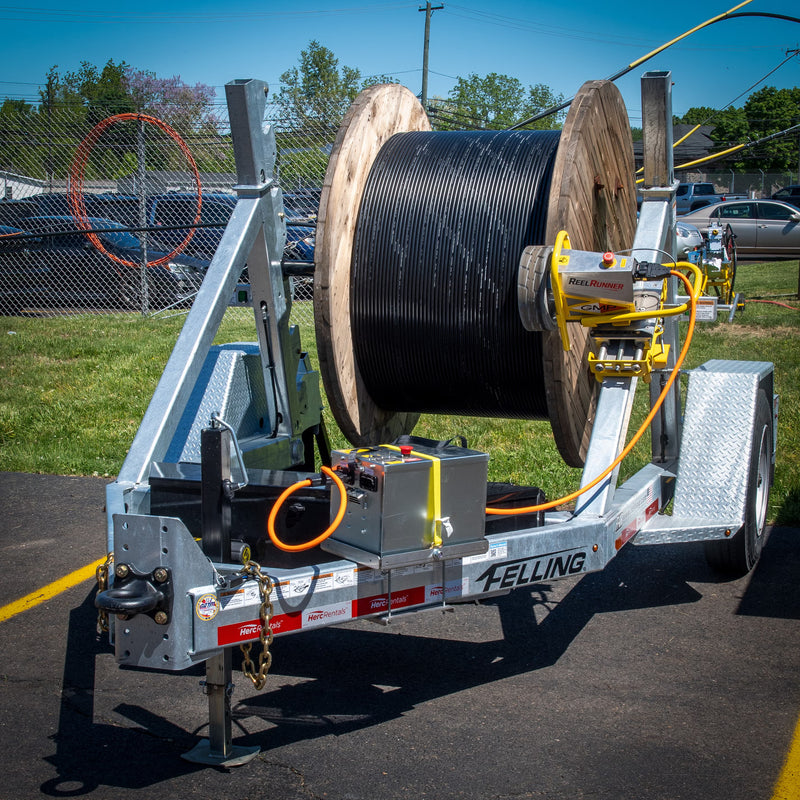

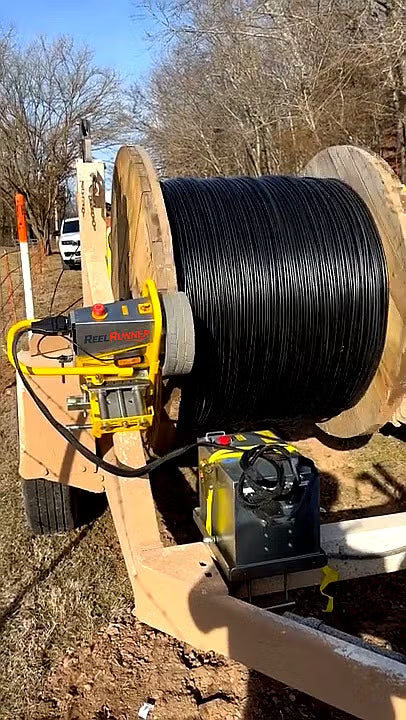

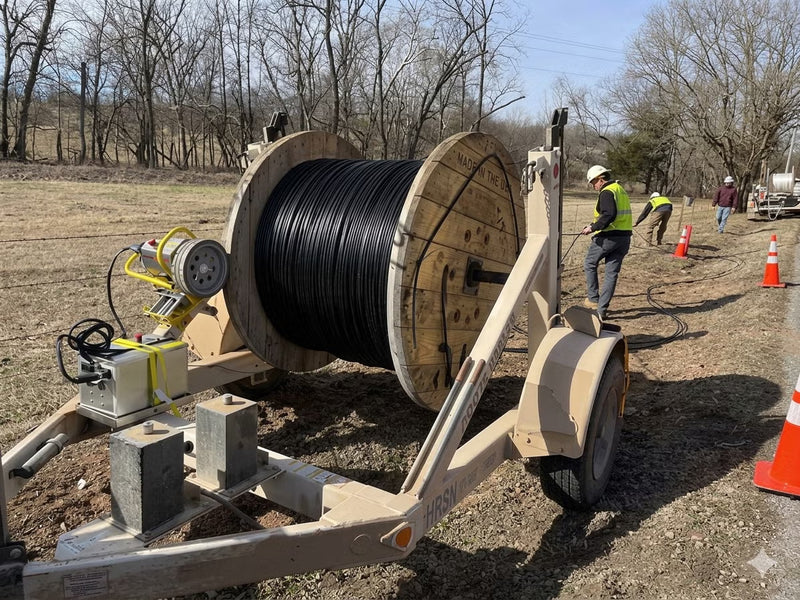

ReelRunner™ is a powerful, cost-effective solution that instantly transforms virtually any standard non-powered cable reel trailer into a high-efficiency powered reel system—eliminating the need for expensive hydraulic cable reel trailers.

Move Cable Faster. Work Smarter

• Save thousands per month in labor costs
• Same crew-more output-less fatigue
• One unit shared across multiple trailers
• Attaches to virtually any non-powered cable trailer

• 12" horizontal travel

• Dual-side mounting

• Force indicator ensures optimal traction

• Durable airless wheel – no flats, no downtime

• 48V / 40Ah battery system for full-day runtime

• Wireless remote for safer operation
• Quiet Operation

SPECIFICATIONS

Drive System Type: Battery-powered reel drive system
Primary Application: Cable payout from non-powered reel trailers
Secondary Application: Spooling loose cable back onto reel
Battery Type: LiFePO4
Battery Size: 48V, 40Ah
Charge Time: Approximately 5 hours with 8A charger
Maximum Wheel Speed: Up to 125 RPM with 12 in drive wheel
Approximate Traction Force: 125 lbs
Trailer Compatibility: Structural tubing from 2 in x 2 in to 2 in x 6 in; angle iron members may be adapted with blocking
Reel Diameter Capacity: Up to 8 ft diameter
Reel Construction: Suitable for steel or wood flanged reels
Reel Weight Capacity: Capable of driving reels weighing several thousand pounds depending on reel diameter, load distribution, shaft condition, and related field conditions
Motor Assembly Position Range: 3 in to 12 in from inside edge of trailer frame
Operating Noise: Nearly silent operation
Runtime: Application dependent; field use has demonstrated full-day operation on a single charge in many installations

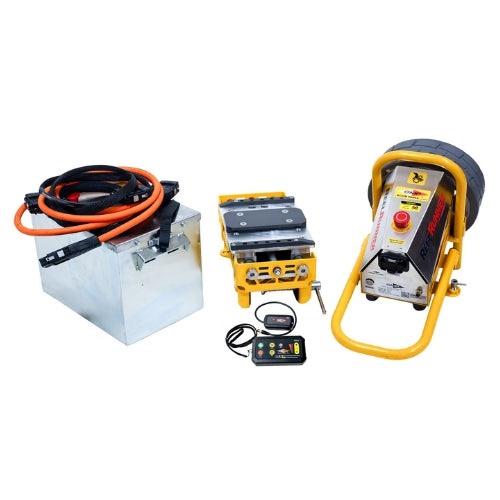

Complete Kit Includes (P/N 50000)

Motor Assembly P/N 01270
Mounting Base Assembly P/N 01302
Battery P/N 71492
Battery Cord P/N 71494
Charger P/N 71495

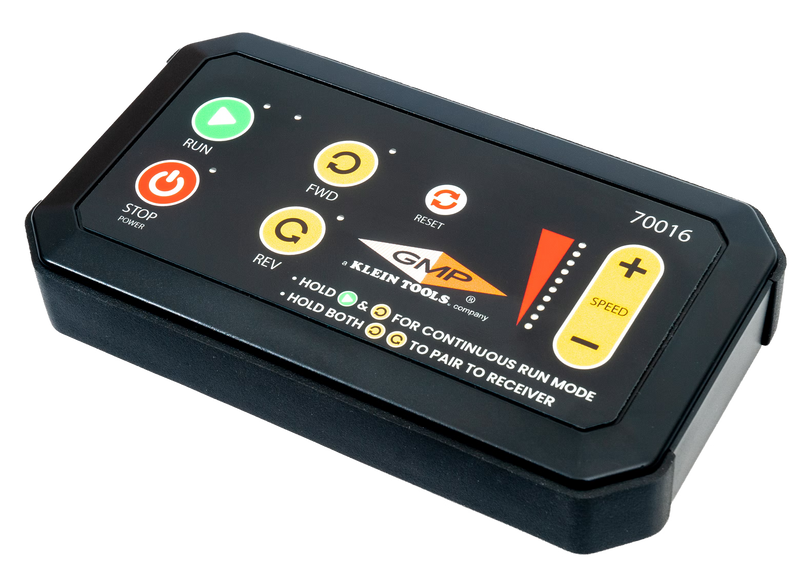

Wireless Remote Transmitter P/N 70016
Wireless Receiver P/N 70017
