GMP | Reel Buck W/42" Spindle Bar | #GMP71669

by GMP
Original price $375.00 - Original price $375.00
Original price $375.00
$654.09
$654.09 - $654.09
Current price $654.09

GMP | PART #GMP71669

Reel Buck W/42" Spindle Bar (71669)

IMPORTANT NOTICE: REQUIRES A CUSTOM QUOTE

Due to varying freight fees, this product cannot be purchased directly from our online store. For a customized quote, please contact us directly via phone or email.

PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us

When emailing, please provide the following details for quicker processing:

  • First & Last Name:
  • Company Name (if applicable):
  • Shipping Address:
  • Part Name & Number:

DESCRIPTION

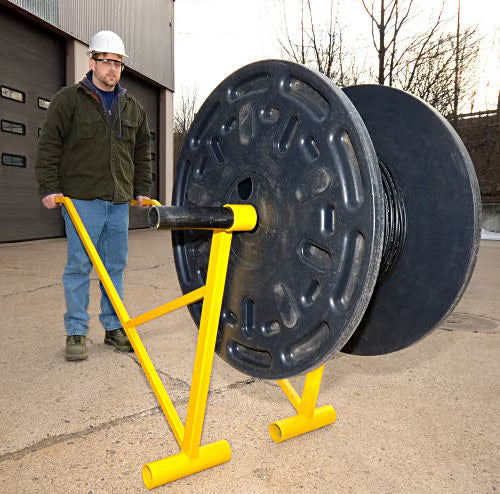

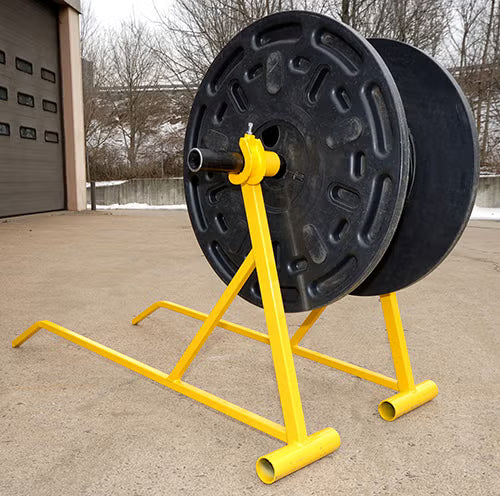

A tough, easily maneuvered and portable frame that’s ideal for supporting any reel up to 50 in. (1270mm) in diameter. Order P/N 71669 for 36 in. (914mm) wide or P/N 71678 for 54 in. (1372mm) wide reels. Order P/N 71679 for large diameter reels up to 84 in. (2134mm) in diameter.

  • Two welded, rectangular steel members make up the frame

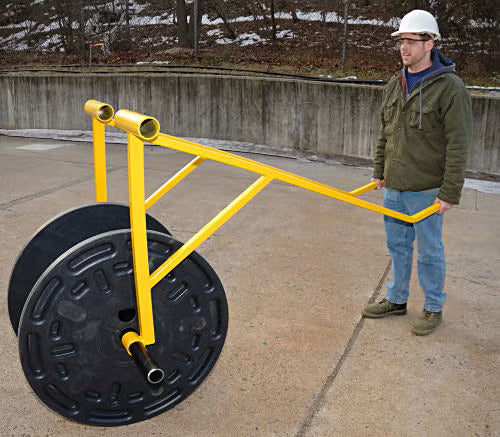

  • Designed for one-person handling
  • Will accommodate the Corning FlexNap™ cable reels
  • The frame is protected with a durable powder coat finish to prevent corrosion
  • P/N 71669/71678 have a 1200 lb. (544kg) load capacity. P/N 71679 has a 500lb. (227kg) load capacity
  • 2 1/2″ diameter spindle bar included

Ordering Information

P/N Description Weight
71669
Reel Buck with 42 in. Spindle Bar for
36 in. wide drum/50 in. diameter drum
80 lbs. (36kg) Including spindle bar
71678 Reel Buck with 60 in. Spindle Bar for
54 in. wide drum/50 in. diameter drum
90 lbs. (41kg) Including spindle bar
71679 XL Reel Buck with 60 in. Spindle Bar for
54 in. wide drum/84 in. diameter drum
100 lbs. (45kg) Including spindle bar
