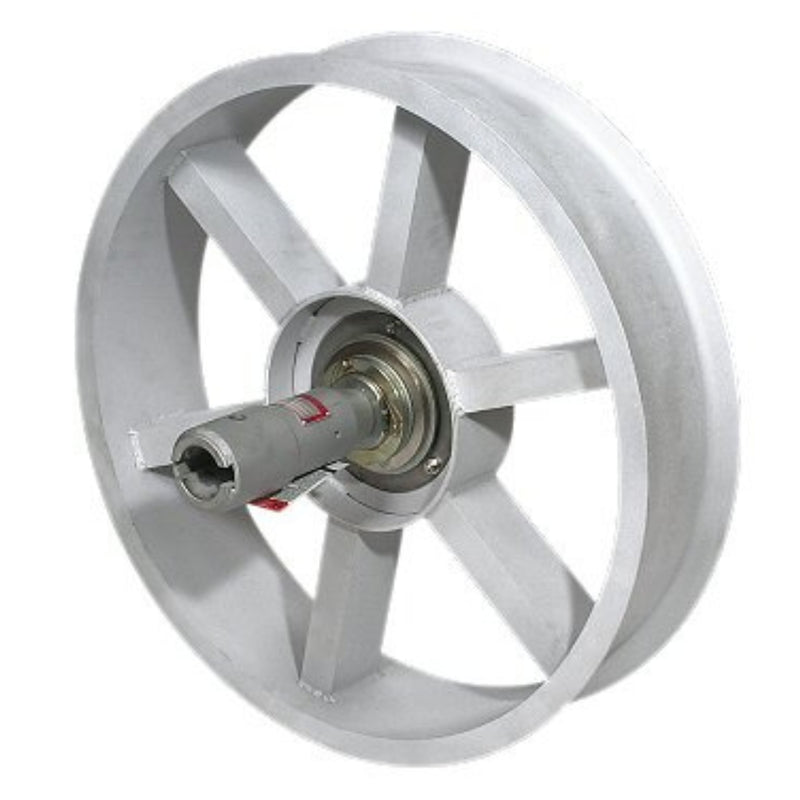

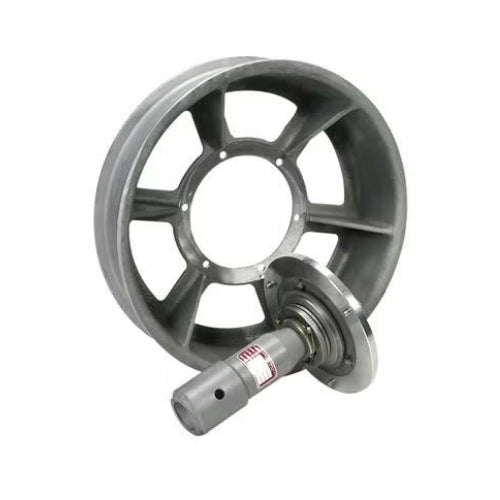

GMP | Mid-Assist Fiber Puller Capstan | #GMP71474

by GMP
Original price $3,620.86 - Original price $3,620.86
Original price
$3,620.86
$3,620.86 - $3,620.86
Current price $3,620.86
GMP | PART #GMP71474



IMPORTANT NOTICE: REQUIRES A CUSTOM QUOTE

Due to varying freight fees, this product cannot be purchased directly from our online store. For a customized quote, please contact us directly via phone or email.

PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us

When emailing, please provide the following details for quicker processing:

  • First & Last Name:
  • Company Name (if applicable):
  • Shipping Address:
  • Part Name & Number:

DESCRIPTION

MID-ASSIST FIBER OPTIC CAPSTANS FOR THE GMP HYDRAULICALLY LIMITED CABLE PULLER

GMP offers you a choice of several lightweight aluminum alloy units that are designed to work with the Hydraulically Limited Cable Puller. These capstans are designed with direct drive without a slip clutch. They also can be mounted on a standard 2 7/16 in. (62mm) diameter drive shaft with either a bayonet or a cross pin type of connection.

P/N Working Diameter Working Width Weight
15470 25 in. (635mm) 5 in. (127mm) 86 lbs. (39kg)
70472 32 in. (813mm) 7.5 in. (190mm) 86 lbs. (39kg)
71474 42 in. (1067mm) 7.5 in. (190mm) 110 lbs. (50kg)
